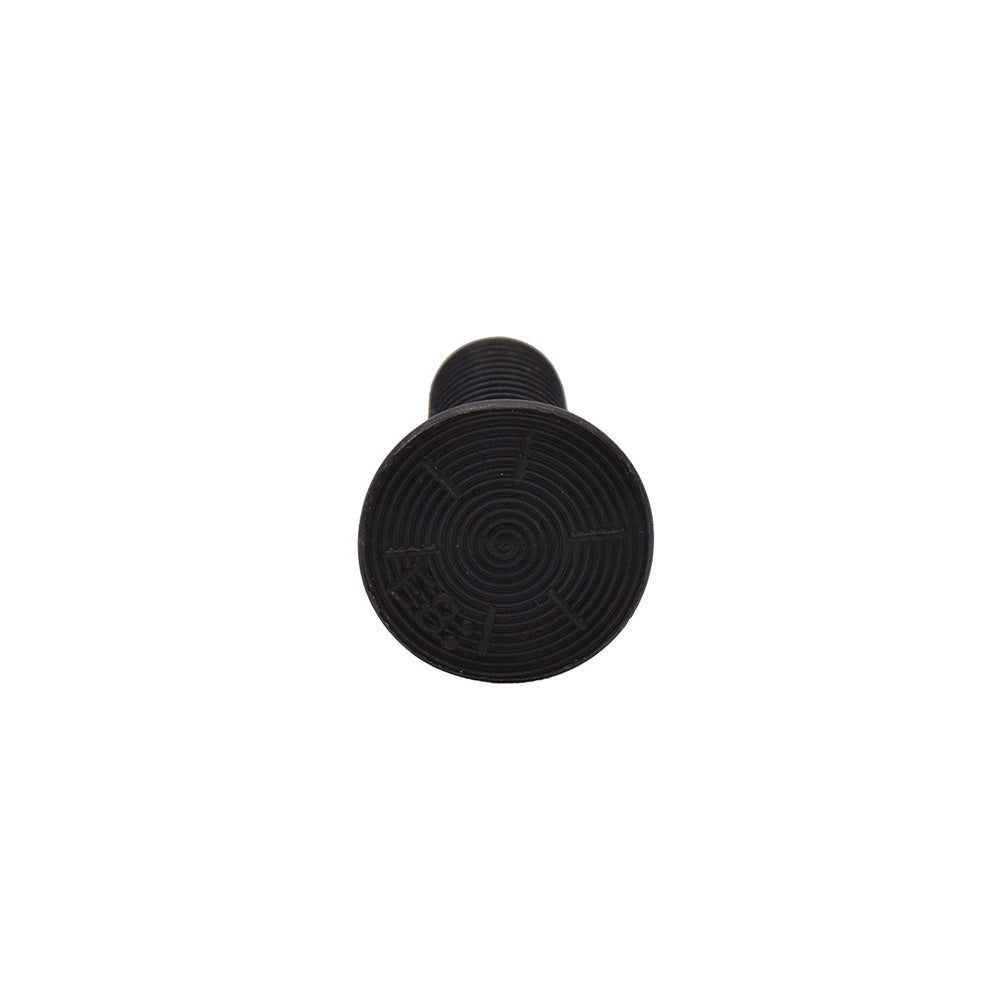

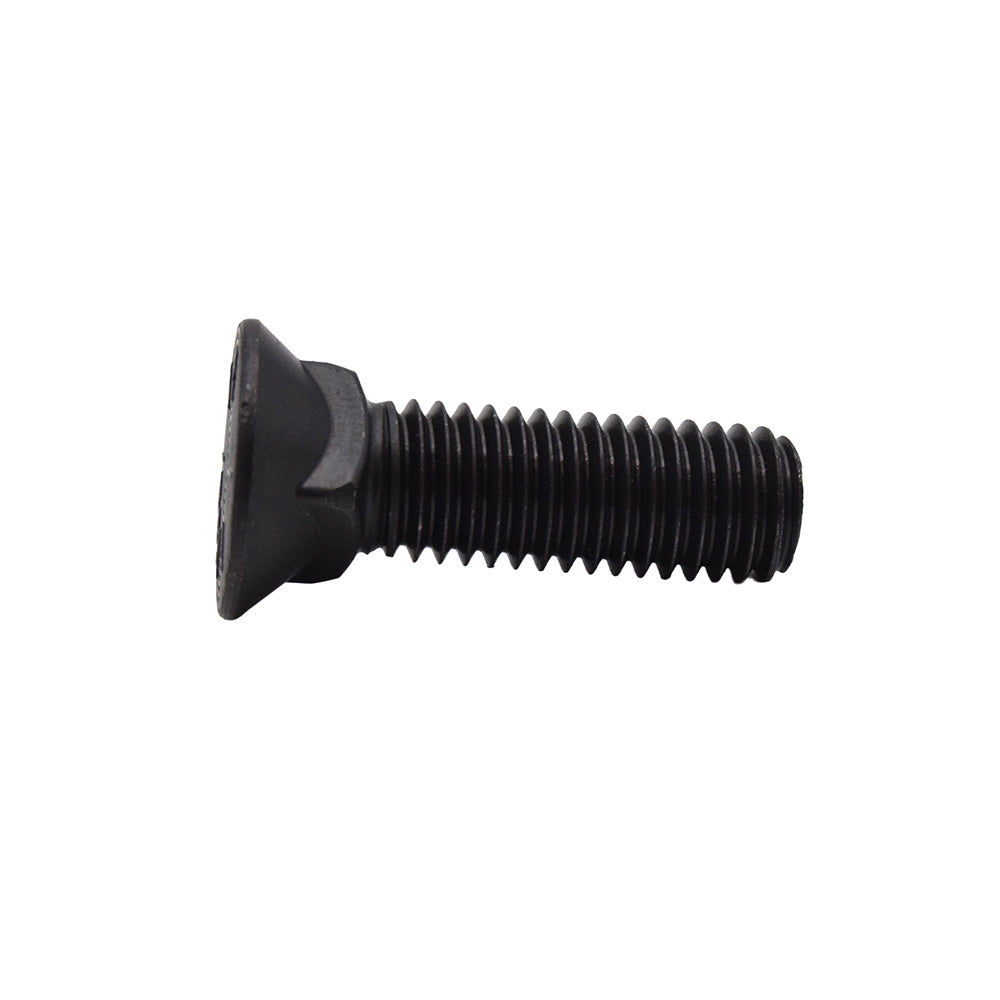

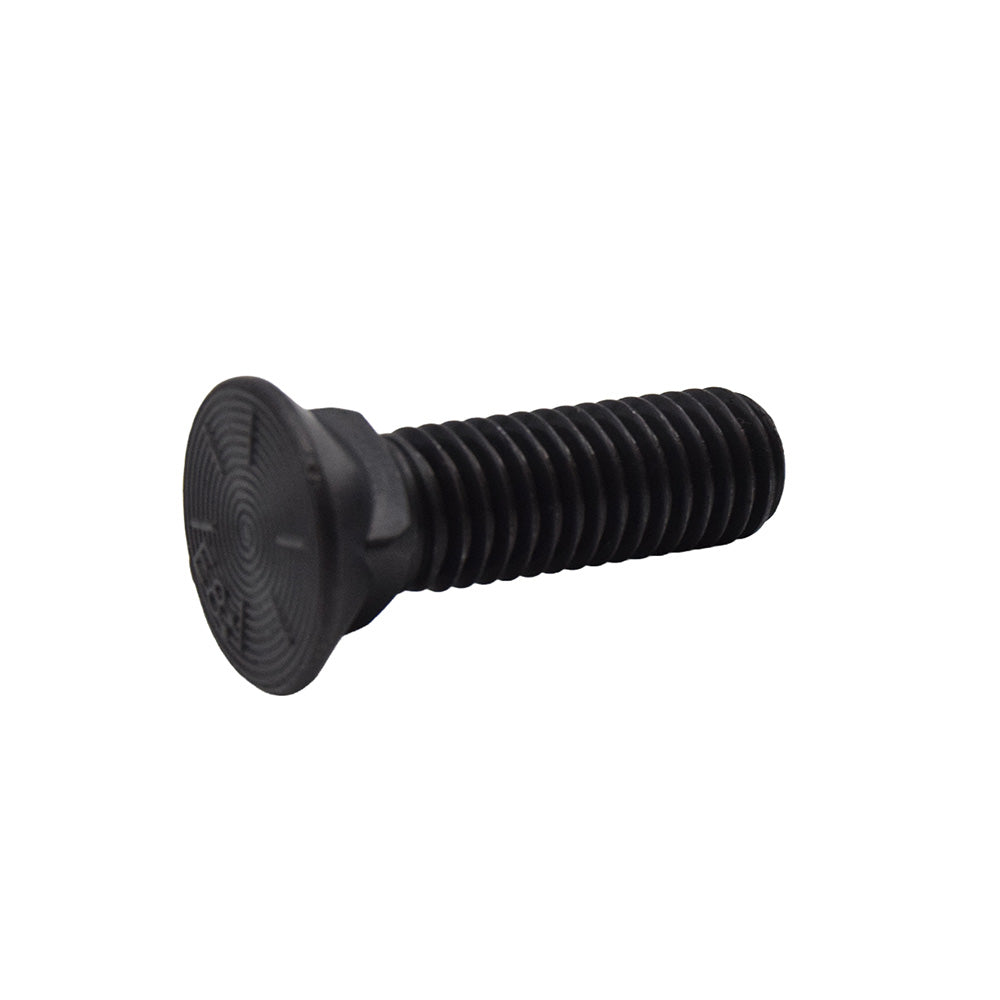

1/2-13 x 2-1/2 Inch Coarse Plain Grade 8 Flat Head Plow Bolt
Item C32.12.212
These Grade 8 plow bucket-tooth bolts have a locking key that holds the bolt as the nut is fastened. Used to secure heavy equipment parts these bolts have smooth angled heads to sit flush within their countersunk holes. The hole must first be countersunk with the chamfered edge in order to sit flush. These bolts come in a black oxide finish which is corrosion resistant in dry environments.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Length | 2-1/2 Inch |
| Thread Type | Coarse |
| Head Style | Flat |
| Finish | Plain |
Description
Description
These Grade 8 plow bucket-tooth bolts have a locking key that holds the bolt as the nut is fastened. Used to secure heavy equipment parts these bolts have smooth angled heads to sit flush within their countersunk holes. The hole must first be countersunk with the chamfered edge in order to sit flush. These bolts come in a black oxide finish which is corrosion resistant in dry environments.
- Item: Plow Bolt
Specifications
General
- Finish
- Plain
- Measurement System
- Inch
- Type
- Partial Threaded
- Material
- Medium Carbon Steel
- Plating
- Zinc
- Origin
- Imported
Dimensions
- Length
- 2-1/2 Inch
- Thread Type
- Coarse
- Diameter
- 1/2 Inch
- Threads Per Inch
- 13
- Thread Length
- 1-1/4 Inch
- Head Diameter
- 0.875 – 0.945 Inch
- Body Diameter
- 0.483 – 0.500 Inch
- Square Width
- 0.500 – 0.515 Inch
- Square Depth
- 0.375 – 0.417 Inch
Features
- Head Style
- Flat
- Grade
- Grade 8
- Tensile Strength
- 150.000
- Proof Load
- 120,000 psi
- Proof Load PSI
- 120,000
Certifications & Standards
- Standards
- ASME/ANSI B18.9 - SAE J429
