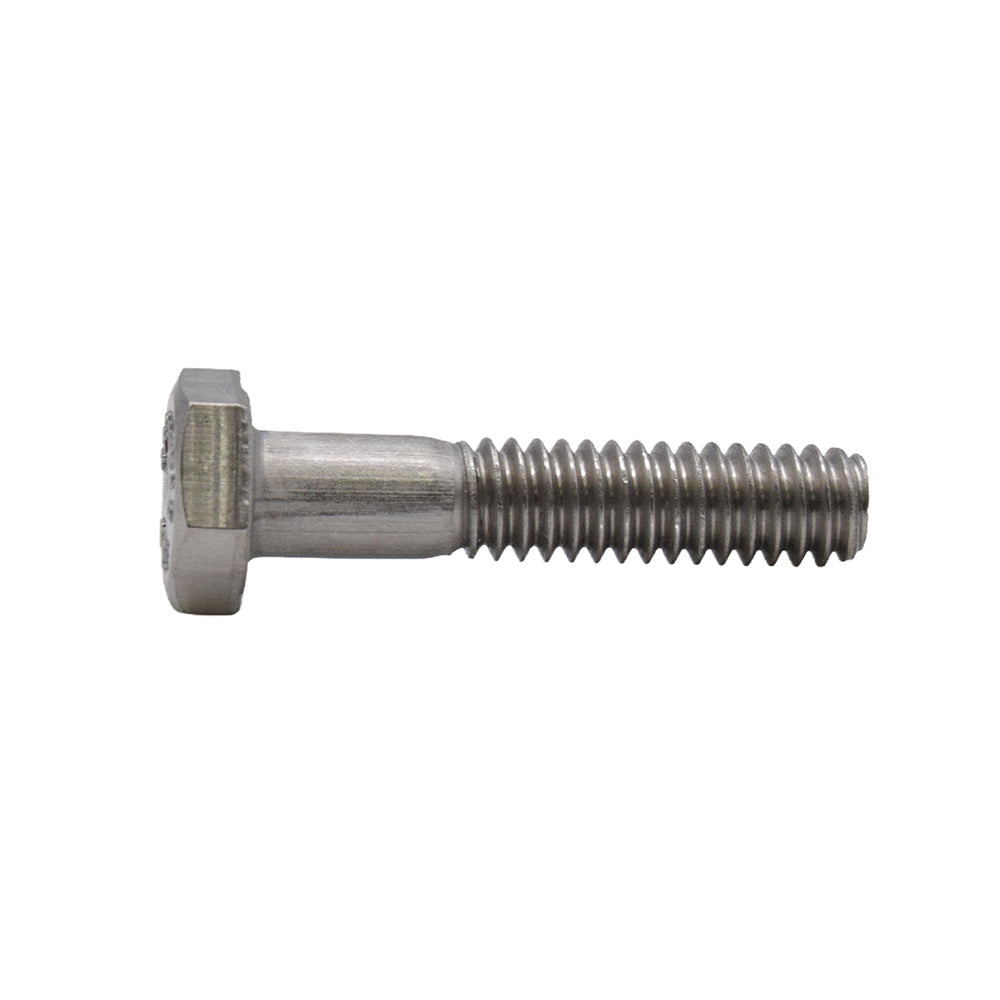

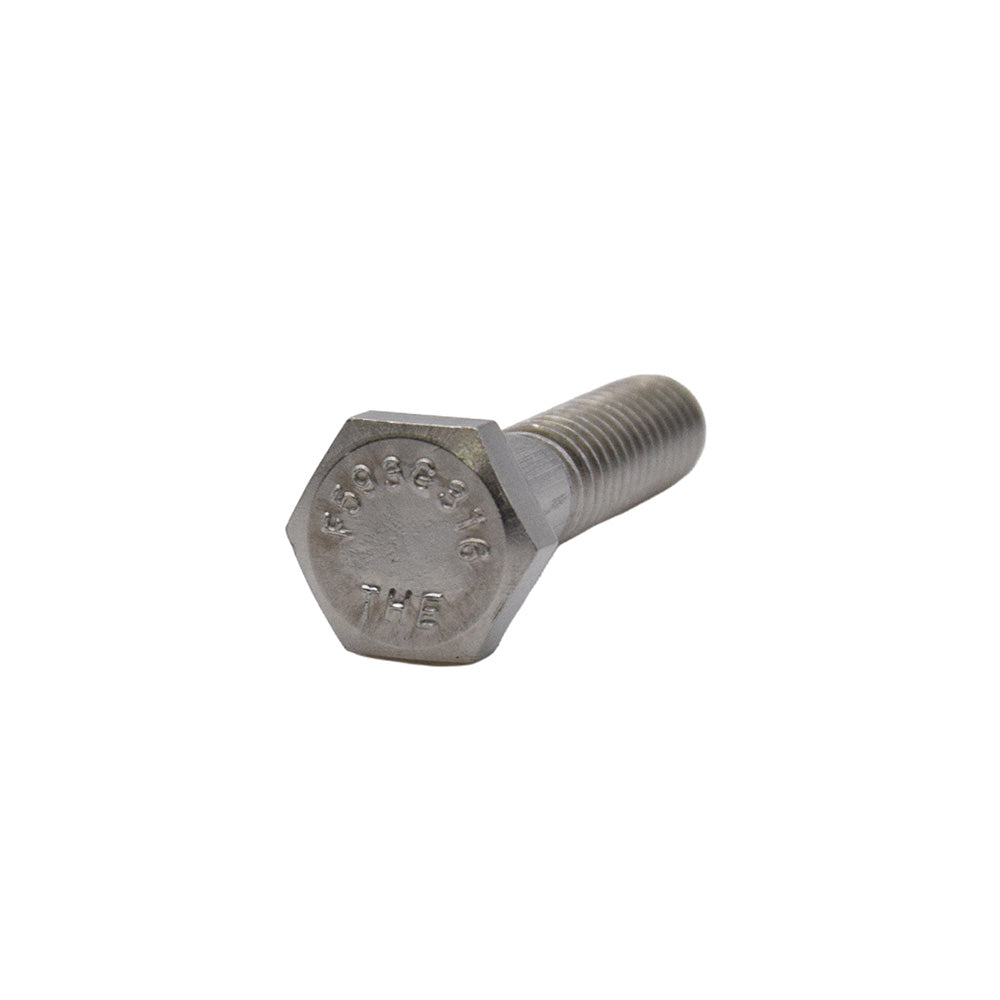

1/2-13 x 2-1/4 Inch Coarse Plain 316 Stainless Steel Hex Head Cap Screw

Item A70.12.214

Cap Screws are proportioned and toleranced to assure full and proper loading when assembled into a tapped hole. Washer face is provided under the head to provide a bearing surface when tightened. It ensures fit-up into tapped holes without counterboring. End is chamfered to aid in inserting into a tapped hole. Made In USA. Cap Screws can be used in tapped holes or with a wide range of nut bolted connections and in the applications for vehicles and structures.

Regular price $3.08
Sale price $3.08 Regular price
/ Each

Delivering to

Estimated delivery: 3–7 business days

Order by 2pm CT

Please note that this product is sold in multiples of 1

Photographs are representational and may not be size accurate.

Key Specifications

Thread Size 1/2-13
Diameter 1/2 Inch
Length 2-1/4 Inch
Head Style Hex
Drive Type External Hex
Material 316 (A4) Stainless Steel
See all specifications

Description

Cap Screws are proportioned and toleranced to assure full and proper loading when assembled into a tapped hole. Washer face is provided under the head to provide a bearing surface when tightened. It ensures fit-up into tapped holes without counterboring. End is chamfered to aid in inserting into a tapped hole. Made In USA. Cap Screws can be used in tapped holes or with a wide range of nut bolted connections and in the applications for vehicles and structures.

  • Item: Cap Screw

Specifications

General

Material
316 (A4) Stainless Steel
Measurement System
Inch
Type
Partial Threaded
Finish
Plain
Origin
Imported
Thread Type
Coarse

Dimensions

Diameter
1/2 Inch
Length
2-1/4 Inch
Thread Size
1/2-13
Threads Per Inch
13
Thread Length
1-1/4 Inch
Width Across Corner
0.840 – 0.866 Inch
Head Height
5/16 Inch
Body Diameter
0.493 – 0.500 Inch

Features

Drive Type
External Hex
Head Style
Hex
Point Type
Machine Screw
Grade
316
Tensile Strength
100000 – 150,000 psi
Proof Load
65,000 psi

Certifications & Standards

Standards
ANSI B18.2.1 – 1981
