OneSource

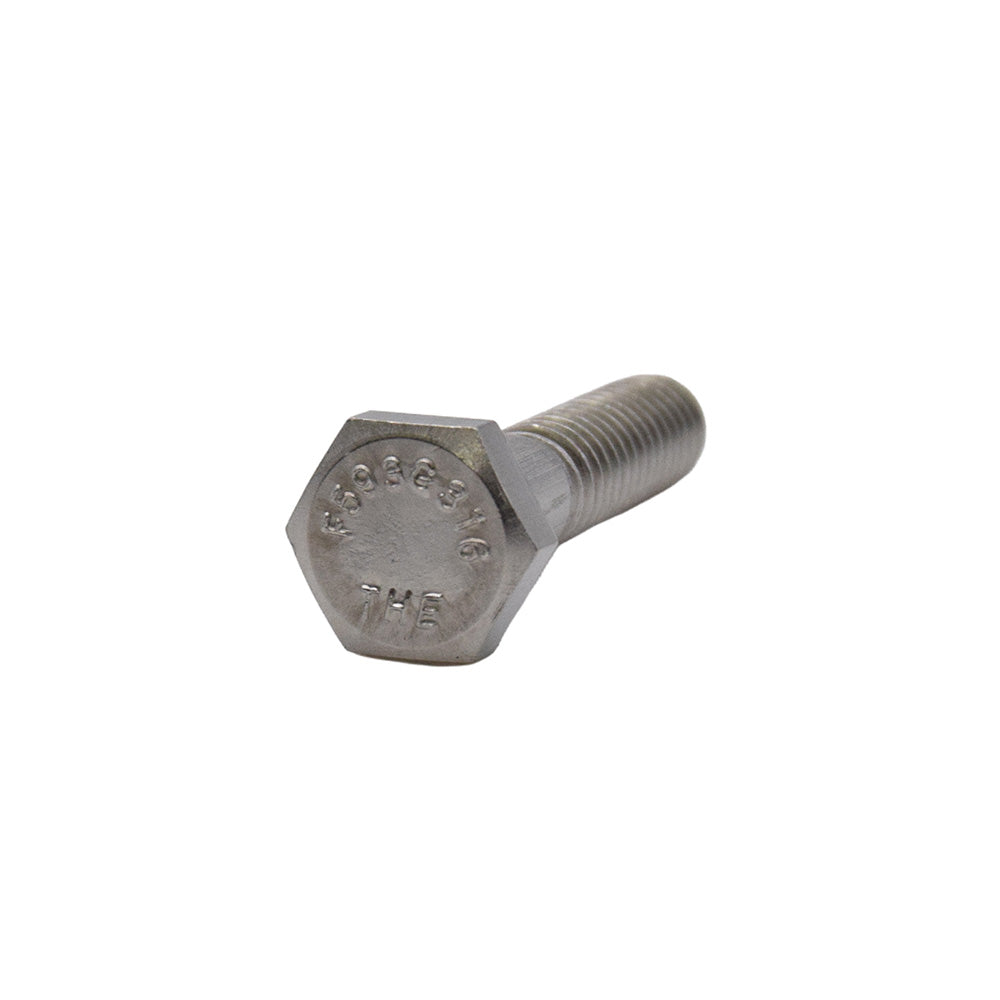

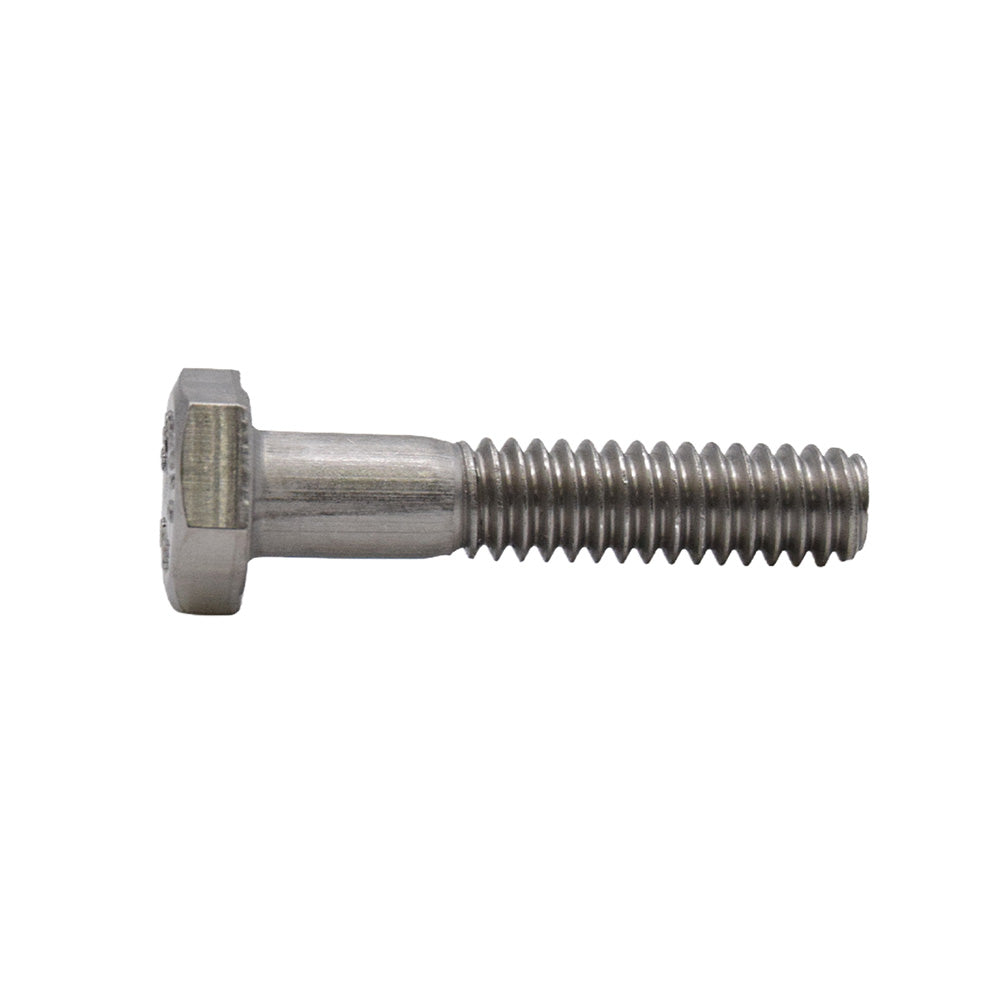

1/2-13 x 3-1/2 Inch Coarse Plain 316 Stainless Steel Hex Head Cap Screw

Item A70.12.312

Cap Screws are proportioned and toleranced to assure full and proper loading when assembled into a tapped hole. A washer face is provided under the head to provide a bearing surface when tightened. this feature ensures proper fit-up into tapped holes without counterboring. Cap screws feature a chamfered end to aid in inserting into a tapped hole. Hex head cap screws are available in a variety of material grades including: Grade 2 Grade 5 Grade 8 and stainless steels. Additionally these fasteners are available in plated and plain varieties. Hex head caps screws are a common fastener used in a variety of industrial construction automotive and manufacturing applications.

Regular price $4.89
Sale price $4.89 Regular price
/ Each

Delivering to

Estimated delivery: 3–7 business days

Order by 2pm CT

Please note that this product is sold in multiples of 1

Photographs are representational and may not be size accurate.

Description

Cap Screws are proportioned and toleranced to assure full and proper loading when assembled into a tapped hole. A washer face is provided under the head to provide a bearing surface when tightened. this feature ensures proper fit-up into tapped holes without counterboring. Cap screws feature a chamfered end to aid in inserting into a tapped hole. Hex head cap screws are available in a variety of material grades including: Grade 2 Grade 5 Grade 8 and stainless steels. Additionally these fasteners are available in plated and plain varieties. Hex head caps screws are a common fastener used in a variety of industrial construction automotive and manufacturing applications.

  • Item: Cap Screw

Specifications

General

Type
Partial Threaded
Material
316 (A4) Stainless Steel
Finish
Plain
Measurement
Inch
Origin
Imported
Thread Type
Coarse

Dimensions

Diameter
1/2 Inch
Length
3-1/2 Inch
Threads Per Inch
13
Thread Length
1-1/4 Inch
Width Across Corner
0.840 – 0.866 Inch
Head Height
5/16 Inch
Diameter Thread Size
1/2-13
Body Diameter
0.493 – 0.500 Inch

Features

Head Style
Hex
Grade
316
Tensile Strength
100000 – 150,000 psi
Proof Load
65,000 psi

Certifications & Standards

Standards
ANSI B18.2.1 – 1981
