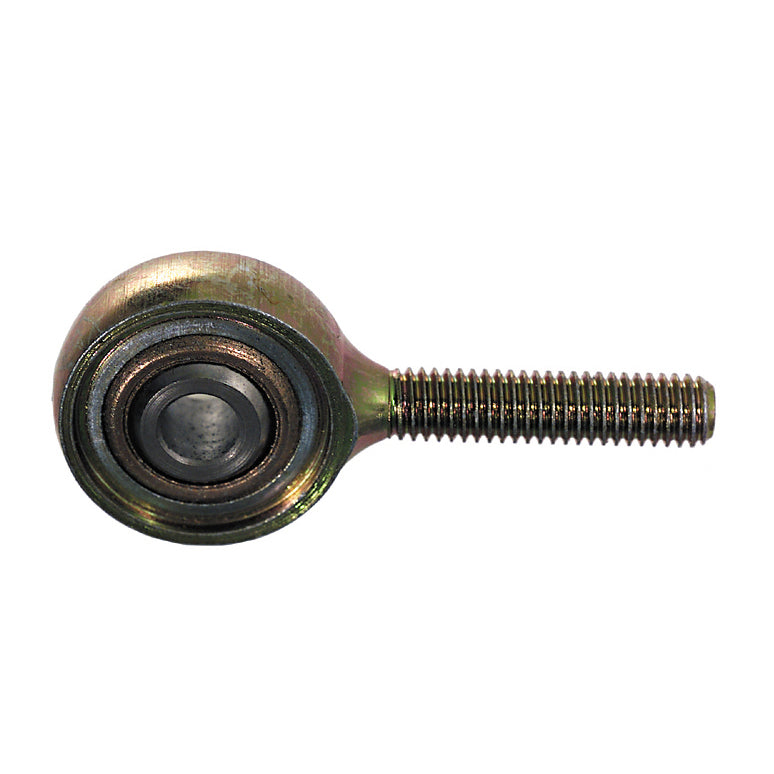

1/2-20 Male Right Hand V Series Spherical Bearing Rod End
Item E83.4.12
Rod ends are designed for securing and suspending objects from high anchor points. Hex nuts may be added to the rod end to add extra security. Rod ends are threaded swing bolts that can be cut to any length required. They connect and support loads and allow motion control and hinge movements. They work in a multitude of applications: steering tensioning and controlling movement at pivot points.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Thread Size | 1/2-20 |
| Diameter | 1/2 Inch |
| Material | Steel |
Description
Description
Rod ends are designed for securing and suspending objects from high anchor points. Hex nuts may be added to the rod end to add extra security. Rod ends are threaded swing bolts that can be cut to any length required. They connect and support loads and allow motion control and hinge movements. They work in a multitude of applications: steering tensioning and controlling movement at pivot points.
- Plated case hardened steel ball with self-lubricating centered oil impregnated phosphor bronze race permanently secured in a mild steel plated housing
- Four piece construction
- Ball Diameter: 0.931 Inch
- Ball Material: Steel-Case Hardened
- Ball Width: 0.625 Inch
- Base To Center: 2.438 Inch
- Finish: Plated
- Head Diameter: 1.312 Inch
- Inside Diameter: 1/2-20
- Item: Spherical Bearing Rod End
- Load Rating: 7400 lb Ultimate (Radial) Static
- Material: Case Hardened Steel Ball Sintered Bronze Race Steel Housing
- Thread Size: 1/2-20
- Thread Type: Male Right Hand
- Type: V Series
