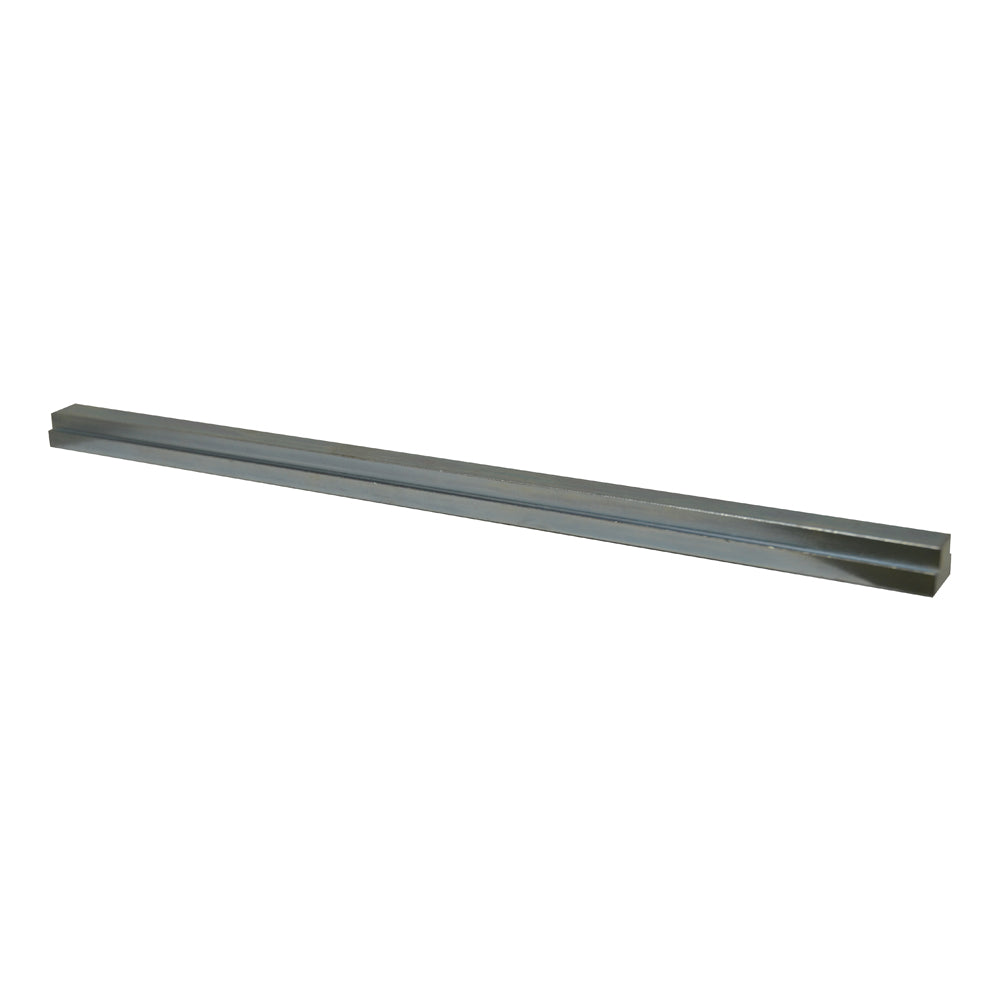

1/2 Inch X 9/16 Inch X 3/16 Inch X 12 Inch Zinc Clear Carbon Steel Type-2 Step Keystock
Item E78.2.06
Key stock is a small metal block or wedge inserted between a shaft and the hub of a pulley gear sprocket or other rotating power device. It provides driving torque and prevents movement. One part of the key fits into a precut slot in the shaft known as a key seat. The remainder slides into a groove in the hub called a keyway. Woodruff keys are flat semicircular keys that rock into place and adjust to an angular spine without coming unseated. Machine keys are elongated with either rounded ends square ends or tapered gib heads. Step keys also known as offset keys are precision-milled with steps notched at regular intervals for repairing sprockets gears and pulleys.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Length | 12 Inch |
| Material | Steel |
| Finish | Zinc |
| Height | 1/4 Inch |
| Retainer Type | Step Key Stock |
Description
Description
Key stock is a small metal block or wedge inserted between a shaft and the hub of a pulley gear sprocket or other rotating power device. It provides driving torque and prevents movement. One part of the key fits into a precut slot in the shaft known as a key seat. The remainder slides into a groove in the hub called a keyway. Woodruff keys are flat semicircular keys that rock into place and adjust to an angular spine without coming unseated. Machine keys are elongated with either rounded ends square ends or tapered gib heads. Step keys also known as offset keys are precision-milled with steps notched at regular intervals for repairing sprockets gears and pulleys.
- Step Key also known as "offset" keystock
- Used on couplings gears sheaves sprockets and pulleys
- Type 2 is useful when mating mismarked keyways gears and shafts
- Item: Step Keystock
Specifications
General
- Finish
- Zinc
- Material
- Steel
- Measurement System
- Inch
- Type
- Type-2
- Origin
- Imported
Dimensions
- Height
- 1/4 Inch
- Length
- 12 Inch
- Width
- 1/2 inch
- Height Maximum
- 0.2550 Inch
- Height Minimum
- 0.2450 Inch
- Width Maximum
- 0.5000 Inch
- Width Minimum
- 0.4970 Inch
Features
- Retainer Type
- Step Key Stock
Miscellaneous
- Step Height
- 0.1875 Inch
- Step Height Maximum
- 0.1925 Inch
- Step Height Minimum
- 0.1825 Inch
- Step Width
- 0.5625 Inch
- Step Width Maximum
- 0.5625 Inch
- Step Width Minimum
- 0.5595 Inch
