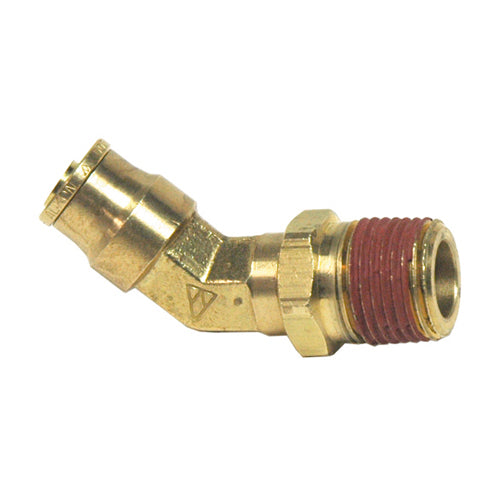

1/2 Tube X 3/8 Inch Push On Brass Push On D.O.T. Air Brake 45 Degree Male Elbow Swivel
Item G72.0.22.86
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
The brass air brake push on fittings are easy to assemble with no flaring and have good vibration resistance.
- Designation AB or D.O.T stamped on nut
- Used with D.O.T. nylon tubing - refer to automotive hose section
- Designation D.O.T or AB marked on nut bodies come with tube support
- It is easy to assemble (no flaring) may be used with nylon tubing by replacing long nut and spherical sleeve with insert rigid sleeve and nut no tools required to assemble easy to assemble
- O-Ring buna-n sealing
- Fair vibration resistance
- Air Brake Systems Not Exposed To 200 deg F And/Or Where Battery Acid May Drip On Tubing
Photographs are representational and may not be size accurate.
Key Specifications
| Connection Type | Push-On x NPT |
| Pipe Size | 3/8 Inch |
| Tube Size | 1/2 Inch |
| Thread Size | 3/8-18 |
| Material | Brass |
