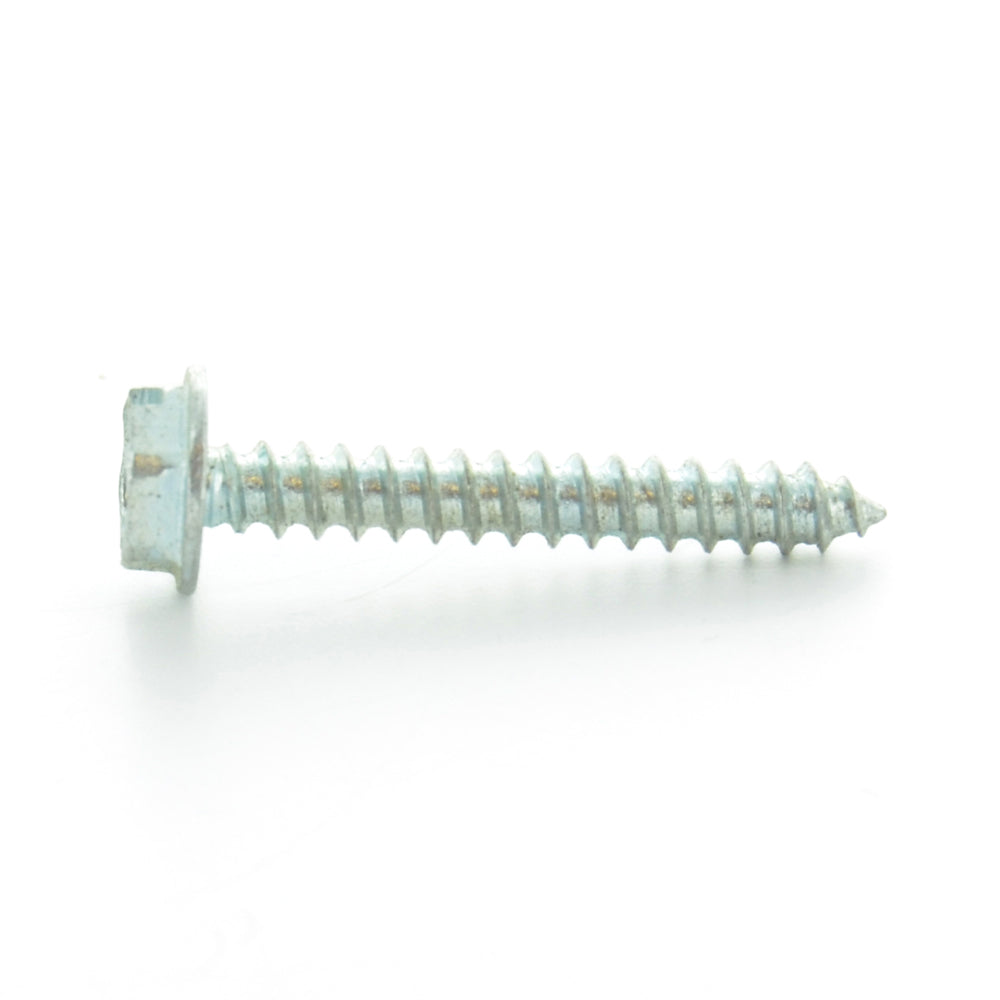

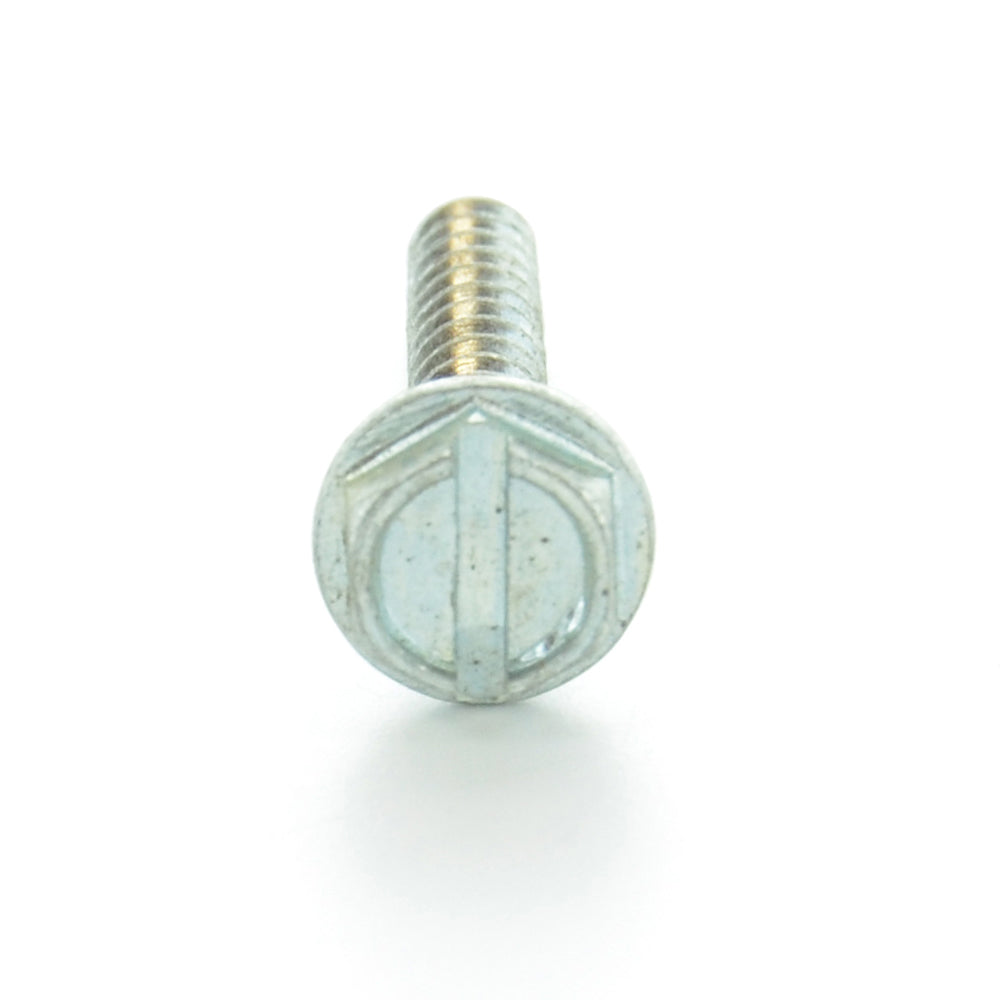

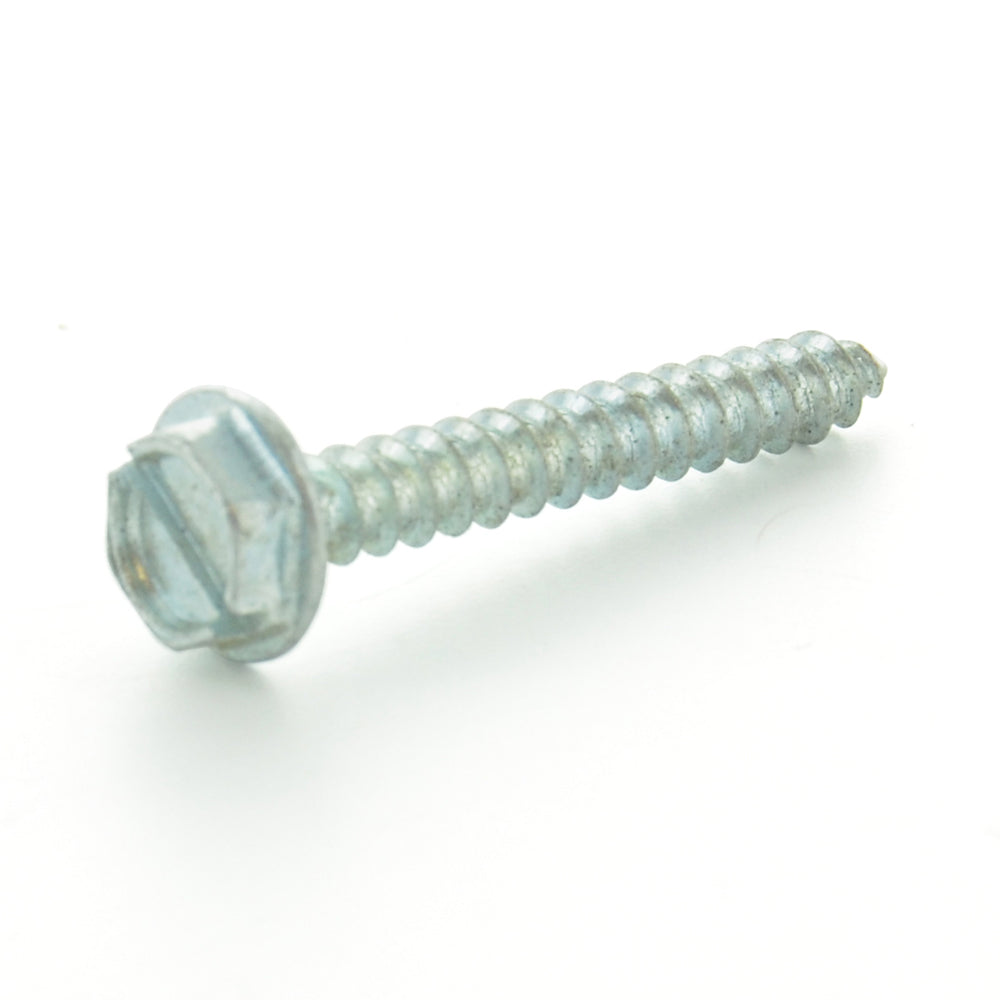

1/4-14 x 5/8 Inch Zinc Plated Low Carbon Steel Indented Hex Washer Head Type Ab Self-Tapping Sheet Metal Screw
Item B11.14.58
Hex head washer sheet metal screws attach metal hardware to wood. The washer stops the screw from gouging or damaging the wood frames. They have a fully threaded shank that provides strength in door or window frames.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | #14 |
| Finish | Zinc |
| Head Style | Hex Washer |
| Length | 5/8 Inch |
| Measurement | Inch |
| Origin | IMPORT |
| Point Type | Drill Point |
Description
Description
Hex head washer sheet metal screws attach metal hardware to wood. The washer stops the screw from gouging or damaging the wood frames. They have a fully threaded shank that provides strength in door or window frames.
- Origin: Imported
- Finish as per ASTM F1941 Fe/Zn 3AT
- Drive Type: Hex - Slotted
- Finish: Zinc
- Head Height: 0.172 - 0.190 Inch
- Head Style: Indented Hex Washer
- Industry Standard: ASME/ANSI B18.6.4 SAE J78
- Item: Self-Tapping Sheet Metal Screw
- Length: 5/8 Inch
- Material: Low Carbon Steel
- Measurement: Inch
- Origin: Imported
- Point Type: Type-AB
- Slot Depth: 0.083 - 0.111 Inch
- Slot Width: 0.064 - 0.075 Inch
- Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933
- Threads Per Inch: 14
- Type: Full Threaded
- Washer Diameter: 0.480 - 0.520 Inch
- Washer Thickness: 0.030 - 0.050 Inch
- Width Across Corner: 0.409 Inch
