• 1/4-20 x 1-1/2 Inch Coarse Zinc Plated Grade 5 Round Head Carriage Bolt
  • 1/4-20 x 1-1/2 Inch Coarse Zinc Plated Grade 5 Round Head Carriage Bolt
  • 1/4-20 x 1-1/2 Inch Coarse Zinc Plated Grade 5 Round Head Carriage Bolt
1 4

Photographs are representational and may not be size accurate.

OneSource

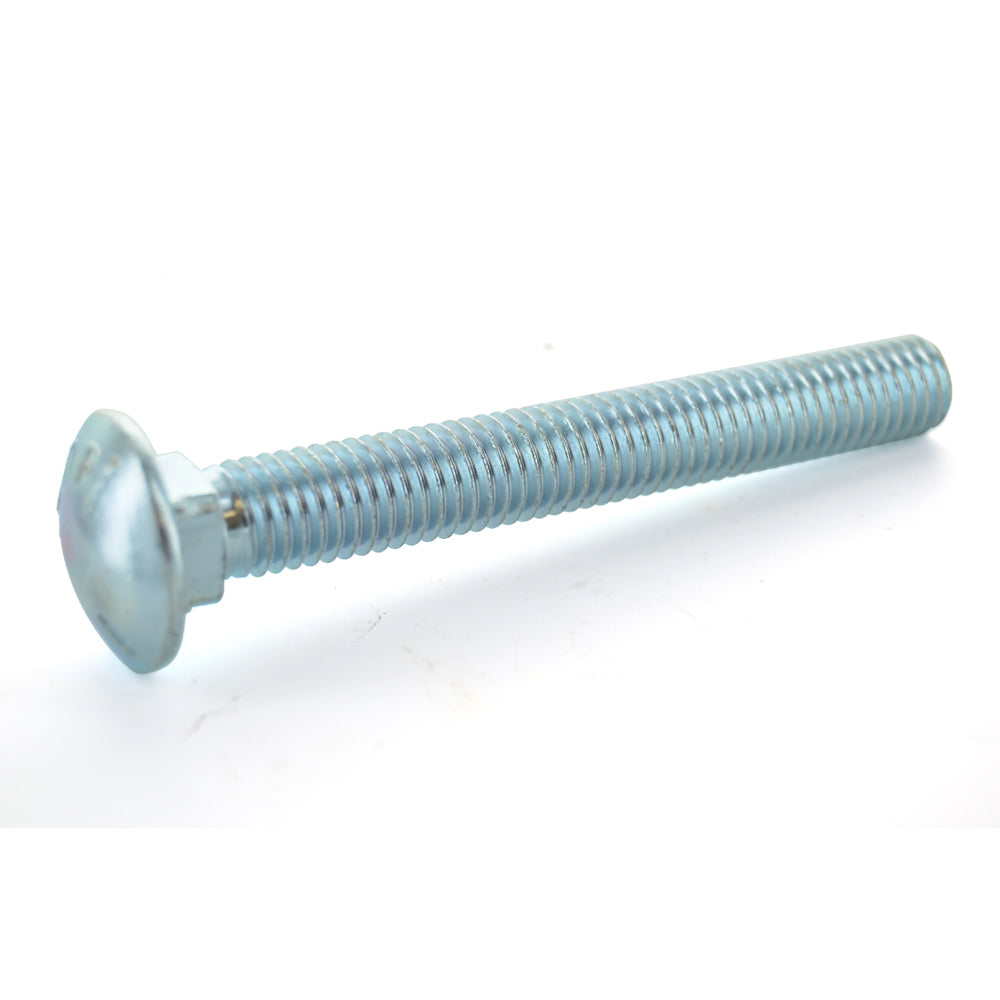

1/4-20 x 1-1/2 Inch Coarse Zinc Plated Grade 5 Round Head Carriage Bolt

Item C36.014.112

Carriage Bolts also know as a coach bolt or round head square neck bolt carriage bolts are intended for use through iron strengthening plates on either side of a wooden beam. It is commonplace to use them into bare timber. Carriage bolts have a squared section under their round head that grip to prevent rotation

$0.47
$0.47
/ Each

Please note that this product is sold in multiples of 1
Ships in 1 day
Free shipping

Free Shipping On All Orders Over $15

We Stand Behind Our Products

with our 100% quality assurance guarantee.

Photographs are representational and may not be size accurate.

Key Specifications

Finish Zinc
Head Style Round
Length 1-1/2 Inch
Measurement Inch
Thread Type Coarse

Description

Carriage Bolts also know as a coach bolt or round head square neck bolt carriage bolts are intended for use through iron strengthening plates on either side of a wooden beam. It is commonplace to use them into bare timber. Carriage bolts have a squared section under their round head that grip to prevent rotation

  • Origin: Imported
  • Finish as per ASTM F1941 Fe/Zn 3AT
  • Diameter: 1/4 Inch
  • Finish: Zinc
  • Grade: Grade 5
  • Head Diameter: 0.563 - 0.594 Inch
  • Head Height: 0.125 - 0.145 Inch
  • Head Height Max: .145
  • Head Style: Round
  • Item: Carriage Bolt
  • Length: 1-1/2 Inch
  • Material: Medium Carbon Steel
  • Measurement: Inch
  • Origin: Imported
  • Specification: ASME/ANSI B18.5 SAE J429
  • Square Depth: 0.125 - 0.156 Inch
  • Square Width: 0.245 - 0.260 Inch
  • Thread Length: 1-1/2 Inch
  • Thread Type: Coarse
  • Threads Per Inch: 20
  • Type: Full Threaded
