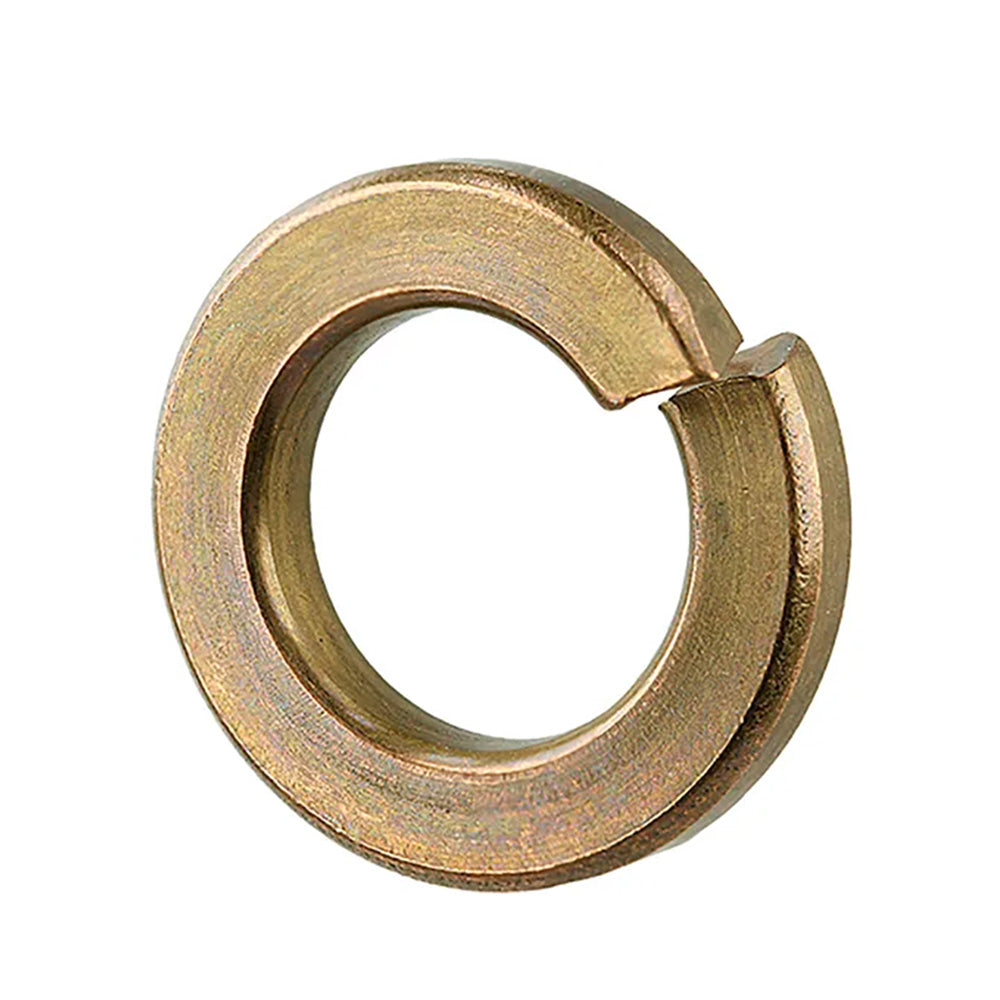

1/4 Inch Plain Silicon Bronze Split Lock Washer
Item E22.14
Bearing Width: 0.076 Inch
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Material | Silicon Bronze |
| Measurement | Inch |
| Washer Type | Split Lock |
Description
Description
From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.
- Bearing Width: 0.076 Inch
- Finish: Plain
- Industry Standard: ASME/ANSI B18.21.1
- Inside Diameter: 0.252 - 0.260 Inch
- Item: Split Lock Washer
- Material: Silicon Bronze
- Measurement: Inch
- Nominal Size: 1/4 Inch
- Origin: Imported
- Outside Diameter: 0.487 Inch
- Section Width: 0.109 Inch
- Specification: ASME/ANSI B18.21.1
- Thickness: 0.062 Inch
- Type: Regular
