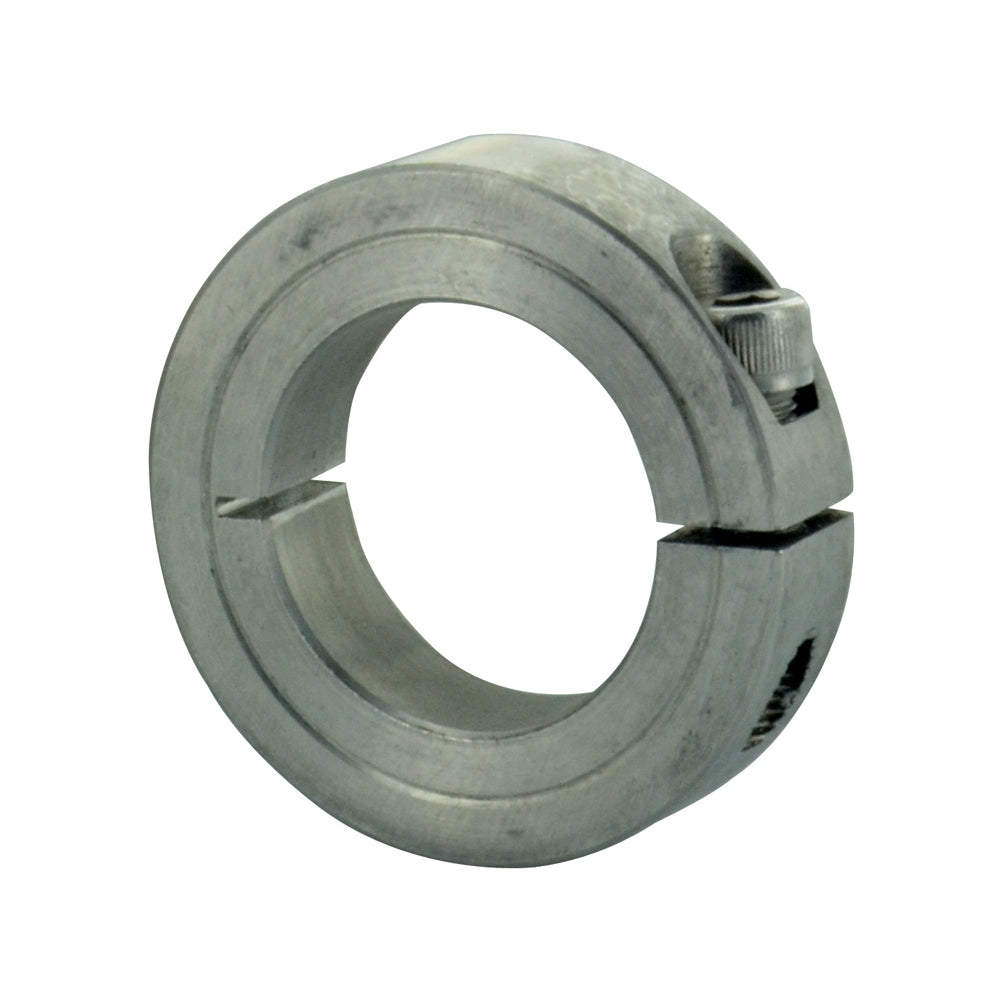

1/4 Inch Stainless Steel 1-Piece Shaft Collar
Item E96.04.14
Shaft collars hold bearings and sprockets to shafts and other components and can act as mechanical stops. A two-piece clamp collar wraps around a hard or soft shaft without marring. Set screw collars use a set screw to lock onto a soft or predrilled shaft.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Material | Stainless Steel |
| Measurement | Inch |
| Retainer Type | 1-Piece Shaft Collar |
Description
Description
Shaft collars hold bearings and sprockets to shafts and other components and can act as mechanical stops. A two-piece clamp collar wraps around a hard or soft shaft without marring. Set screw collars use a set screw to lock onto a soft or predrilled shaft.
- Single split collars (SC1) use friction to provide grip on bars and shafts
- This method is generally considered to be more study than the set screw design of SC collars
- Inside Diameter: 1/4 Inch
- Inside Diameter Maximum: 0.2540 Inch
- Inside Diameter Minimum: 0.2510 Inch
- Item: Shaft Collar
- Material: Stainless Steel
- Measurement: Inch
- Origin: Imported
- Outside Diameter: 11/16 Inch
- Outside Diameter Maximum: 0.6925 Inch
- Outside Diameter Minimum: 0.6825 Inch
- Set Screw Size: #4-40
- Style: 1-Piece
- Thickness: 5/16 Inch
- Thickness Maximum: 0.3175 Inch
- Thickness Minimum: 0.3075 Inch
- Type: Round Bore
