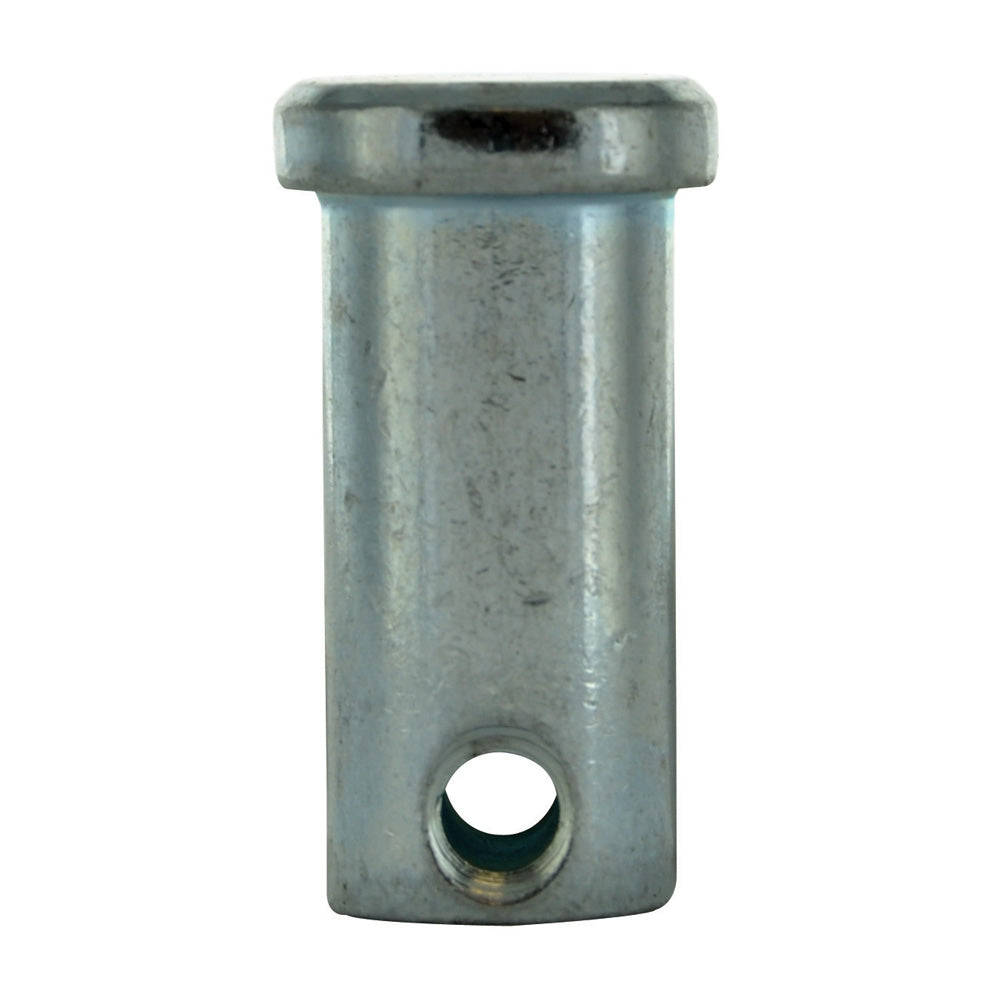

1/4 Inch X 1-1/2 Inch Zinc Clear Low Carbon Steel Clevis Pin
Item E73.14.112
Solid pin with standard flat head that secures with a hitch pin clip or cotter pin through a hole drilled in the opposite end. Clevis pins are used as a quick and secure fastener in many agricultural and industrial applications.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Finish | Zinc |
| Length | 1-1/2 Inch |
| Material | Low Carbon Steel |
| Measurement | Inch |
| Retainer Type | Clevis Pin |
Description
Description
Solid pin with standard flat head that secures with a hitch pin clip or cotter pin through a hole drilled in the opposite end. Clevis pins are used as a quick and secure fastener in many agricultural and industrial applications.
- Use With BP-213
- Dimensional Standard: ANSI/ASME B18.8.2
- Finish: Zinc
- Head Size: 0.370 Inch Dia
- Hole Size: 3/32 Inch
- Item: Clevis Pin
- Length: 1-1/2 Inch
- Material: Low Carbon Steel
- To Center of Pin Hole: 1-13/32 Inch
- To Edge Of Pin Hole: 1-23/64 Inch
