OneSource

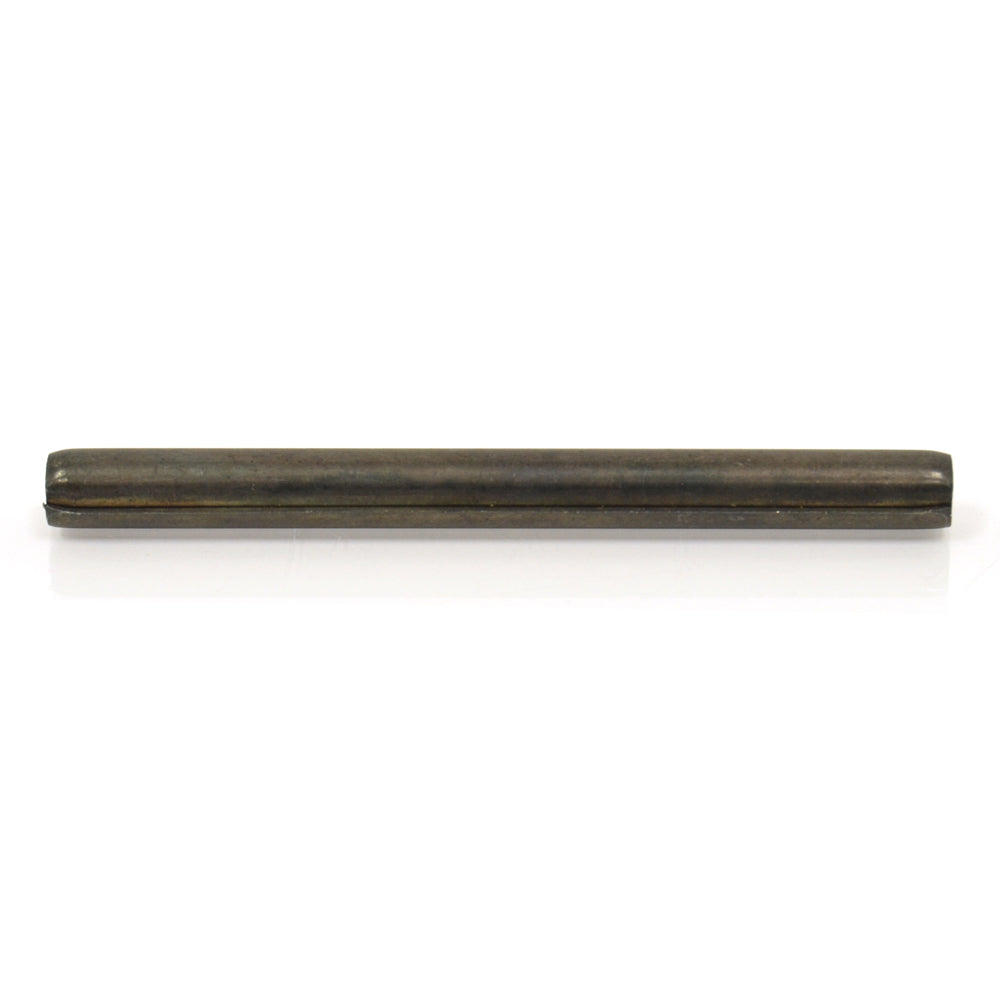

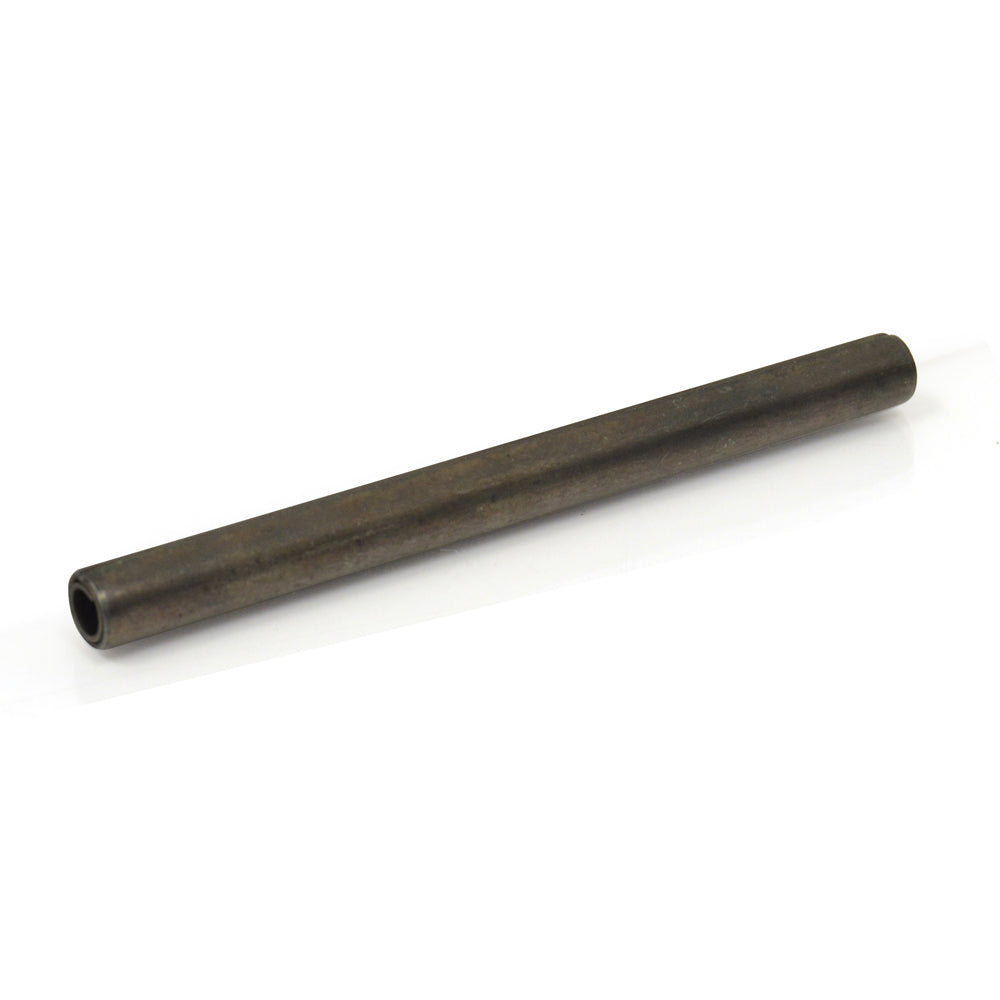

1/4 Inch X 3 Inch Plain SAE 1070-1095 High Carbon Steel Coiled Spring Pin
Item E77.14.3
Coiled pins are rolled forms made with 2-1/4 turns of steel. the wound design allows stress to be evenly distributed throughout the pins cross section.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Finish | Plain |
| Length | 3 Inch |
| Material | Spring Steel |
| Measurement | Inch |
| Retainer Type | Coiled Spring Pin |
Description
Description
Coiled pins are rolled forms made with 2-1/4 turns of steel. the wound design allows stress to be evenly distributed throughout the pins cross section.
- HV 420 to 545 hardness
- Dimensional Standard: ASME B 18.8.2 ASME B 18.8.3M ISO 8750
- Finish: Plain
- Hole Size: 0.247 - 0.256 Inch
- Item: Coiled Spring Pin
- Length: 3 Inch
- Material: SAE 1070-1095 High Carbon Steel
- Type: Standard Duty
