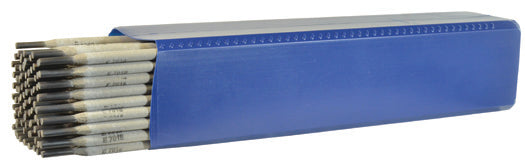

1/8 Inch E7018 Low Hydrogen Welding Electrode Import 10 Lb Package
Item G86.514.18.10
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
The E7018 Low Hydrogen Import electrode is high strength and has an easy strike tip for good starts. It is a general purpose electrode that provides excellent start and restart capabilities a smooth and virtually spatter free area for superior weld-ability.
- Tensile strength: up to 79 900 psi
- Yield strength: 67 700 psi
- Elongation in 2” - 29.4% minimum
- All position high strength contractor use
- Easy strike tip for good starts
- Conforms to ANSI/AWS A5.1 ASME SFA 5.1 E7018
- 7018 mild steel electrodes are a high deposition electrode for low and medium carbon steels
- It is an efficient iron powder low hydrogen electrode with excellent mechanical properties; crack resistance and X-ray quality welds
- This electrode offers a quiet stable low penetration spatter-free arc. The moderately heavy slag is easy to remove revealing a bead with distinct ripples
- Operator appeal is a plus factor
- Chemical Composition: C-0.08% Mn-1.00% Si-.60% S-.011% P-.021% Fe-REM
