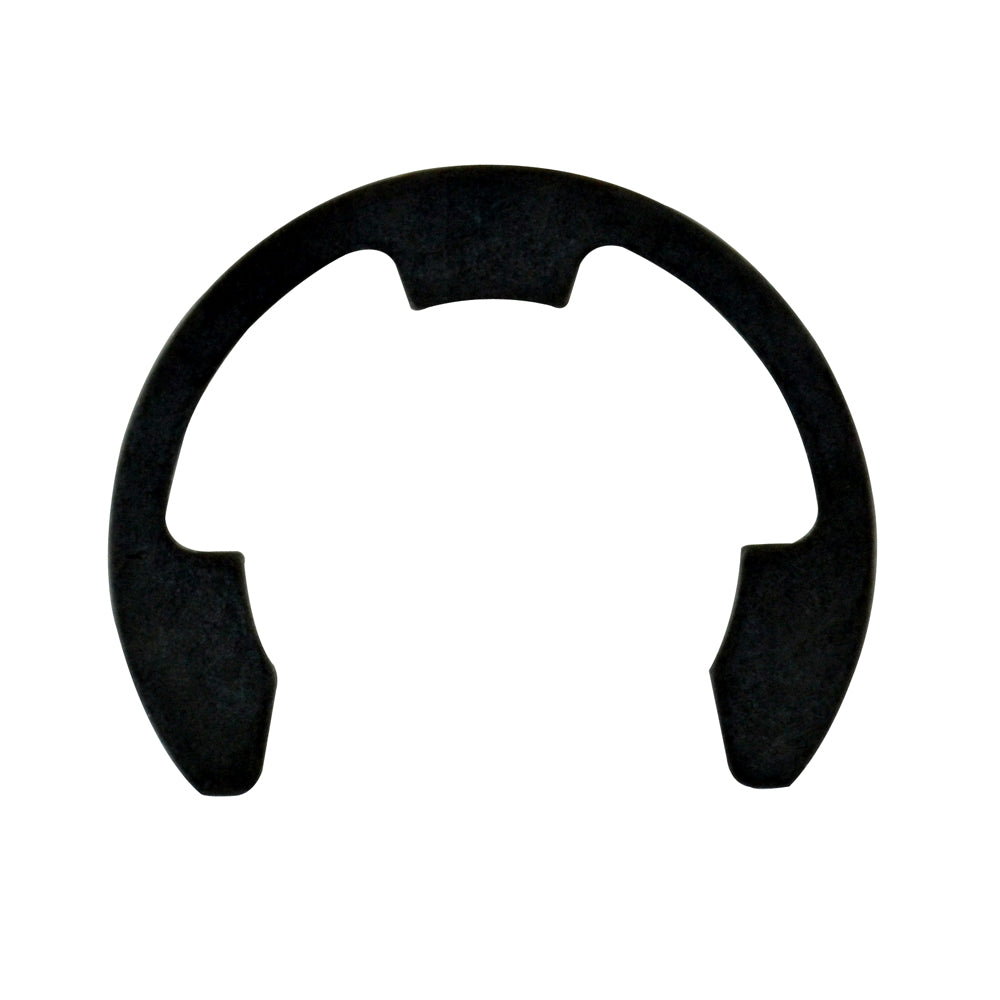

1/8 Inch Phosphate Carbon Spring Steel E-Clip Retaining Ring
Item E94.18
Circlips (also known as retaining rings) are types of fastener which look like flexible open-ended rings. Circlips are typically made from stainless steel and similar metals. Alternative names for circlips include retaining rings retaining clips C-type Jesus clips snap rings and E-type.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | 1/8 Inch |
| Material | Spring Steel |
| Measurement | Inch |
| Retainer Type | E-Clip |
Description
Description
Circlips (also known as retaining rings) are types of fastener which look like flexible open-ended rings. Circlips are typically made from stainless steel and similar metals. Alternative names for circlips include retaining rings retaining clips C-type Jesus clips snap rings and E-type.
- Plating: Phosphate
- Material: Carbon Spring SteelAllowable Corner Chamfers: 0.030 Inch
- Allowable Corner Radii: 0.040 Inch
- Application: E-clip
- Clear Outside Diameter: 0.230 Inch
- Clearance Diameter Released in Groove: 0.240 Inch
- Diameter: 1/8 Inch
- Edge Margin: 0.030 Inch
- Finish: Phosphate
- Groove Depth: 0.015 Inch
- Groove Diameter: 0.100 Inch
- Groove Diameter to Shaft Concentricity: 0.002 Inch
- Groove Width: 0.020 Inch
- Groove Width Tolerance: +0.002/-0.000
- Hardness: HR15N 84.5-87
- Item: E-Clip
- Material: Carbon Spring Steel
- Measurement: Inch
- Ring Free Diameter: 0.094 Inch
- Ring Free Diameter Tolerance: +0.002/-0.003
- RPM Limits: 35000 RPM
- Shaft Diameter: 1/8 Inch
- Thickness: 0.015 Inch
- Thickness Tolerance: +/-0.002
- Thrust Max Load: 65 lb
- Type: Stamped
