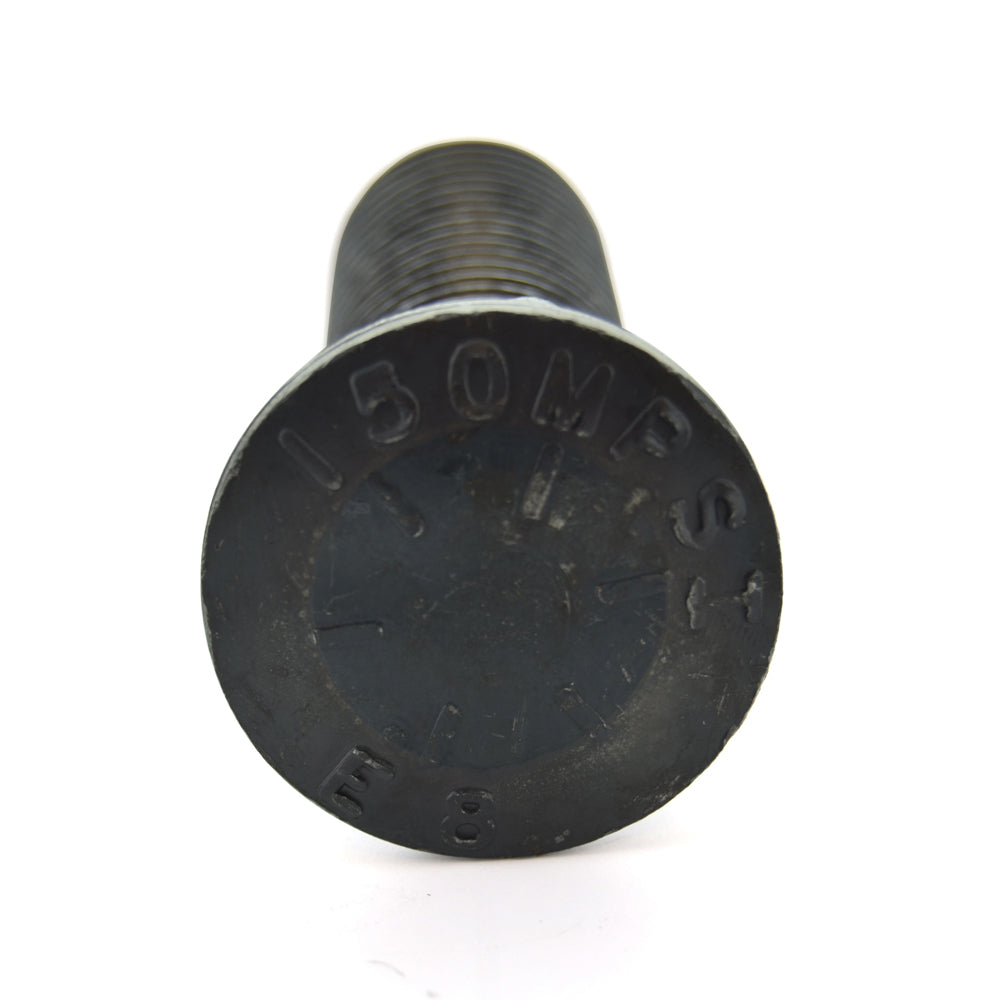

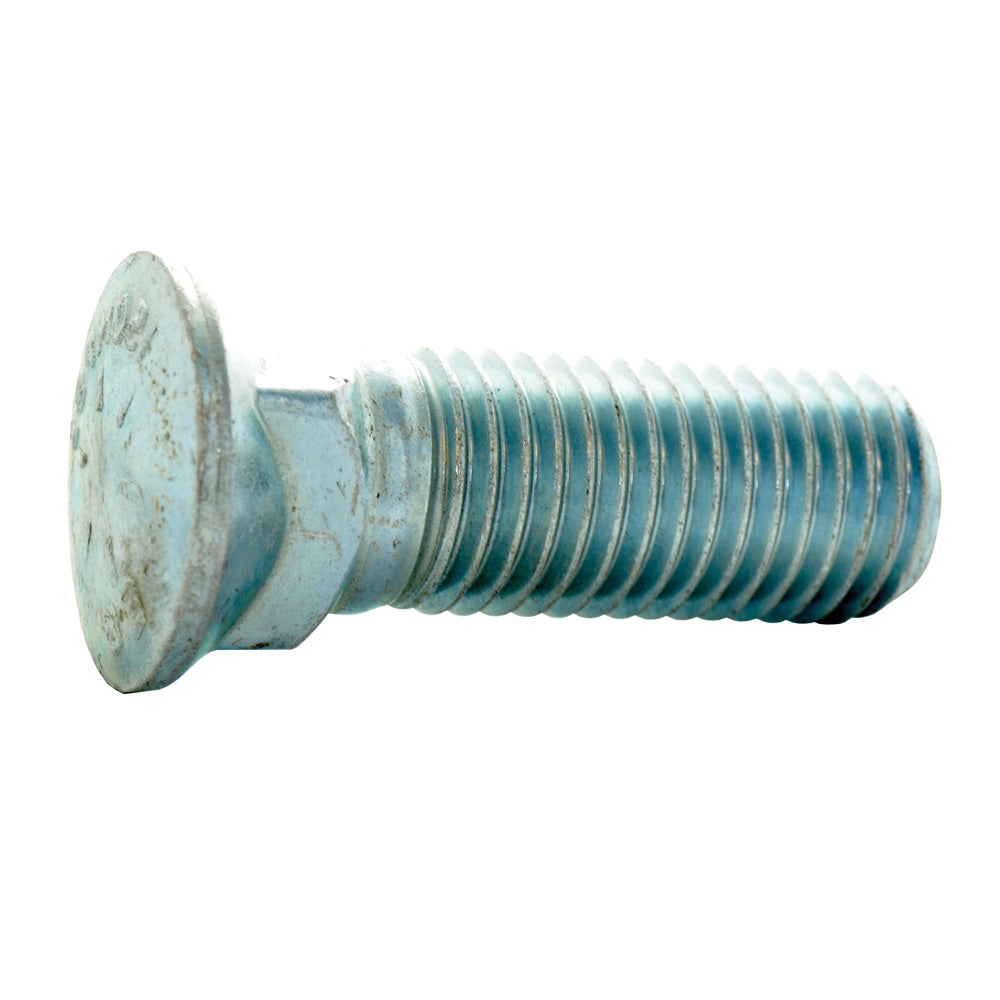

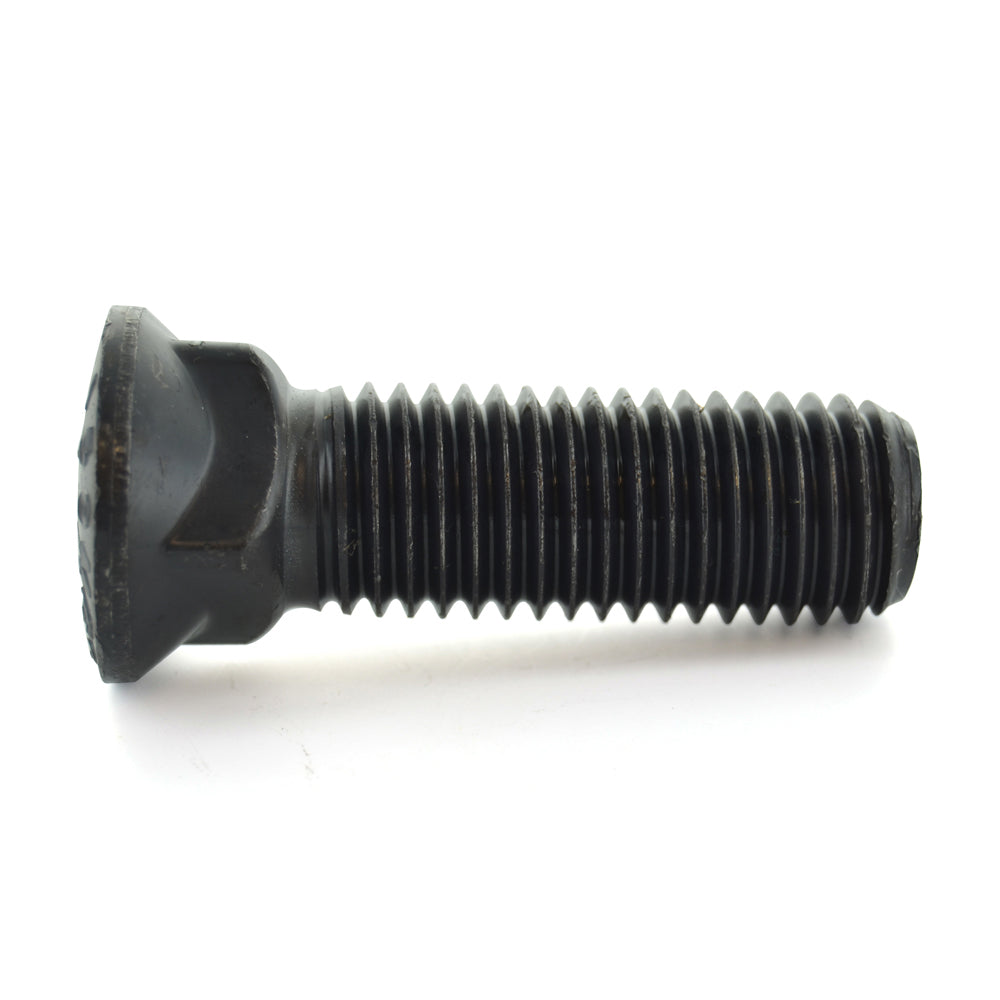

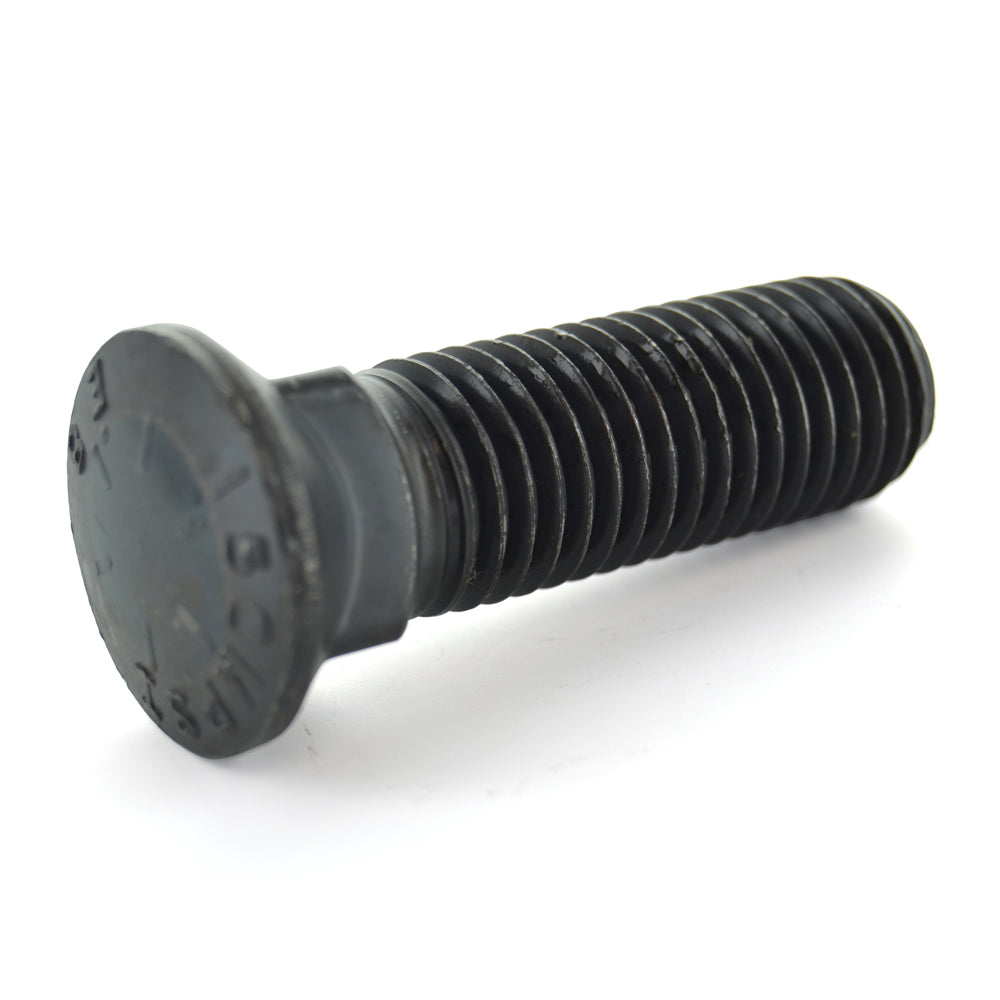

1-8 x 3 Inch Coarse Plain Grade 8 Dome Head Plow Bolt
Item C32.1.3
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
Though available year-round there’s no better time to get new plow bolts than before the winter season is in full swing. Plow bolts have a countersunk head and square neck that prevent turning when a nut is tightened or removed. Traditional applications can be found in plows and various pieces of heavy equipment.
- Plating : Zinc
- Tensile Strength : 150.000
- Proof Load PSI : 120 000Body Diameter: 0.976 - 1.062 Inch
- Diameter: 1 Inch
- Finish: Plain
- Grade: Grade 8
- Head Diameter: 1.656 - 1.700 Inch
- Head Diameter Max: 1.700
- Head Style: #3 Dome Regular
- Industry Standard: ASME/ANSI B18.9
- Item: Plow Bolt
- Length: 3 Inch
- Material: Medium Carbon Steel
- Measurement: Inch
- Origin: Imported
- Proof Load: 120000 psi
- Specification: ASME/ANSI B18.9 SAE J429
- Square Depth: 0.627 - 0.690 Inch
- Square Width: 1.000 - 1.031 Inch
- Tensile Strength : 150000 psi
- Thread Length: 2-1/4 Inch
- Thread Type: Coarse
- Threads Per Inch: 8
- Type: Partial Threaded
