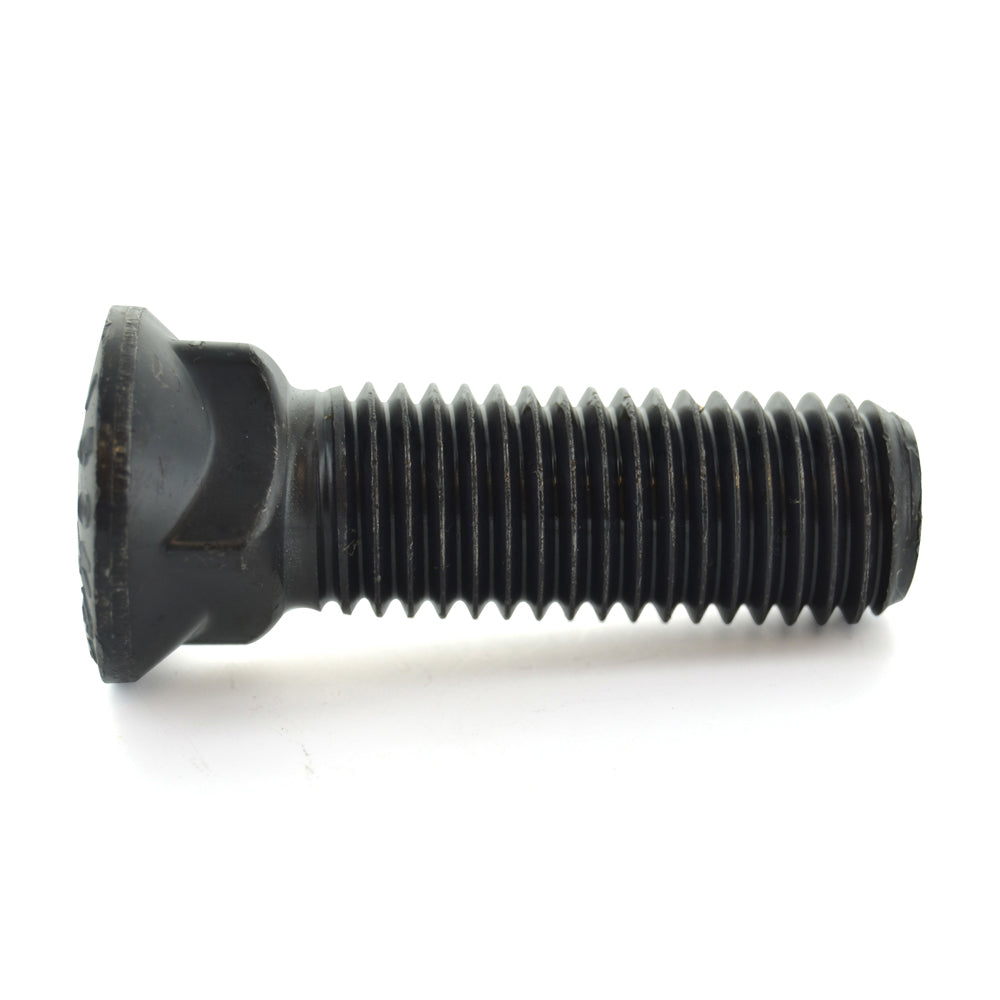

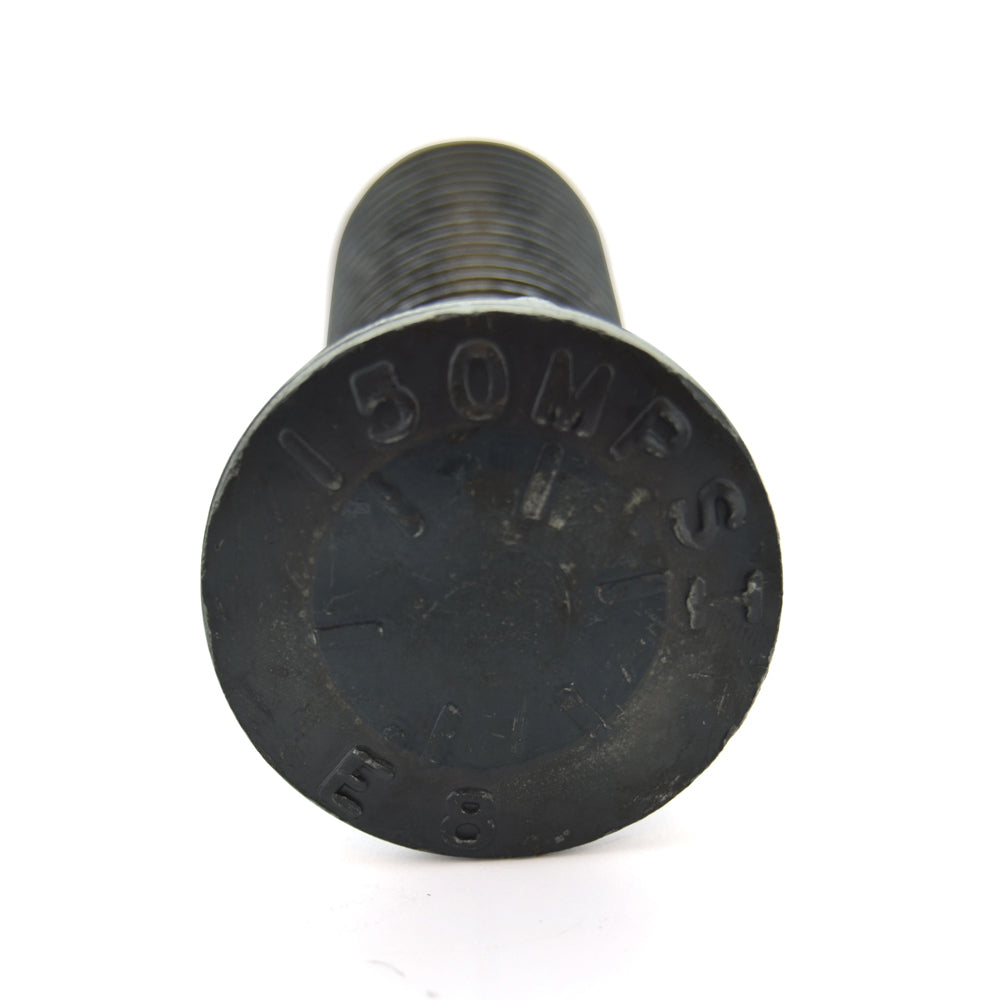

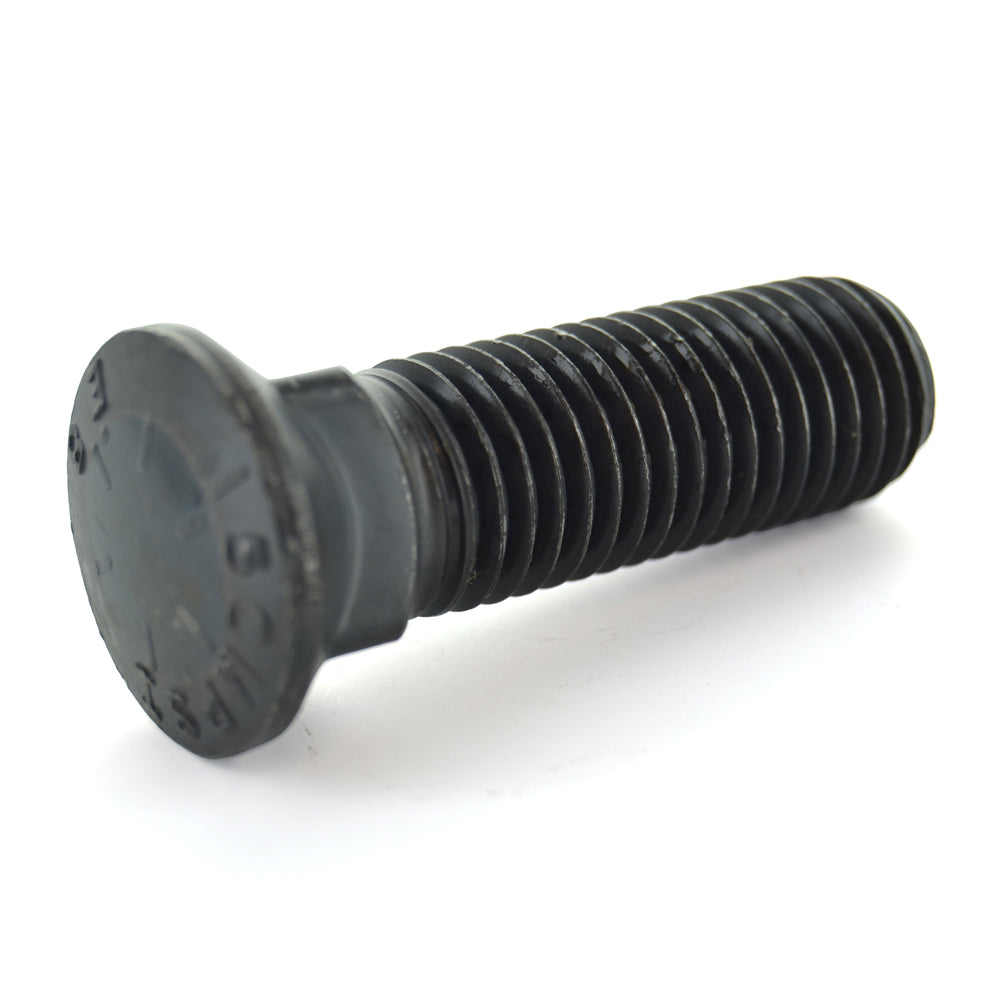

1-8 x 6 Inch Coarse Plain Grade 8 Dome Head Plow Bolt
Item C32.1.6
Though available year-round there’s no better time to get new plow bolts than before the winter season is in full swing. Plow bolts have a countersunk head and square neck that prevent turning when a nut is tightened or removed. Traditional applications can be found in plows and various pieces of heavy equipment.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | 1 Inch |
| Length | 6 Inch |
| Thread Type | Coarse |
| Head Style | Dome |
| Finish | Plain |
Description
Description
Though available year-round there’s no better time to get new plow bolts than before the winter season is in full swing. Plow bolts have a countersunk head and square neck that prevent turning when a nut is tightened or removed. Traditional applications can be found in plows and various pieces of heavy equipment.
- Thicker domed head provides greater wear resistance
- Specialized head diameter provide for a tighter fit in countersunk holes
- Head design will fit into all applications designed for # 3 Heads
- Deeper depth of square provides fuller engagement
- Smaller transition angle on the corners of the square provides for a greater resistance against spinning in the hole during installation
- Tighter tolerance on the body diameter for sizes 5/8 and larger minimizes the potential of the bolt moving in the hole which can result in the assembly coming loose and causing rounding out of the installation holes
- Item: Plow Bolt
- Threads Per Inch: 8
Specifications
General
- Finish
- Plain
- Measurement System
- Inch
- Type
- Partial Threaded
- Material
- Medium Carbon Steel
- Origin
- Imported
Dimensions
- Diameter
- 1 Inch
- Length
- 6 Inch
- Thread Type
- Coarse
- Thread Length
- 2-1/4 Inch
- Head Diameter
- 1.557 – 1.597 Inch
- Body Diameter
- 0.983 – 1.000 Inch
- Square Width
- 1.000 – 1.031 Inch
- Square Depth
- 0.677 – 0.737 Inch
Features
- Head Style
- Dome
- Grade
- Grade 8
- Tensile Strength
- 150,000 psi
- Proof Load
- 120,000 psi
Certifications & Standards
- Standards
- ASME/ANSI B18.9 - SAE J429
