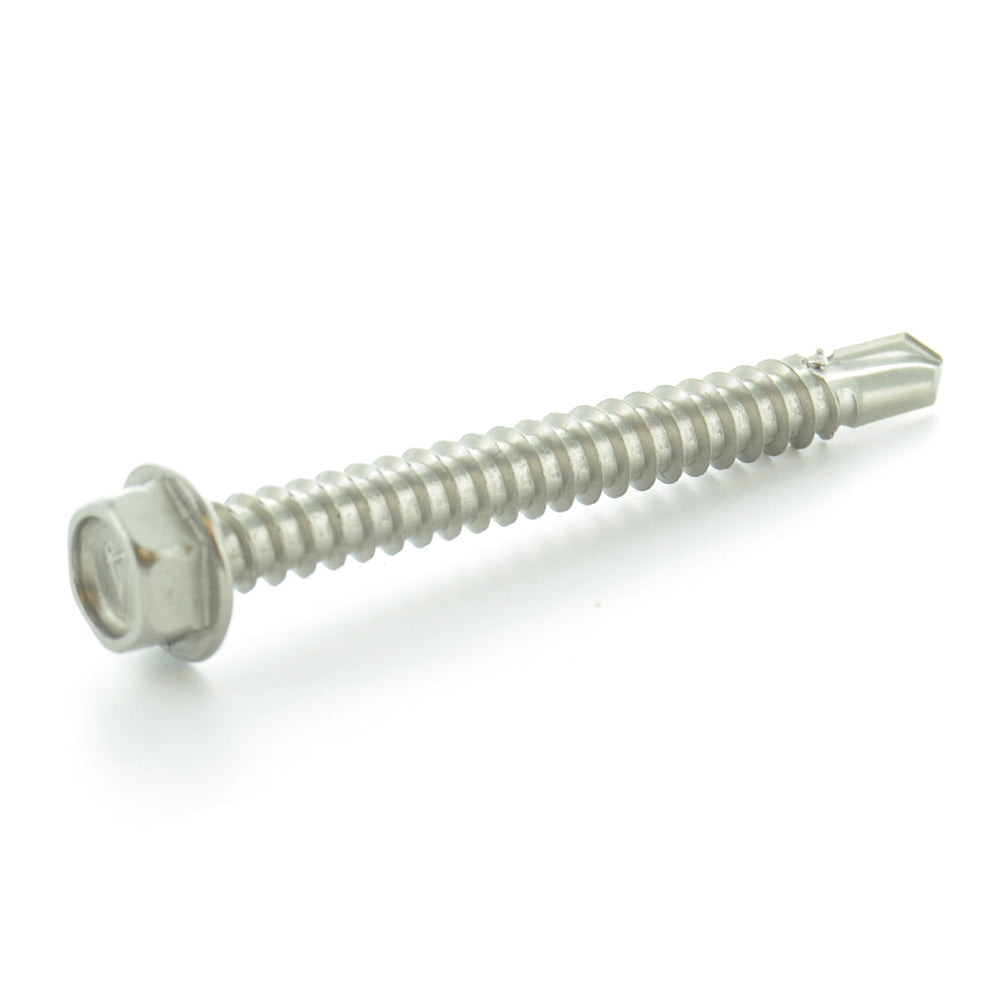

#10-16 x 1 Inch Climaseal Steel #3 Point Indented Hex Washer Head Self-Drilling Tek Screw
Item B23.02.10.1
Self drilling screws also known as TEK screws have a tip to cut through material and eliminate the need to drill a pilot hole. An indented hex washer head offers advantages of hex head plus greater protection to mating surface. Stainless steel 400 gives these screws the added benefits of higher strength and wear resistance. The passivated finish makes them much more resistant to corrosion than the original finish. These screws are typically used in metal to metal applications.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | #10 |
| Length | 1 Inch |
| Head Style | Flanged Hex/Hex Washer |
| Material | Steel |
Description
Description
Self drilling screws also known as TEK screws have a tip to cut through material and eliminate the need to drill a pilot hole. An indented hex washer head offers advantages of hex head plus greater protection to mating surface. Stainless steel 400 gives these screws the added benefits of higher strength and wear resistance. The passivated finish makes them much more resistant to corrosion than the original finish. These screws are typically used in metal to metal applications.
- Made in USA
- Teks Drill Point - Non walking cutting edges pigtail reduction Engages material faster drills with less effort safer installation
- Climaseal? - Coating provides long life protection
- ICC Approved - ESR-1976
- Item: Self-Drilling TEK Screw
Specifications
General
- Material
- Steel
- Measurement System
- Inch
- Origin
- USA
- Finish
- Climaseal
Dimensions
- Diameter
- #10
- Length
- 1 Inch
- Threads Per Inch
- 16
- Head Height
- 0.105 – 0.120 Inch
- Width Across Corner
- 0.340 Inch
- Washer Diameter
- 0.384 – 0.414 Inch
- Washer Thickness
- 0.019 – 0.031 Inch
Features
- Head Style
- Flanged Hex/Hex Washer
- Drive Style
- External Hex
- Point Type
- #3
- Tensile Strength
- 1,936 lb.
Certifications & Standards
- Standards
- ASME/ANSI B18.6.4 - SAE J78 - SAE J933
Miscellaneous
- Drill & Tap Capacity
- 0.036 – 0.175 Inch
