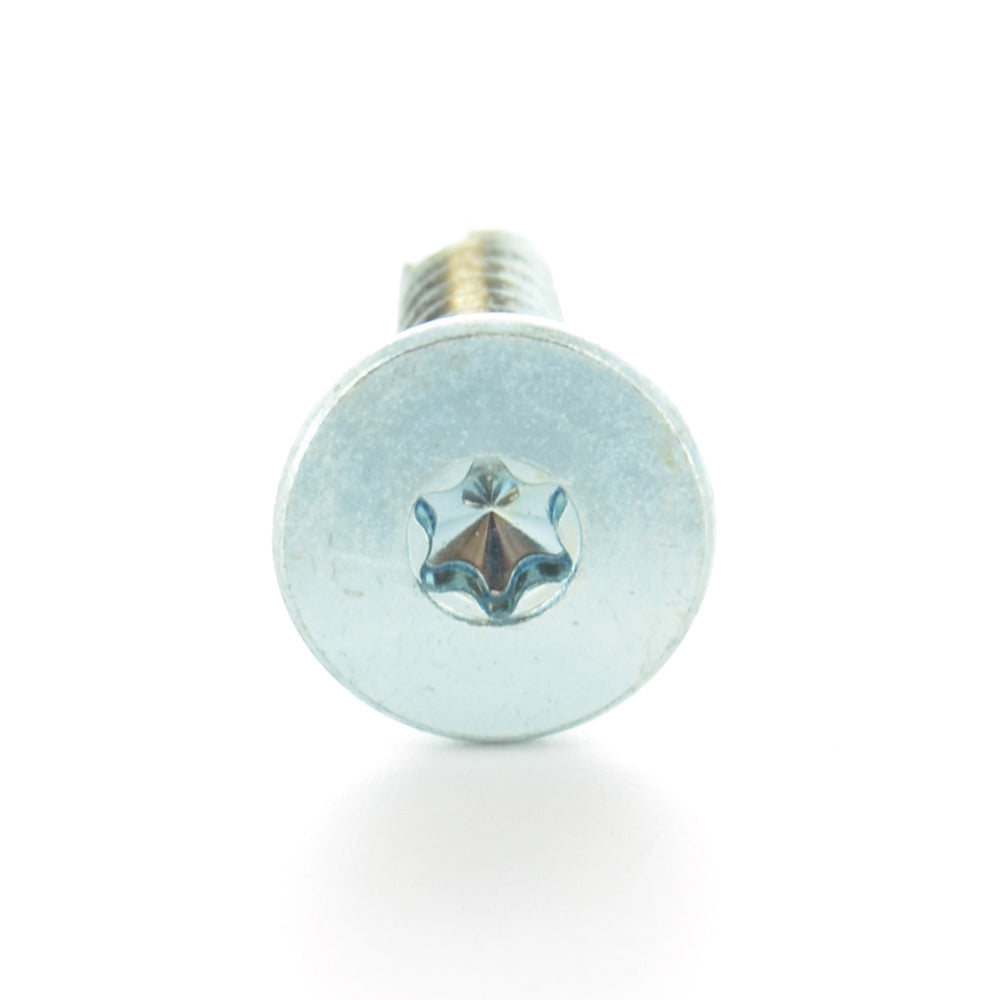

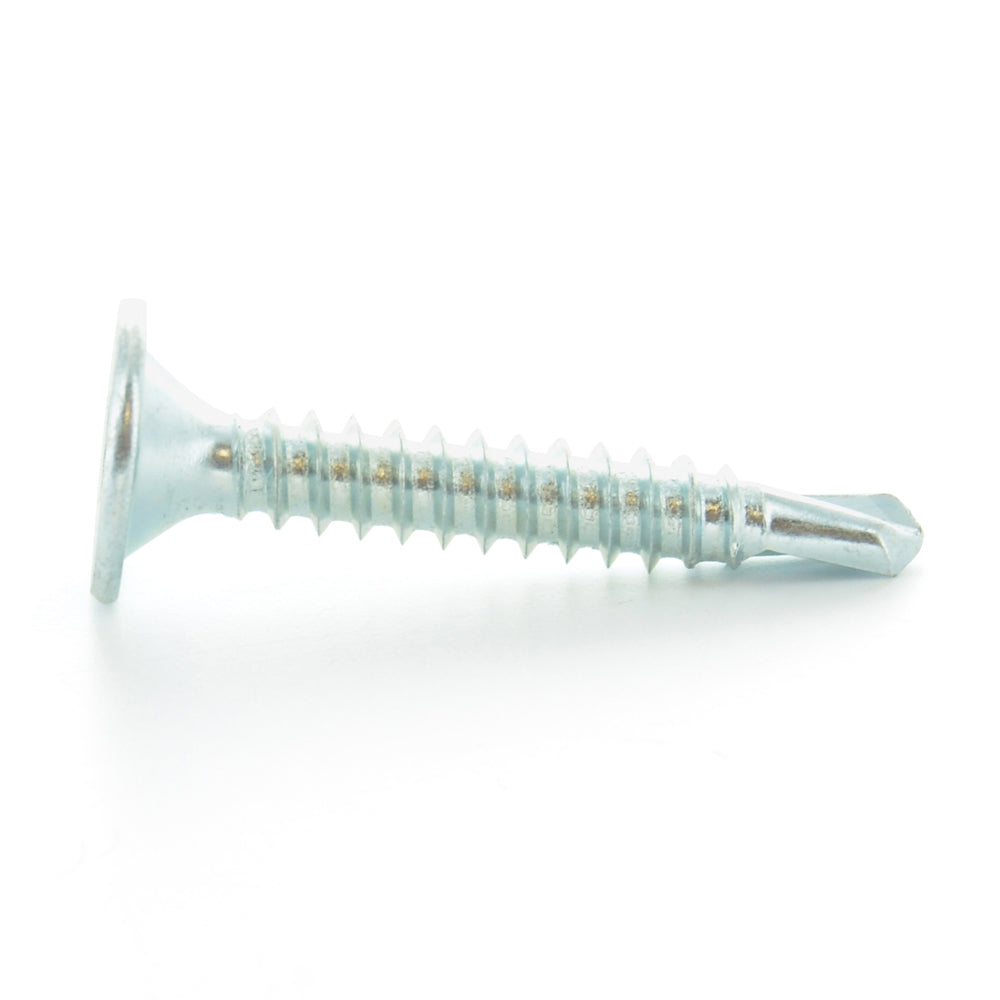

#10-16 x 1 Inch Zinc Plated Steel #3 Point Torx Wafer Head Self-Drilling Tek Screw
Item B21.1.10.1
These antitheft screws have a round head and hexagonal or Torx drive. These screws are commonly installed with an Allen wrench star screwdriver or hex key for extra security.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | #10 |
| Drive Type | Torx |
| Finish | Zinc |
| Head Style | Wafer |
| Length | 1 Inch |
| Material | Steel |
| Measurement | Inch |
Description
Description
These antitheft screws have a round head and hexagonal or Torx drive. These screws are commonly installed with an Allen wrench star screwdriver or hex key for extra security.
- Origin: Imported
- Meets ASTM B-117 for salt spray corrosion
- Attaches plywood to metal
- Drive Type: 6-Lobe/Torx
- Finish: Zinc
- Head Diameter: 0.357 - 0.373 Inch
- Head Height: 0.137 Inch
- Head Style: Wafer
- Industry Standard: ASME/ANSI B18.6.4 SAE J78
- Item: Self-Drilling TEK Screw
- Length: 1 Inch
- Material: Steel
- Measurement: Inch
- Point Type: #3
- Recess Diameter: 0.178 Inch
- Recess Penetration Gaging Depth: 0.070 Inch
- Threads Per Inch: 16
