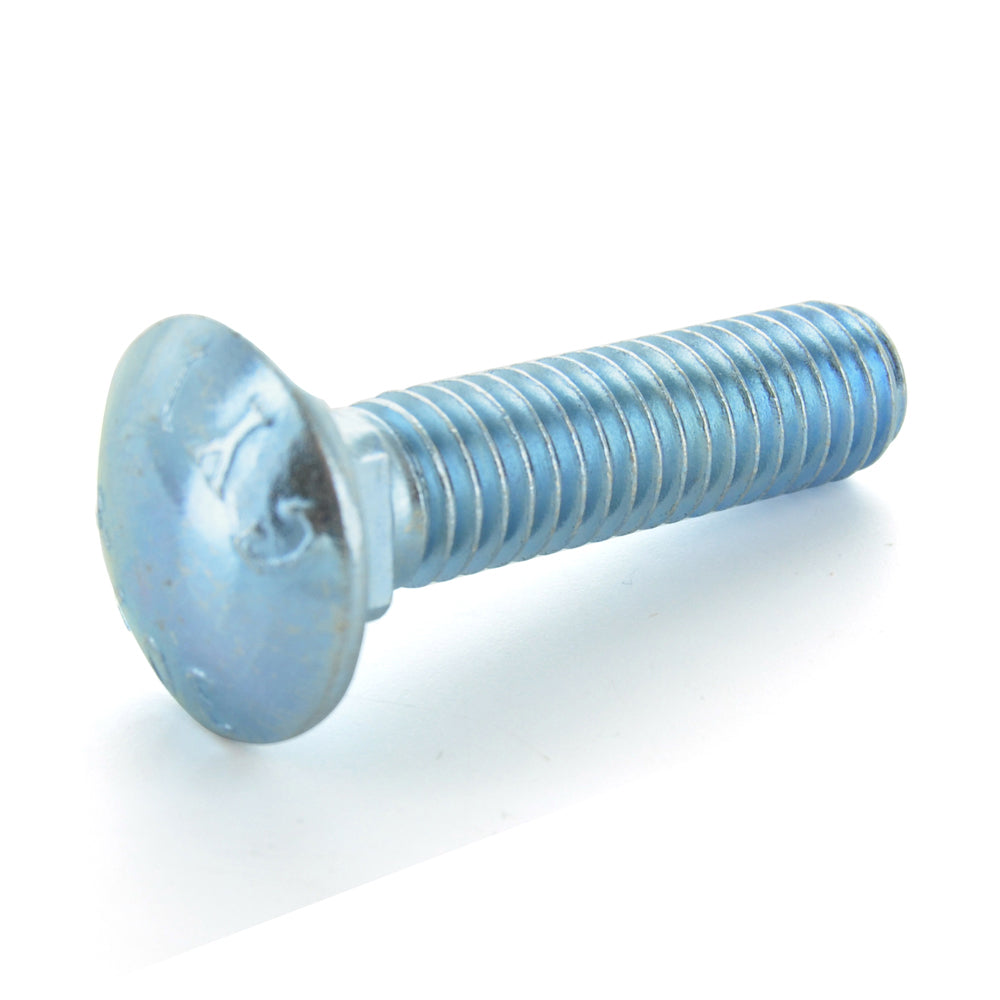

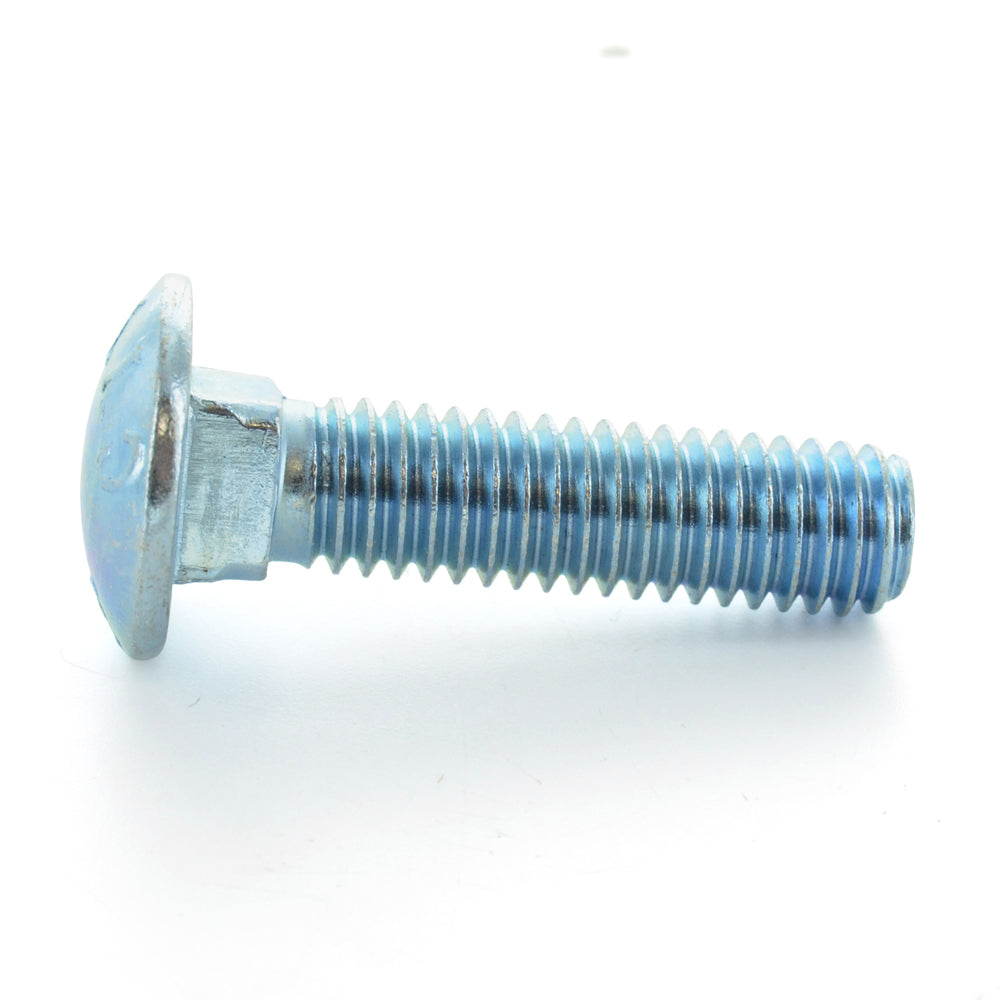

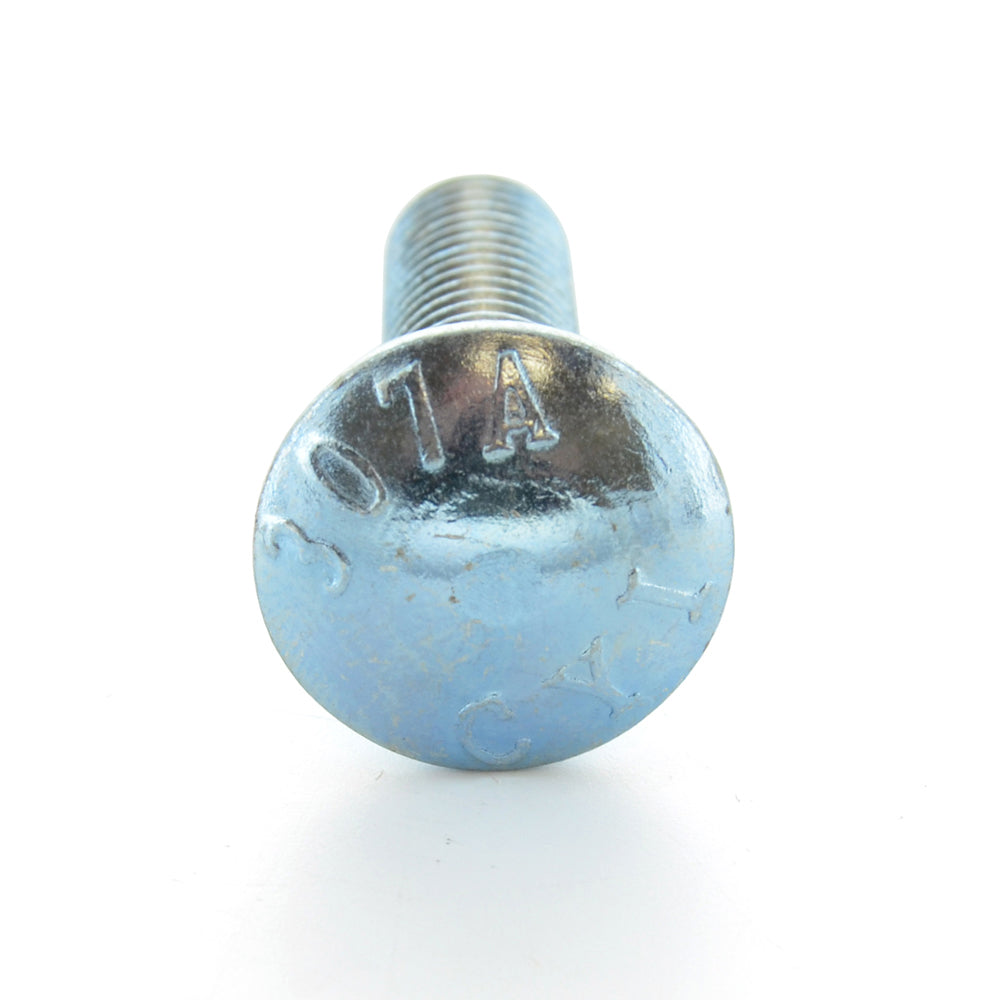

#10-24 x 1-3/4 Inch Coarse Zinc Plated A307 Grade A Round Head Carriage Bolt
Item C36.316.134
Carriage Bolts also know as a coach bolt or round head square neck bolt carriage bolts are intended for use through iron strengthening plates on either side of a wooden beam. It is commonplace to use them into bare timber. Carriage bolts have a squared section under their round head that grip to prevent rotation
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | #10 |
| Length | 1-3/4 Inch |
| Thread Type | Coarse |
| Head Style | Round |
| Material | Steel |
| Finish | Zinc |
Description
Description
Carriage Bolts also know as a coach bolt or round head square neck bolt carriage bolts are intended for use through iron strengthening plates on either side of a wooden beam. It is commonplace to use them into bare timber. Carriage bolts have a squared section under their round head that grip to prevent rotation
- Also know as a coach bolt or round head square neck bolt carriage bolts are intended for use through iron strengthening plates on either side of a wooden beam
- It is commonplace to use them into bare timber
- Carriage bolts have a squared section under their round head that grip to prevent rotation
- Finish as per ASTM F1941 Fe/Zn 3AT
- Grade: A
- Item: Carriage Bolt
Specifications
General
- Finish
- Zinc
- Material
- Steel
- Measurement System
- Inch
- Type
- Full Threaded
- Origin
- Imported
Dimensions
- Diameter
- #10
- Length
- 1-3/4 Inch
- Thread Type
- Coarse
- Threads Per Inch
- 24
- Thread Length
- 1-3/4 Inch
- Head Diameter
- 0.436 – 0.469 Inch
- Head Height
- 0.094 – 0.114 Inch
- Body Diameter
- 0.159 – 0.199 Inch
- Square Width
- 0.185 – 0.199 Inch
- Square Depth
- 0.094 – 0.125 Inch
Features
- Grade
- A307
- Head Style
- Round
Certifications & Standards
- Standards
- ASME/ANSI B18.5 - ASTM A307
