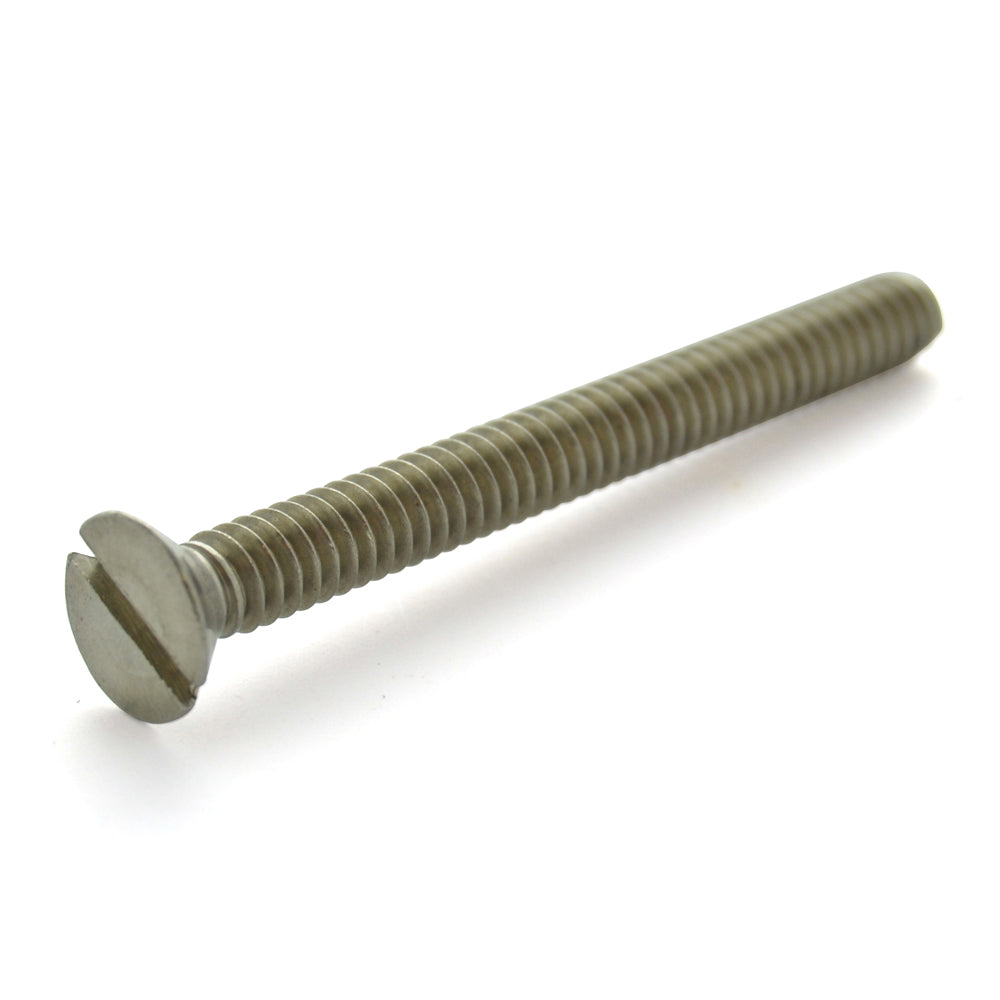

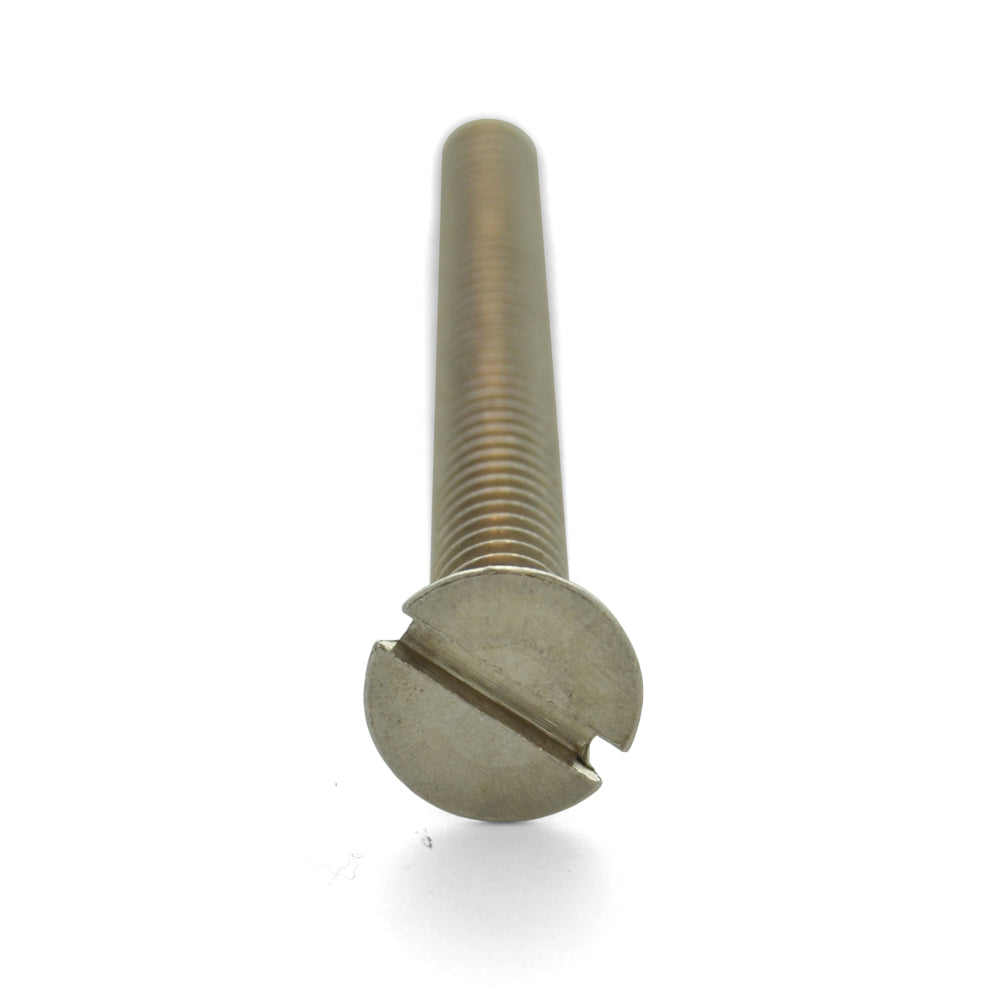

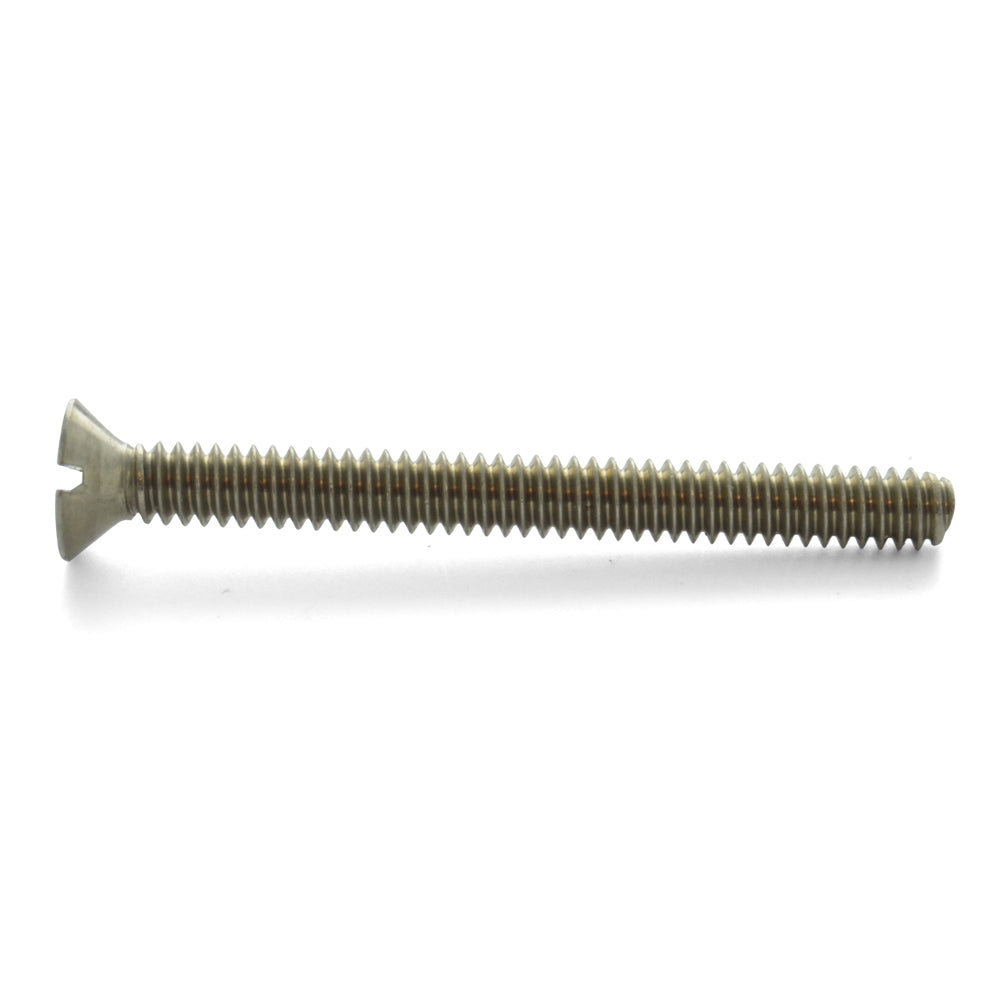

#10-24 x 3/4 Inch Coarse Plain 18-8 (A2) Stainless Steel Slotted Drive Flat Countersunk Head Machine Screw
Item A37.10.34
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
These machine screws have deeply sunk heads with flat top surfaces for fastening flatly against sides of metal joints and equipment. These screws sit flush against the surface of panels and electrical components for a finished look.
- Drive Type: Slotted
- Finish: Plain
- Head Diameter: 0.333 - 0.362 Inch
- Head Height: 0.116 Inch
- Head Style: Flat
- Head Type: Flat Countersunk
- Industry Standard: ASME B18.6.3-2010
- Item: 0.032 Inch
- Length: 3/4 Inch
- Material: 18-8 (A2) Stainless Steel
- Measurement: Inch
- Origin: Imported
- Slot Depth: 0.034 - 0.053 Inch
- Slot Width: 0.050 - 0.060 Inch
- Specification: ASME B18.6.3-2010
- Thread Length: 3/4 Inch
- Thread Type: Coarse
- Threads Per Inch: 24
- Type: Full Threaded
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | #10 |
| Drive Type | Slotted |
| Finish | Plain |
| Head Style | Flat |
| Length | 3/4 Inch |
| Material | 18-8 Stainless Steel |
| Measurement | Inch |
| Thread Type | Coarse |
