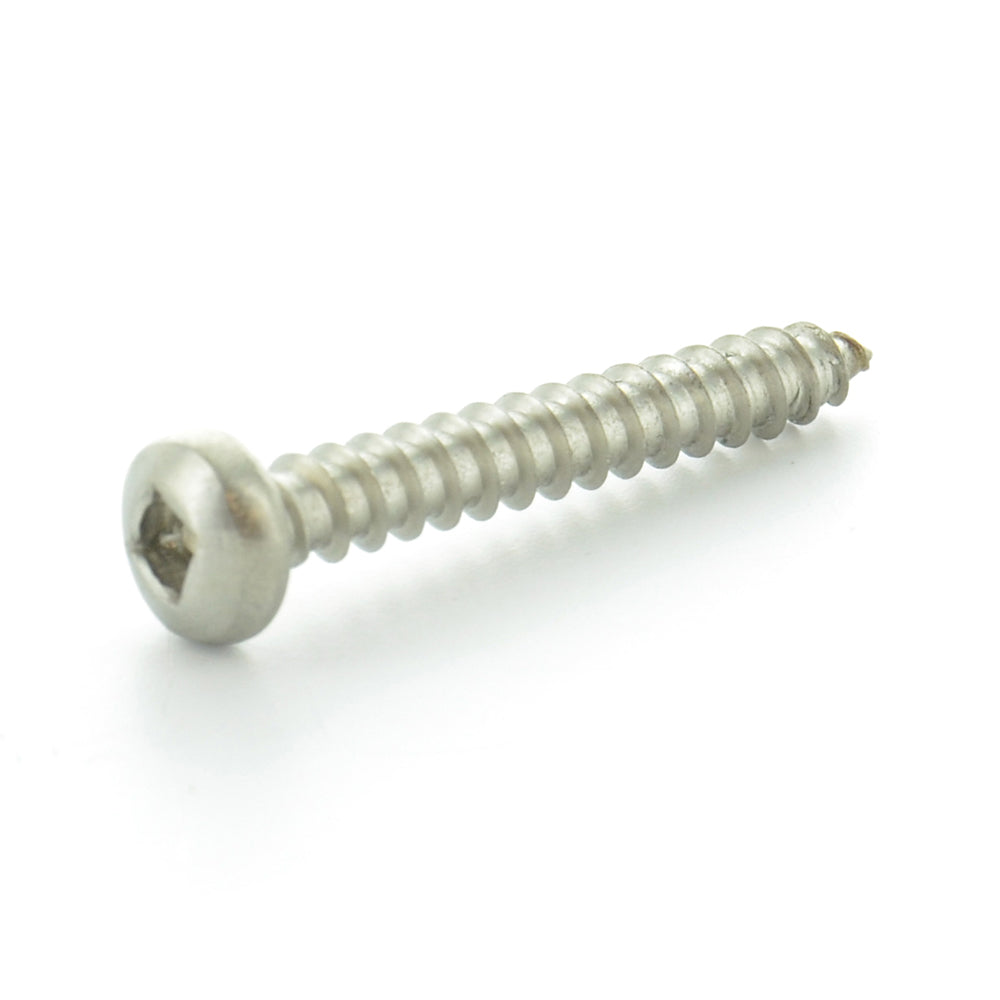

#10 x 1-1/2 Inch Plain 18-8 (A2) Stainless Steel Pan Head Type Ab Self-Tapping Sheet Metal Screw
Item B18.0.10.112
Pan head design is slightly rounded with minimal vertical sides. Square drive is designed to reduce the risk of stripping and allow single-handed installation. Additionally reduces the ability to tamper with the fastener once installed.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | #10 |
| Drive Type | Square |
| Head Style | Pan |
| Length | 1-1/2 Inch |
| Material | 18-8 Stainless Steel |
| Measurement | Inch |
| Point Type | Drill Point |
Description
Description
Pan head design is slightly rounded with minimal vertical sides. Square drive is designed to reduce the risk of stripping and allow single-handed installation. Additionally reduces the ability to tamper with the fastener once installed.
- Origin: Imported
- Pan Head Style: For general applications
- Can be substituted in most applications for round truss or binding heads
- Drive Type: Square
- Finish: Plain
- Head Diameter: 0.357 - 0.373 Inch
- Head Height: 0.099 - 0.110 Inch
- Head Style: Pan
- Industry Standard: ASME/ANSI B18.6.4 SAE J78
- Item: Self-Tapping Sheet Metal Screw
- Length: 1-1/2 Inch
- Material: 18-8 (A2) Stainless Steel
- Measurement: Inch
- Origin: Imported
- Point Type: Type-AB
- Recess Across Flat: 0.112 Inch
- Recess Penetration Gagging Depth: 0.060 - 0.075 Inch
- Specification: ASME/ANSI B18.6.4 SAE J78
