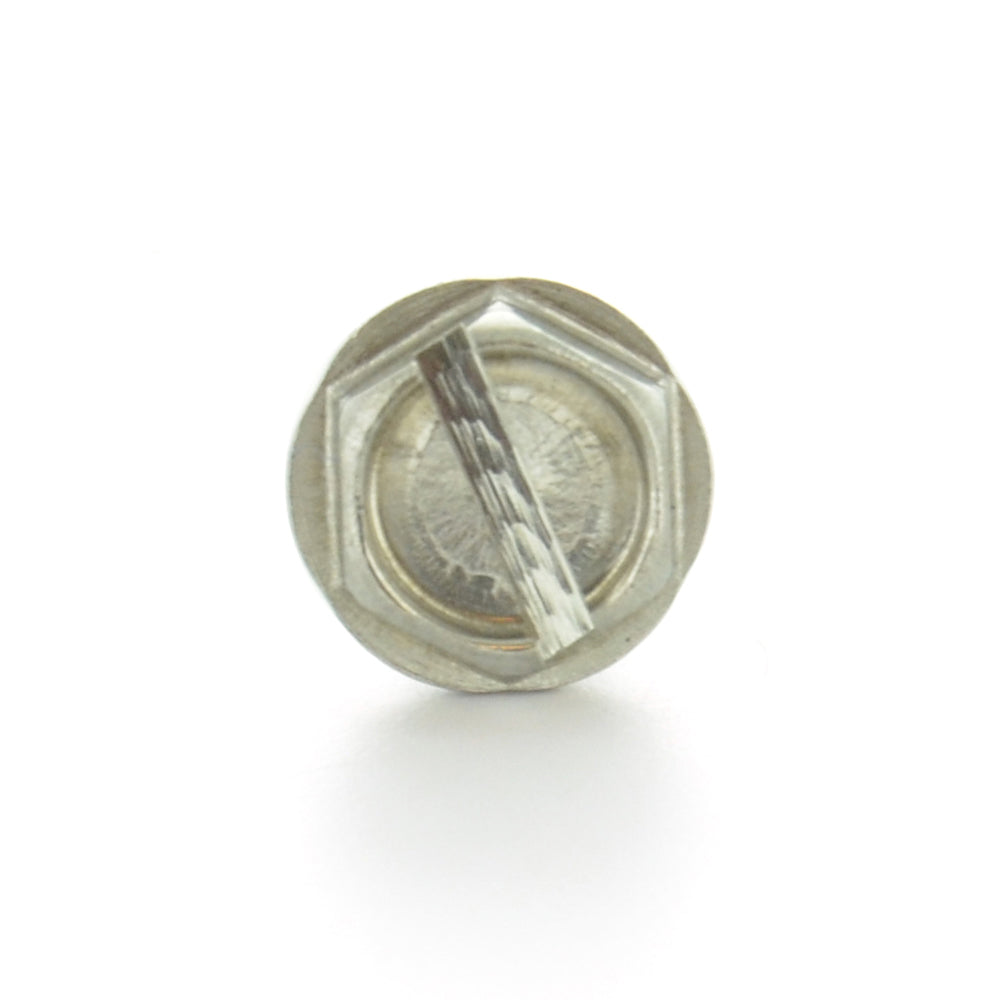

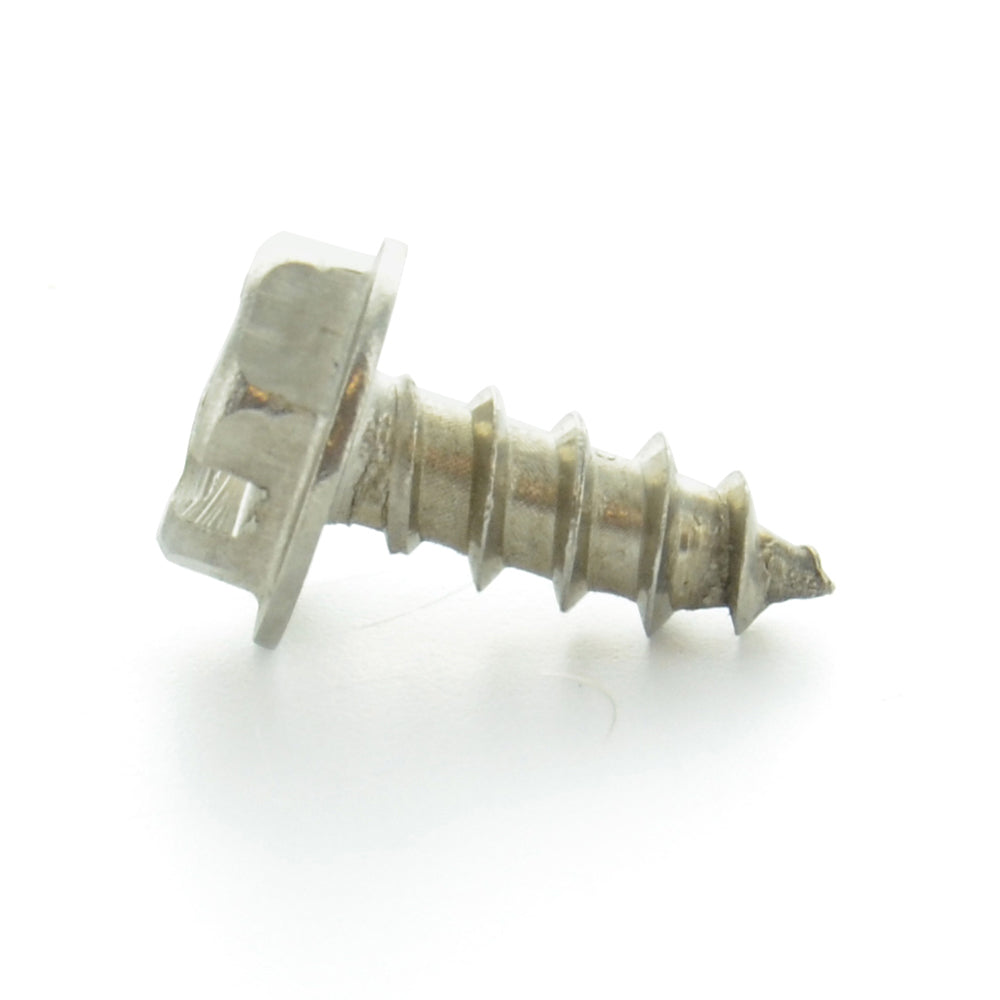

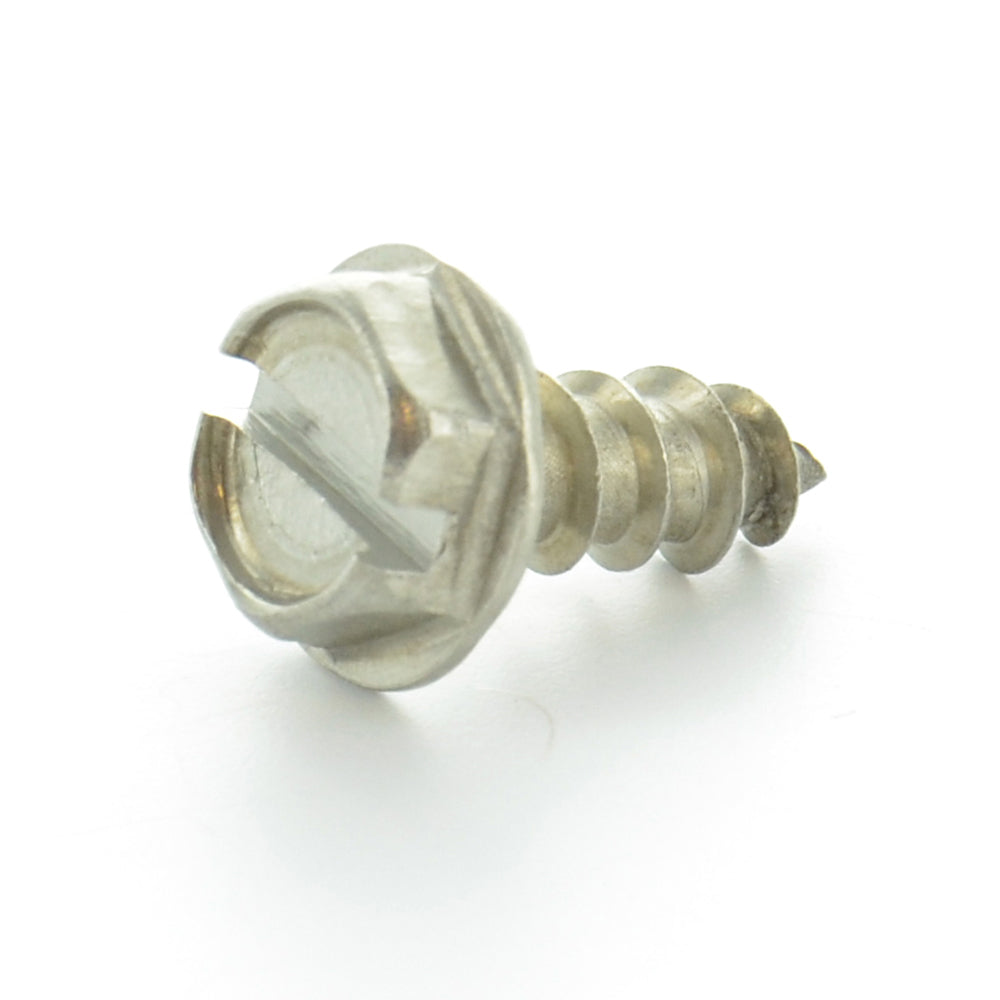

#10 x 1 Inch Plain 316 (A4) Stainless Steel Indented Hex Washer Head Type AB Self-Tapping Sheet Metal Screw
Item C25.09.10.1
A/AB Sheet Metal Screws- Sheet metal screws are engineered for connecting thinner metal objects to one another or connecting metal to wood plastic and other materials. Many sheet metal screws can start their own hole. Type A sheet metal screws have wider spaced threads for self-starting in thinner metal or plywood. Type AB sheet metal screws have more threads per inch and are more effective in brittle materials than Type A.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | #10 |
| Length | 1 Inch |
| Head Style | Flanged Hex/Hex Washer |
| Drive Type | Hex/Slotted |
| Material | Stainless Steel 18-8 (A2) |
| Point Type | Drill Point |
Description
Description
A/AB Sheet Metal Screws- Sheet metal screws are engineered for connecting thinner metal objects to one another or connecting metal to wood plastic and other materials. Many sheet metal screws can start their own hole. Type A sheet metal screws have wider spaced threads for self-starting in thinner metal or plywood. Type AB sheet metal screws have more threads per inch and are more effective in brittle materials than Type A.
- Item: Self-Tapping Sheet Metal Screw
Specifications
General
- Material
- Stainless Steel 18-8 (A2)
- Measurement System
- Inch
- Origin
- Imported
- Finish
- Plain
Dimensions
- Diameter
- #10
- Length
- 1 Inch
- Head Height
- 0.105 – 0.120 Inch
- Width Across Corner
- 0.340 Inch
- Slot Width
- 0.050 – 0.060 Inch
- Slot Depth
- 0.057 – 0.080 Inch
- Washer Diameter
- 0.384 – 0.414 Inch
- Washer Thickness
- 0.019 – 0.031 Inch
Features
- Drive Type
- Hex/Slotted
- Head Style
- Flanged Hex/Hex Washer
- Point Type
- Drill Point
Certifications & Standards
- Standards
- ASME/ANSI B18.6.4 - SAE J78
