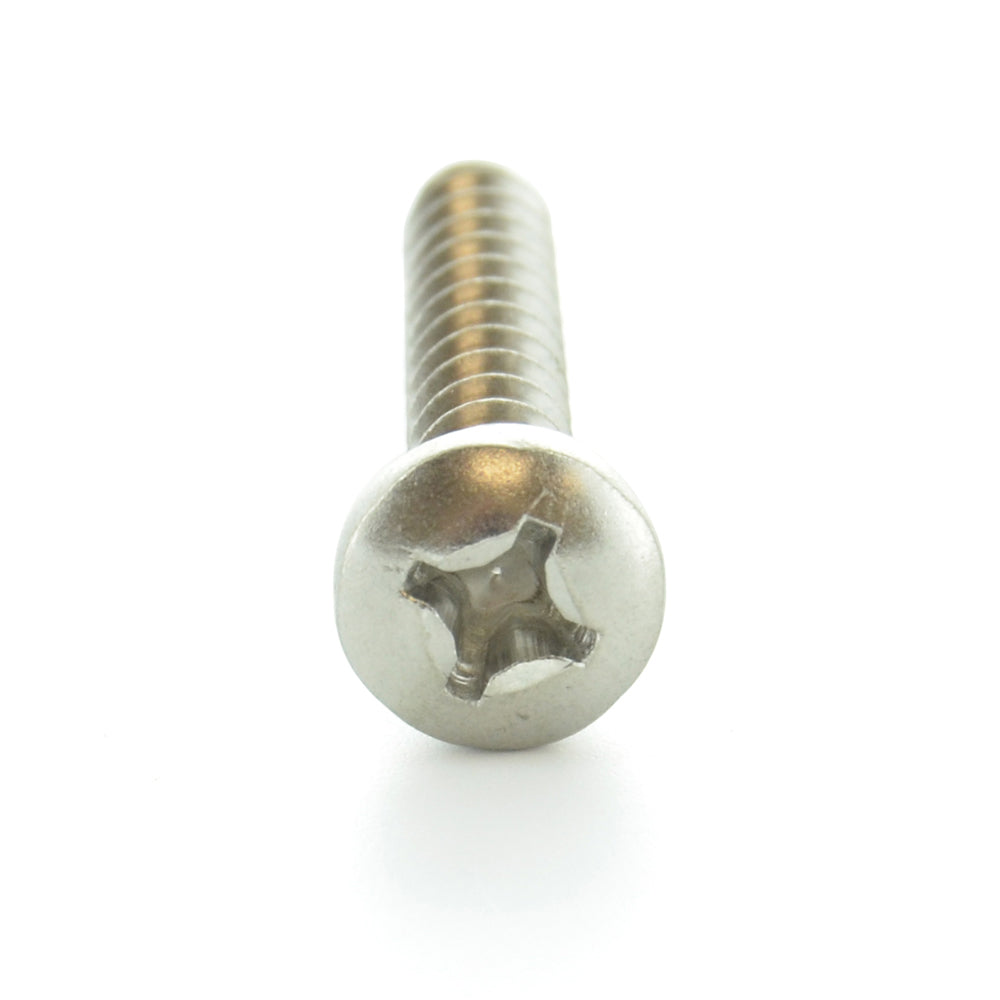

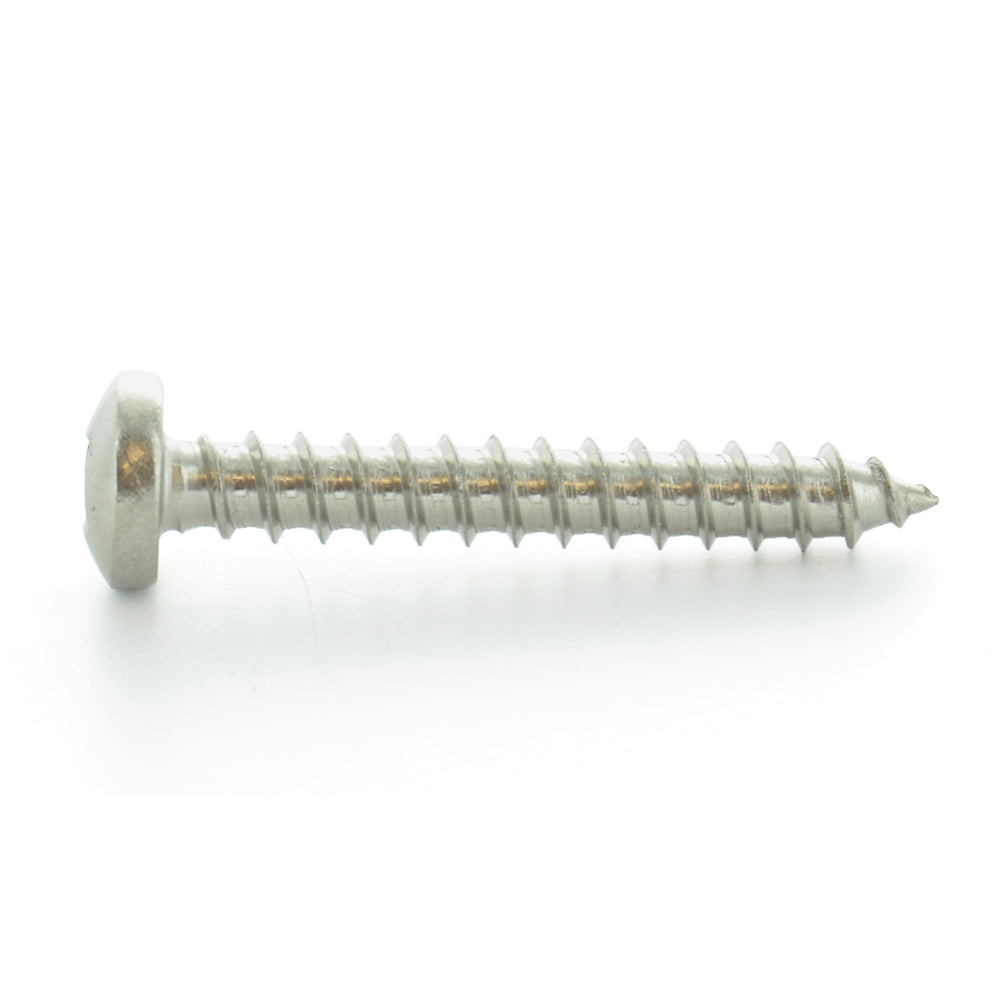

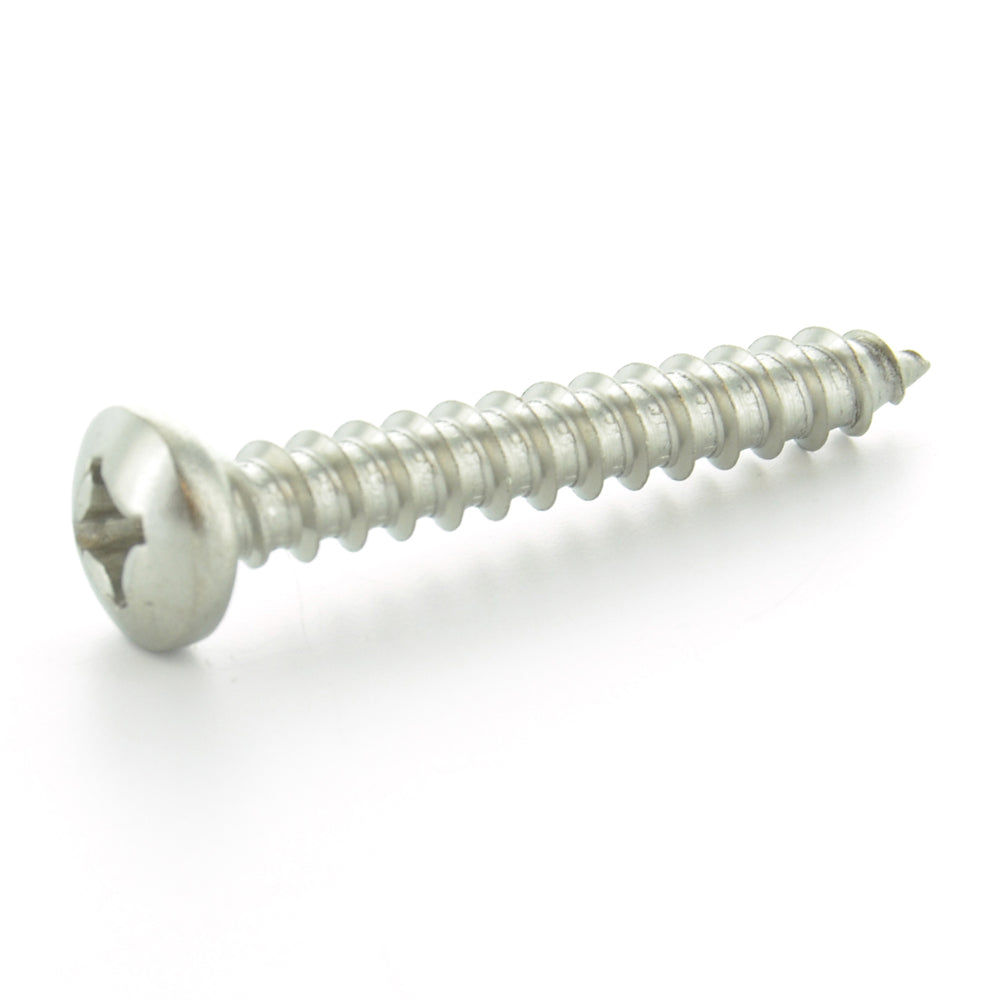

#10 x 5/8 Inch Plain 18-8 (A2) Stainless Steel Pan Head Type-A Self-Tapping Sheet Metal Screw

Item B18.10.58

$0.20
$0.20
/ Each

Please note that this product is sold in multiples of 1
Ships in 1 day
Free shipping

Free Shipping On All Orders Over $15

We Stand Behind Our Products

with our 100% quality assurance guarantee.

Description

Pan head design is slightly rounded with minimal vertical sides. Square drive is designed to reduce the risk of stripping and allow single-handed installation. Additionally reduces the ability to tamper with the fastener once installed.

  • Origin: Imported
  • Pan Head Style: For general applications
  • Can be substituted in most applications for round truss or binding heads
  • Phillips Drive: Most recommended drive type Provides good control in driving
  • Always use a driver bit of the proper size which is in good condition
  • Drive Type: Phillips
  • Finish: Plain
  • Head Diameter: 0.357 - 0.373 Inch
  • Head Height: 0.099 - 0.110 Inch
  • Head Style: Pan
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Tapping Sheet Metal Screw
  • Length: 5/8 Inch
  • Material: 18-8 (A2) Stainless Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: Type-A
  • Recess Diameter: 0.192 Inch
  • Recess Penetration Gagging Depth: 0.089 - 0.113 Inch
  • Specification: ASME/ANSI B18.6.4 SAE J78
  • Type: Full Threaded

Photographs are representational and may not be size accurate.
