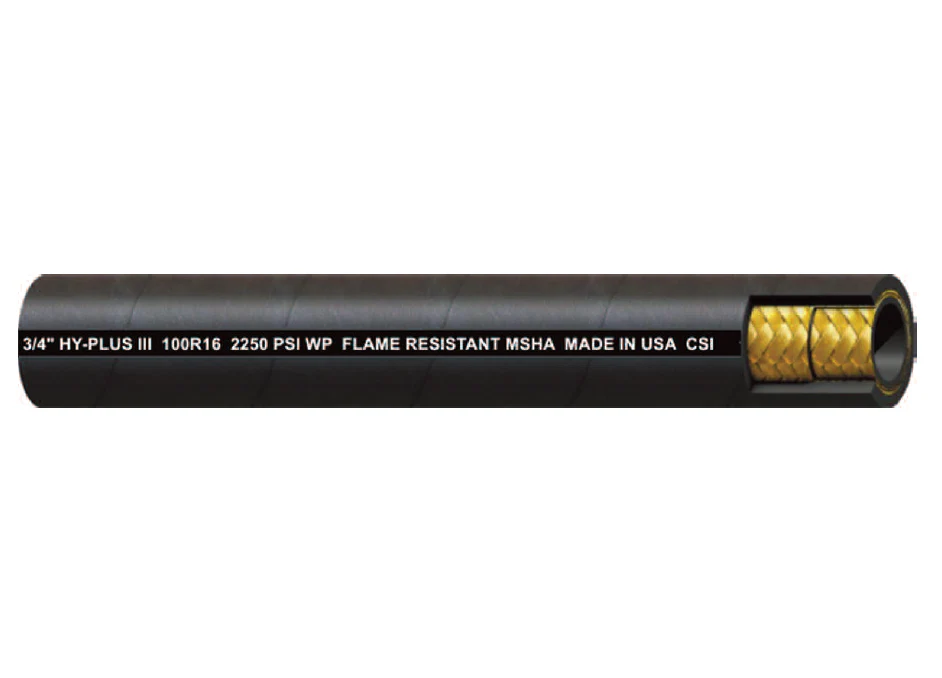

100R16/2Sc Industrial / Agricultural 2-Wire Braided High Pressure Hydraulic Hose 1/2 Inch - Sold Per Foot
Item J97.016.8.1
100R16/2SC Hydraulic Hose is recommended for hydraulic system service with petroleum and water-base fluids or general industrial service. Hose Features Include Oil-resistant Synthetic Rubber Inner Tubing Reinforced 2-Wire braid of high tensile steel wire. Oil and Abrasion-Resistant synthetic rubber outer cover protection. Same working pressure & Half the bend radius of SAE 100R2. Interchanges with Aeroquip GH781-10 Gates 10M2T Parker 431-10 and Weatherhead H24510
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Description
Description
100R16/2SC Hydraulic Hose is recommended for hydraulic system service with petroleum and water-base fluids or general industrial service. Hose Features Include Oil-resistant Synthetic Rubber Inner Tubing Reinforced 2-Wire braid of high tensile steel wire. Oil and Abrasion-Resistant synthetic rubber outer cover protection. Same working pressure & Half the bend radius of SAE 100R2. Interchanges with Aeroquip GH781-10 Gates 10M2T Parker 431-10 and Weatherhead H24510
- Spec: SAE 100R16 / DIN 2SC MSHA
- Applications: High Pressure Hydraulics Industrial or Agricultural
- Cover: Abrasion and Flame Resistant Cover MSHA approved
- Reinforcement: Two Wire Braids
- Temperature: -40F to +212F (-40C to +100C)
- Coupling Series: Vari-Crimp (1/4”-5/8”) A-Series Grip-Crimp
- Inside Diameter - 1/2"
- Outside Diameter - 0.812"
- Maximum Working Pressure - 4 250 PSI
- Minimum Burst Pressure - 17 000 PSI
- Minimum Bend Radius - 3.5"
- ** Crimps to 100R1AT One Wire Thin Cover Specifications - Tighter Bend Radius than R1 and R2 **
Specifications
Dimensions
- Inside Diameter
- 1/2 Inch
