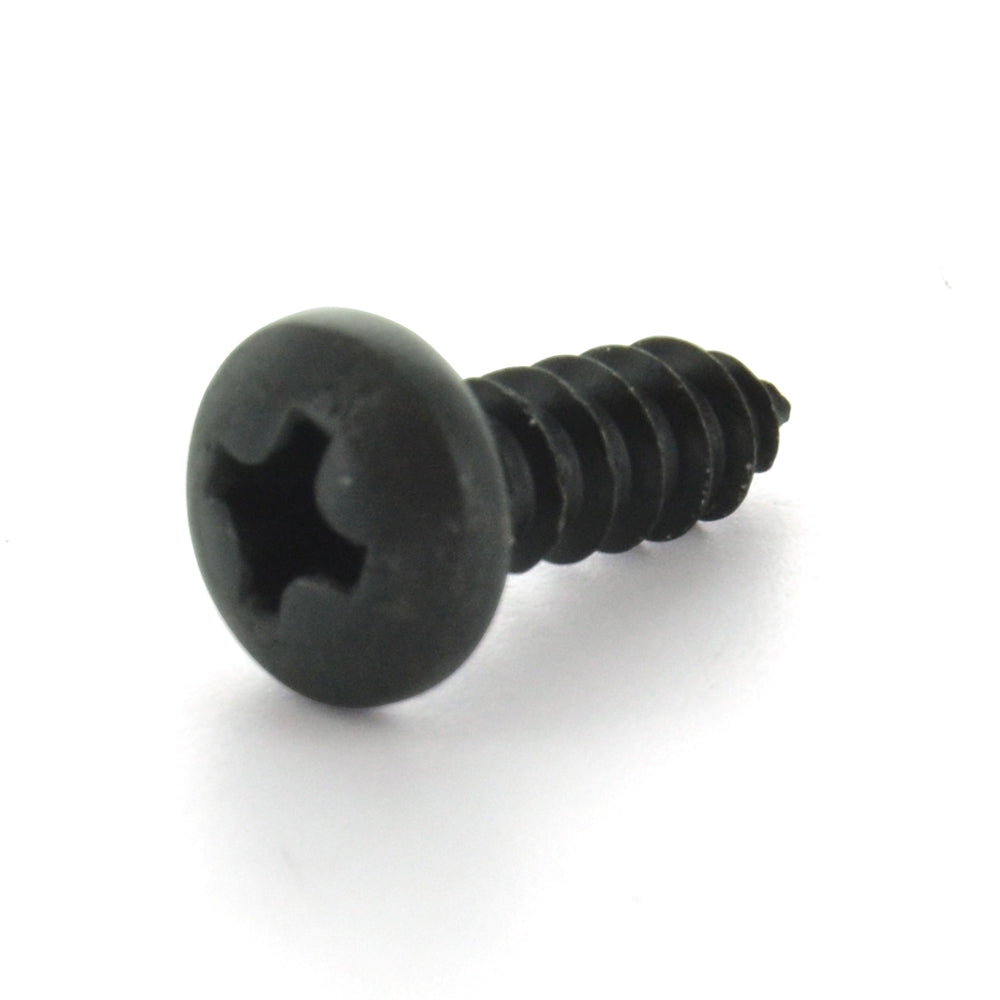

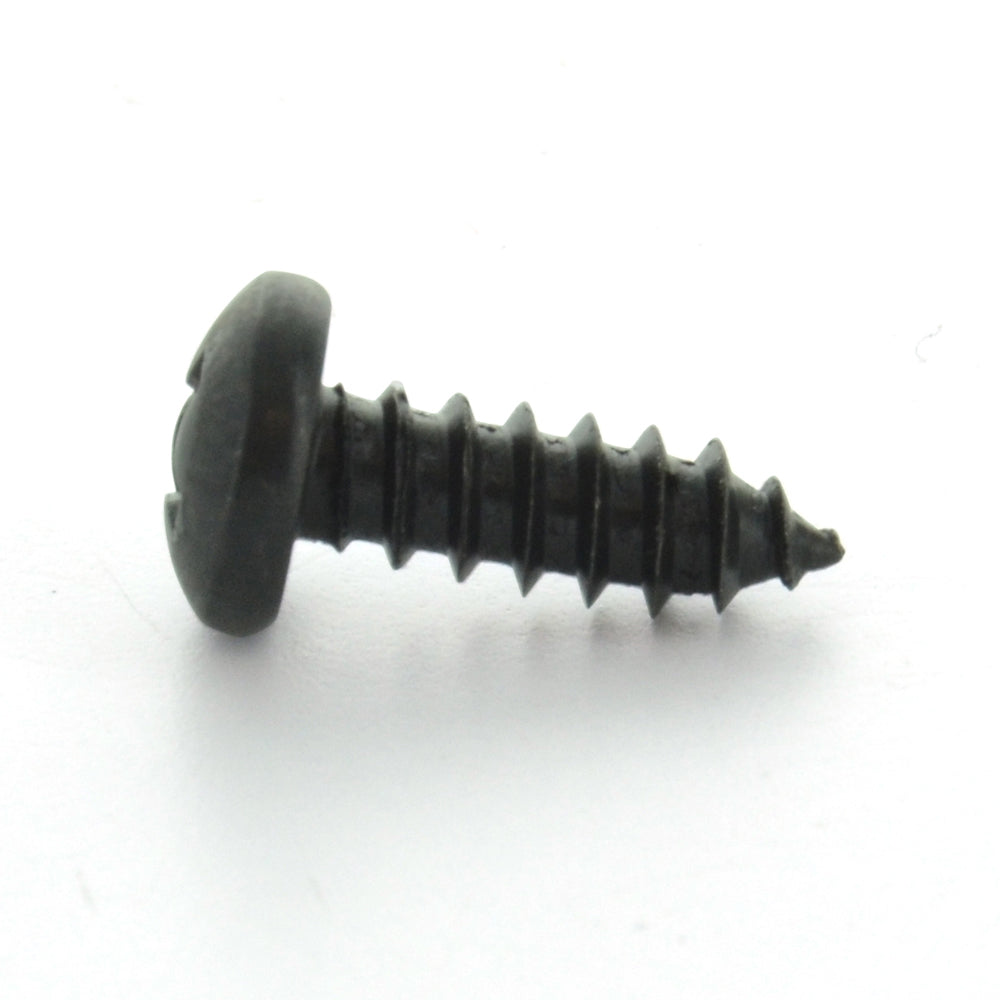

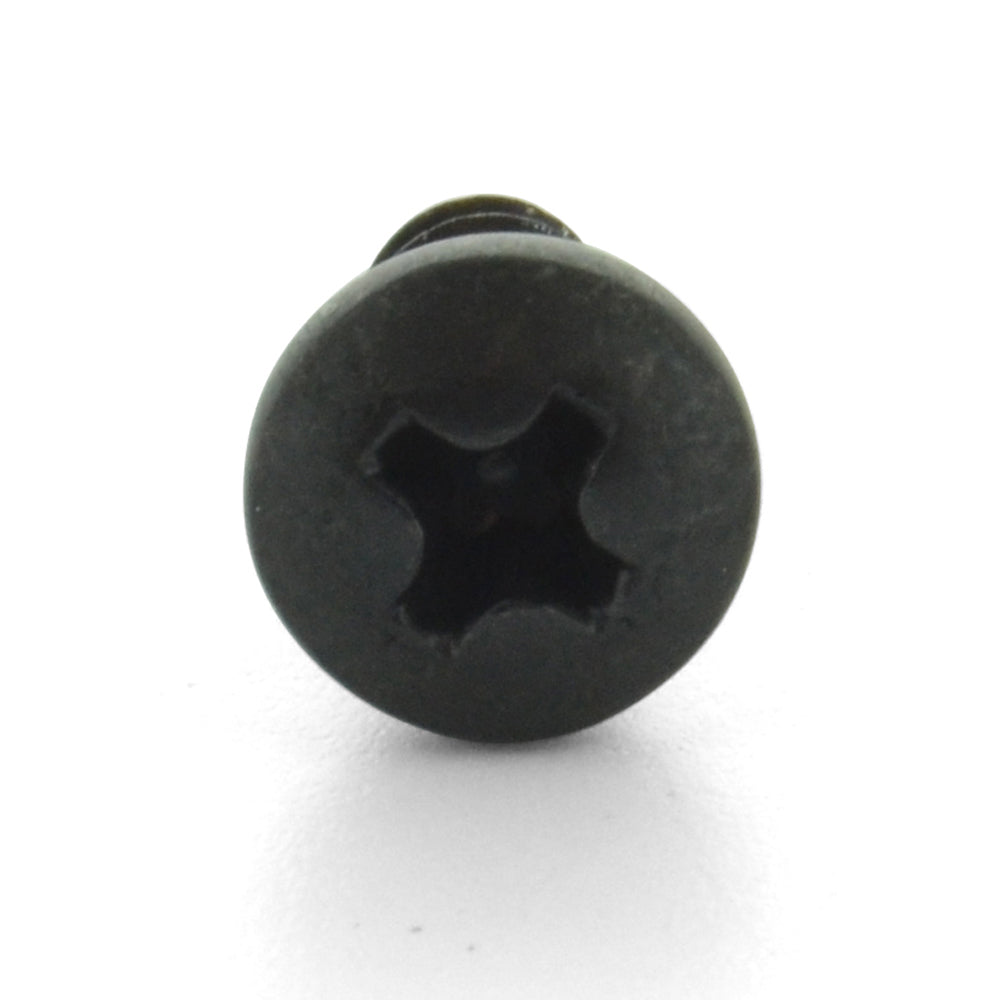

10X7/8 Pan Head Phillipslips Sheet Metal Screw Ab Black Oxide
Item B34.48.22
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
10X7/8 Ph Pan SMS Ab Blk Ox is designed for professional and industrial use in maintenance, repair, and operations (MRO) applications. Built for reliable performance in demanding environments. Contact OneSource for bulk pricing and availability.
- Origin: Imported
- Pan Head Style: For general applications
- Can be substituted in most applications for round truss or binding heads
- Phillipslips Drive: Most recommended drive type Provides good control in driving
- Always use a driver bit of the proper size which is in good condition
- Drive Type: Phillipslips
- Finish: Black Oxide
- Head Diameter: 0.357 - 0.373 Inch
- Head Height: 0.099 - 0.110 Inch
- Head Style: Pan
- Industry Standard: ASME/ANSI B18.6.4 SAE J78
- Item: Self-Tapping Sheet Metal Screw
- Length: 7/8 Inch
- Material: Alloy Steel
- Measurement: Inch
- Origin: Imported
- Point Type: Type-AB
- Recess Diameter: 0.192 Inch
- Recess Penetration Gagging Depth: 0.089 - 0.113 Inch
- Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933
