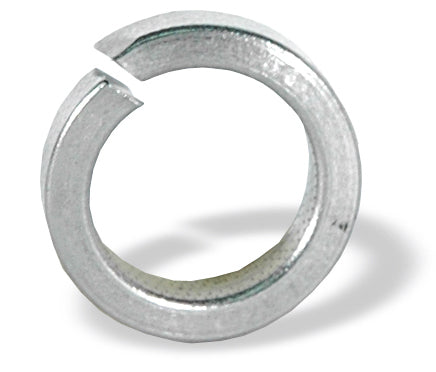

#12 Plain 18-8 Stainless Steel Split Lock Washer
Item E44.012
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | #12 |
| Material | Stainless Steel 18-8 (A2) |
| Washer Type | Split Lock |
Description
Description
From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.
- Item: Split Lock Washer
Specifications
General
- Material
- Stainless Steel 18-8 (A2)
- Measurement System
- Inch
- Type
- Regular
- Finish
- Plain
- Origin
- Imported
Dimensions
- Diameter
- #12
- Thickness
- 0.056 Inch
- Outside Diameter
- 0.377 Inch
- Inside Diameter
- 0.220 – 0.227 Inch
- Nominal Size
- #12
- Section Width
- 0.070 Inch
- Bearing Width
- 0.049 Inch
Features
- Washer Type
- Split Lock
- Grade
- 18-8
Certifications & Standards
- Standards
- ASME/ANSI B18.21.1
