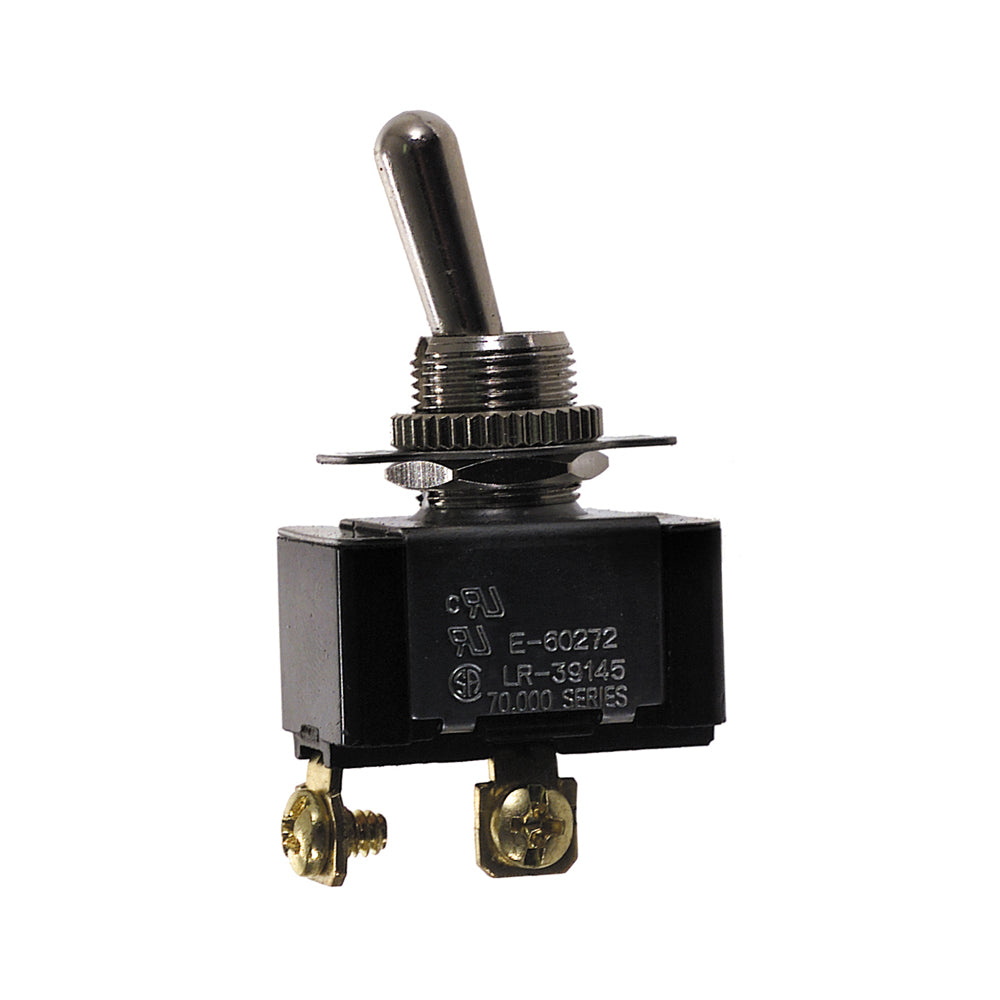

12 Volt Dc 20 Amp 4-Positions Dpst On/Off 4-Blades Terminal Heavy Duty Toggle Switch
Item H77.1.16
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
A DPST (double pole single throw) switch has two closed contact positions energizing two circuits at the same time. the circuits must be from separate sources. Because it is single throw it has one ON position an OFF-ON switch.
- Plastic housing with plated steel cap
- Nickel plated brass stem and mounting hardware
- Mounting stem 15/32”-32 thd. 15/32” (11.90mm) long with keyway
- Nickle plated brass handles 11/16” (17.46mm) long except for 777.1.2 which has a 1 - 1/2” handle
- Fits panels up to 1/4” (6.35mm) thick.
- Silver contacts for dependable electrical operations
- 12V (DC) - 25 amps lamp load
- 12V (dc) - 35 amps inductive load
- 125V (AC) - 15 amps
- 250V (AC) - 10 amps
