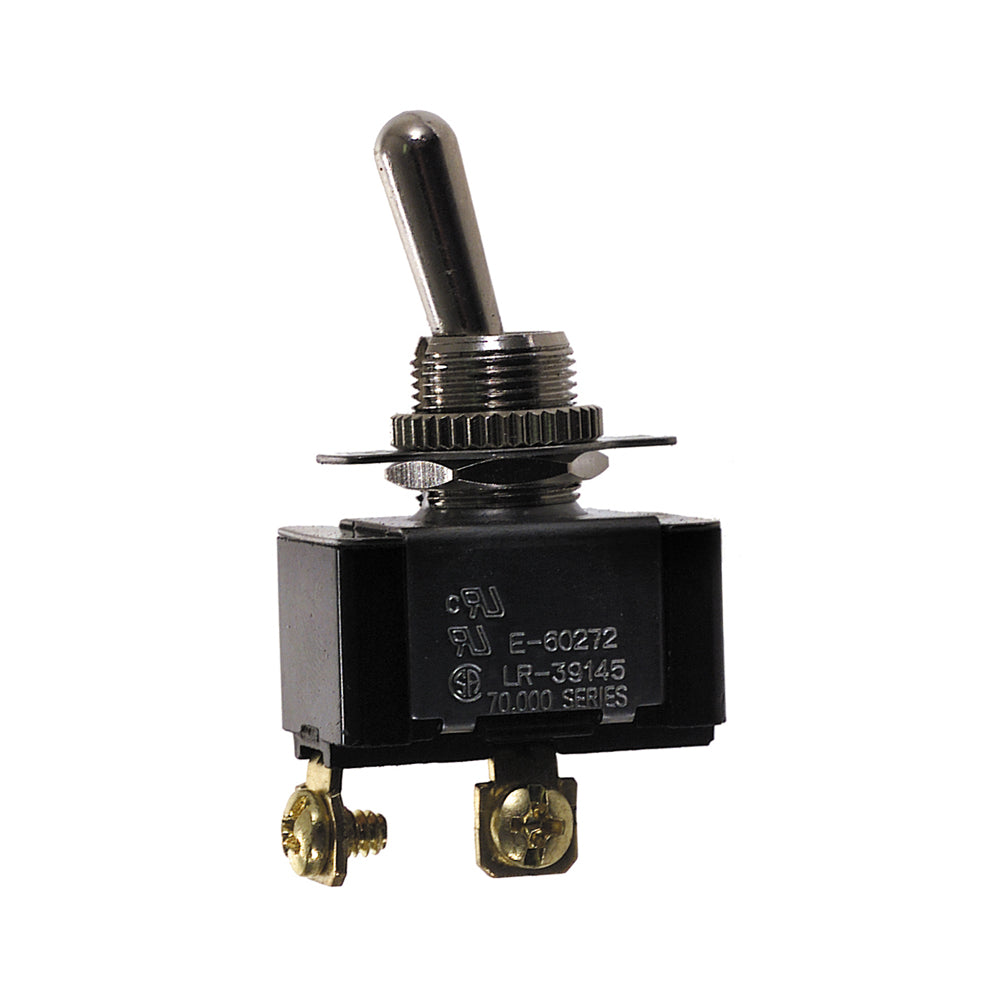

12 Volt Dc 20 Amp 4-Positions Dpst On/Off 4-Screws Terminal Heavy Duty Toggle Switch
Item H77.1.15
A DPST (double pole single throw) switch has two closed contact positions energizing two circuits at the same time. the circuits must be from separate sources. Because it is single throw it has one ON position an OFF-ON switch.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Description
Description
A DPST (double pole single throw) switch has two closed contact positions energizing two circuits at the same time. the circuits must be from separate sources. Because it is single throw it has one ON position an OFF-ON switch.
- Plastic housing with plated steel cap
- Nickel plated brass stem and mounting hardware
- Mounting stem 15/32”-32 thd. 15/32” (11.90mm) long with keyway
- Nickle plated brass handles 11/16” (17.46mm) long except for 777.1.2 which has a 1 - 1/2” handle
- Fits panels up to 1/4” (6.35mm) thick.
- Silver contacts for dependable electrical operations
- 12V (DC) - 25 amps lamp load
- 12V (dc) - 35 amps inductive load
- 125V (AC) - 15 amps
- 250V (AC) - 10 amps
