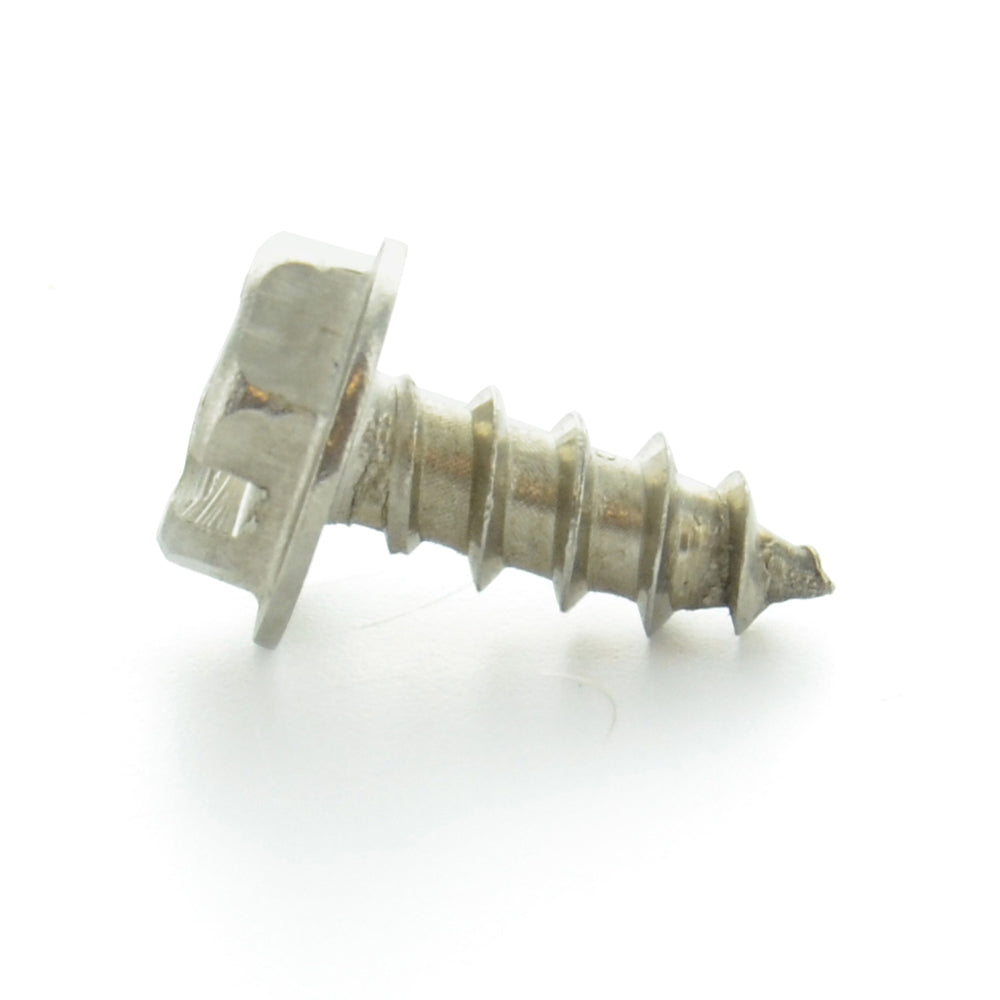

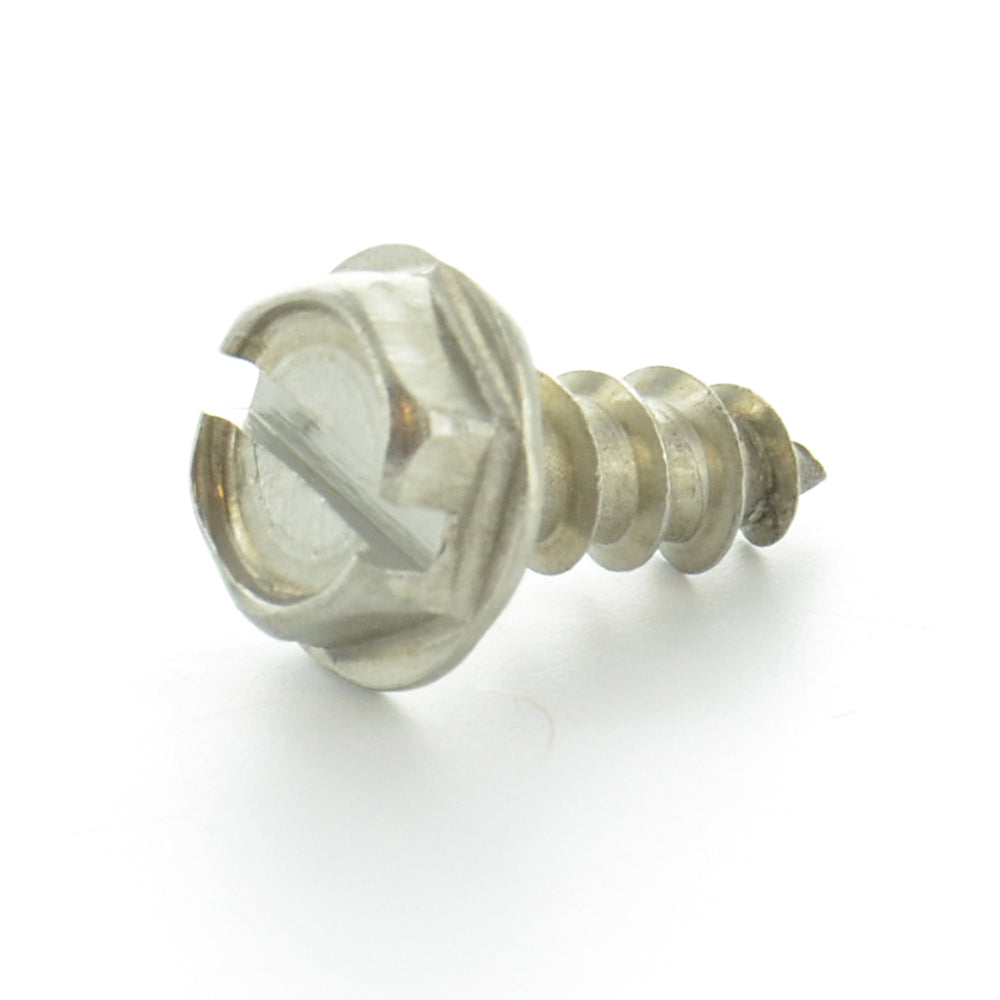

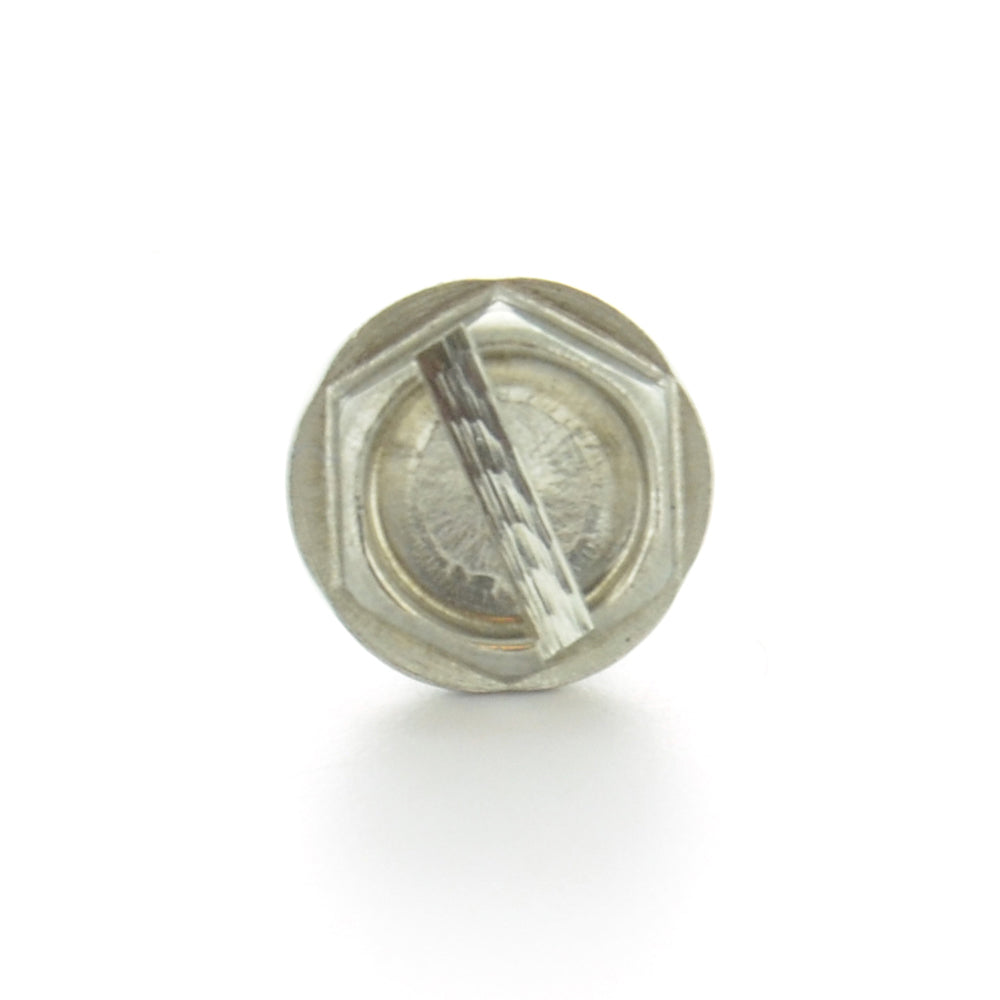

#12 x 1/2 Inch Plain 18-8 (A2) Stainless Steel Indented Hex Washer Head Type Ab Self-Tapping Sheet Metal Screw
Item B11.012.12
A/AB Sheet Metal Screws- Sheet metal screws are engineered for connecting thinner metal objects to one another or connecting metal to wood plastic and other materials. Many sheet metal screws can start their own hole. Type A sheet metal screws have wider spaced threads for self-starting in thinner metal or plywood.Type AB sheet metal screws have more threads per inch and are more effective in brittle materials than Type A.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | #12 |
| Drive Type | Slotted Hex |
| Head Style | Hex Washer |
| Length | 1/2 Inch |
| Material | 18-8 Stainless Steel |
| Measurement | Inch |
| Origin | IMPORT |
| Point Type | Drill Point |
Description
Description
A/AB Sheet Metal Screws- Sheet metal screws are engineered for connecting thinner metal objects to one another or connecting metal to wood plastic and other materials. Many sheet metal screws can start their own hole. Type A sheet metal screws have wider spaced threads for self-starting in thinner metal or plywood.Type AB sheet metal screws have more threads per inch and are more effective in brittle materials than Type A.
- Origin: Imported
- Drive Type: Hex - Slotted
- Finish: Plain
- Head Height: 0.139 - 0.155 Inch
- Head Style: Indented Hex Washer
- Industry Standard: ASME/ANSI B18.6.4 SAE J78
- Item: Self-Tapping Sheet Metal Screw
- Length: 1/2 Inch
- Material: 18-8 (A2) Stainless Steel
- Measurement: Inch
- Origin: Imported
- Point Type: Type-AB
- Slot Depth: 0.077 - 0.103 Inch
- Slot Width: 0.056 - 0.067 Inch
- Specification: ASME/ANSI B18.6.4 SAE J78
- Washer Diameter: 0.398 - 0.432 Inch
- Washer Thickness: 0.022 - 0.039 Inch
- Width Across Corner: 0.340 Inch
