OneSource

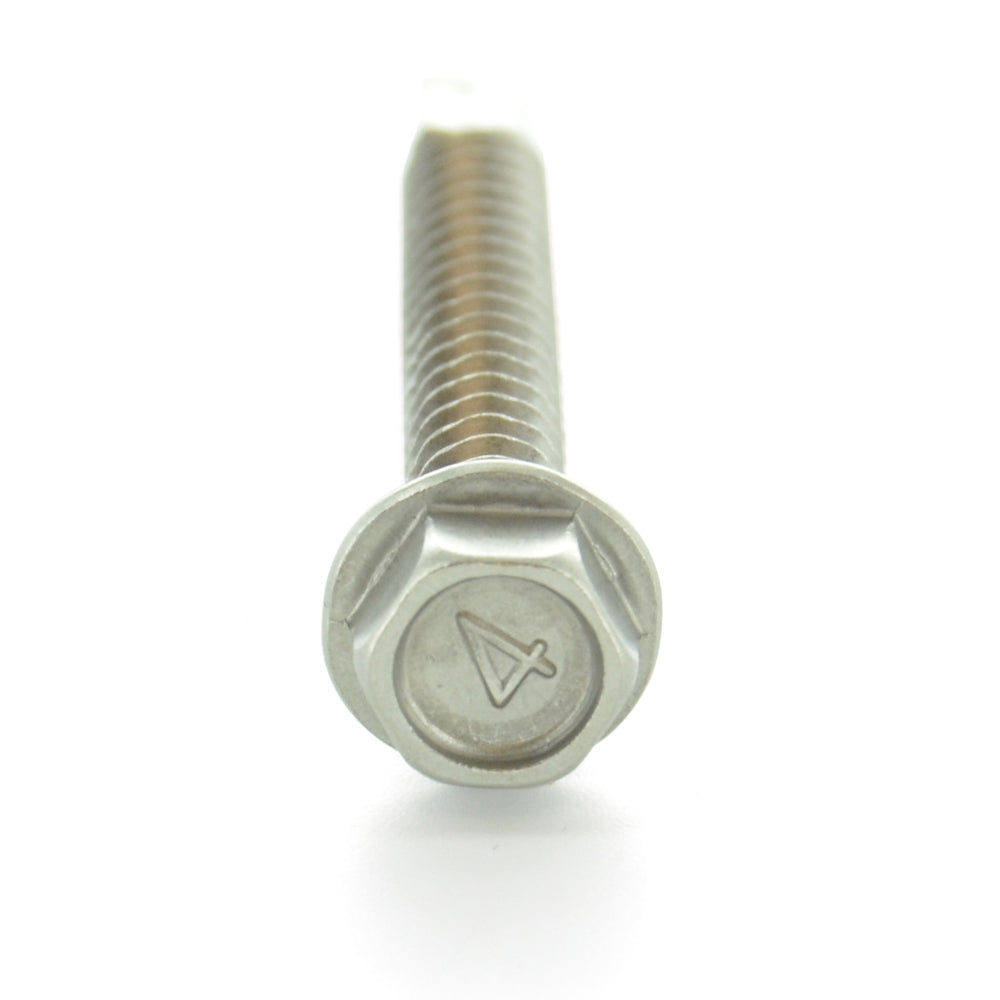

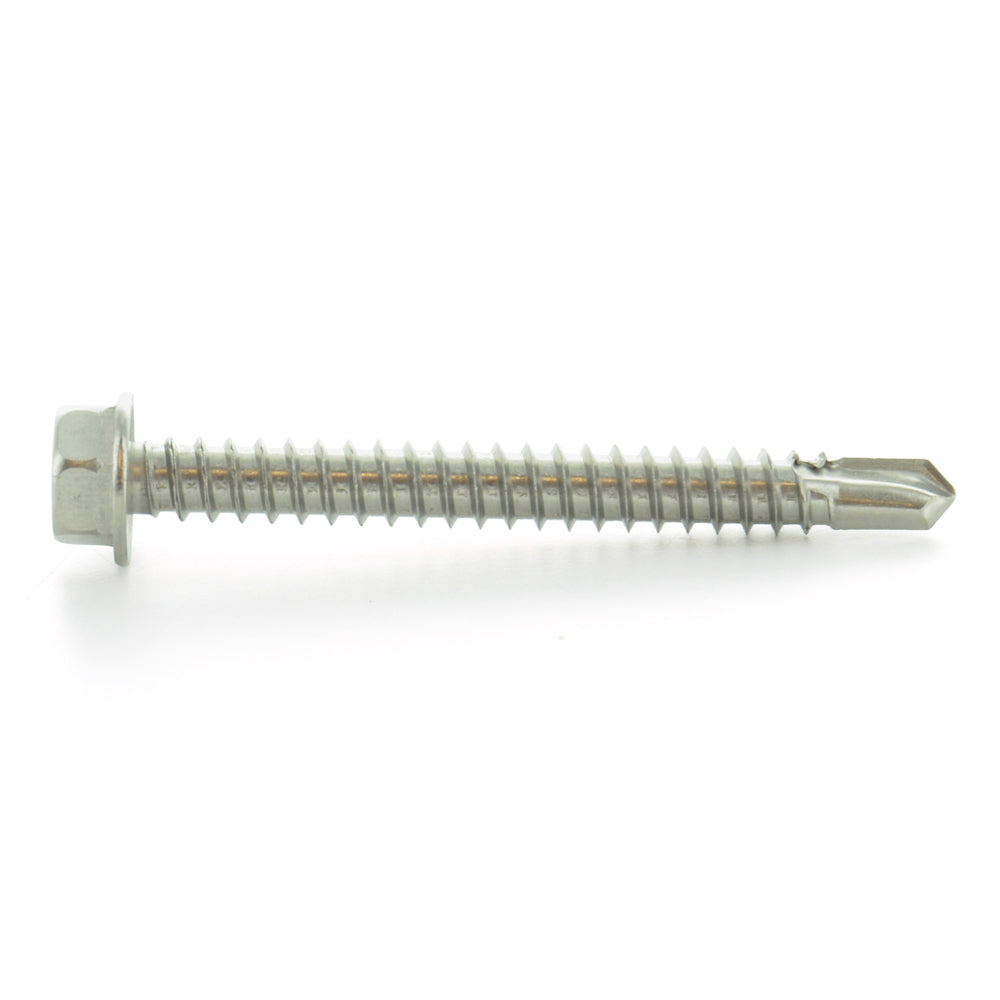

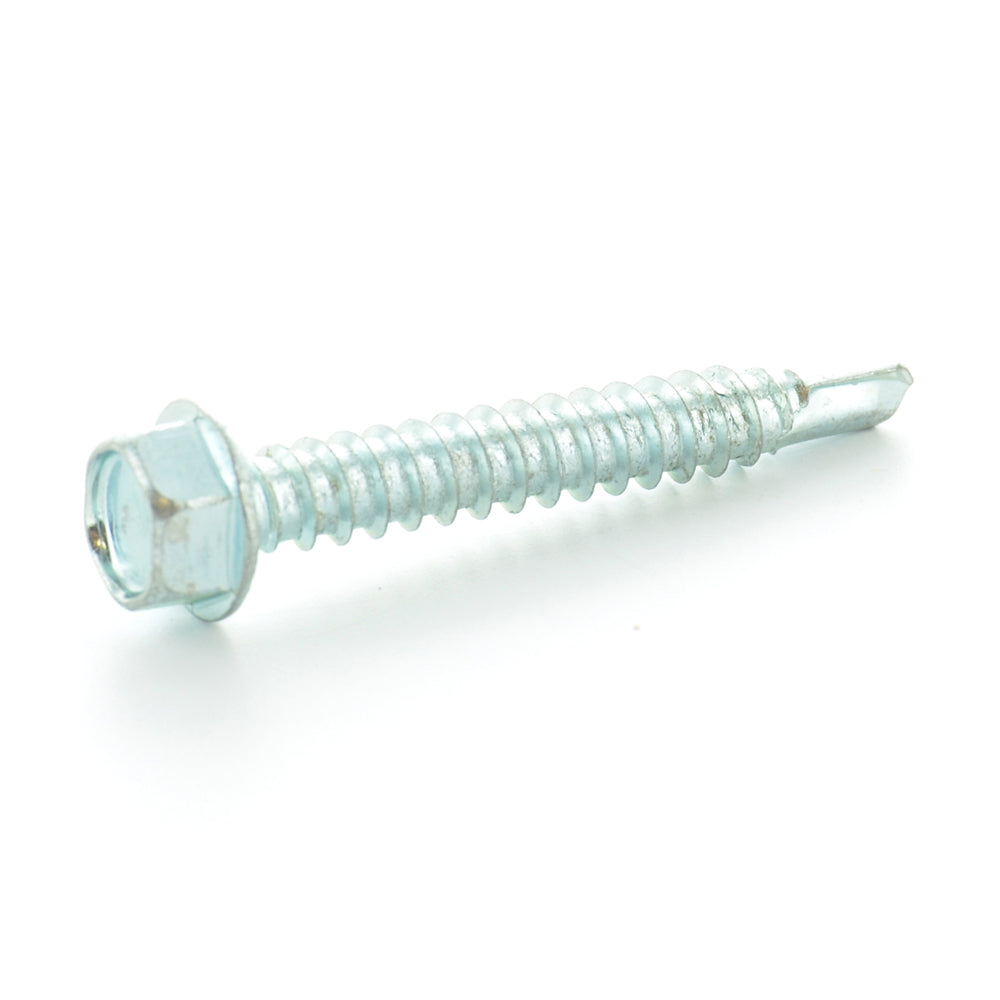

#14-14 x 1-1/4 Inch Zinc Plated Low Carbon Steel #3 Point Indented Hex Washer Head Self-Drilling Tek Screw

Item B23.14.114

$0.43
$0.43
/ Each

Please note that this product is sold in multiples of 1
Ships in 1 day
Free shipping

Free Shipping On All Orders Over $15

We Stand Behind Our Products

with our 100% quality assurance guarantee.

Description

Self drilling screws also known as TEK screws have a tip to cut through material and eliminate the need to drill a pilot hole. An indented hex washer head offers advantages of hex head plus greater protection to mating surface. Stainless steel 400 gives these screws the added benefits of higher strength and wear resistance. The passivated finish makes them much more resistant to corrosion than the original finish. These screws are typically used in metal to metal applications.

  • Origin: Imported
  • Zinc Plating Meets ASTM B-117 for Salt Spray Corrosion
  • Attaches metal to metal
  • Drill Capacity: 0.060 - 0.220 Inch
  • Drive Type: 0.016 Inch
  • Finish: Zinc
  • Head Height: 0.172 - 0.190 Inch
  • Head Height Max: .190
  • Head Style: Indented Hex Washer
  • Industry Standard: ASME/ANSI B18.6.4 SAE J78
  • Item: Self-Drilling TEK Screw
  • Length: 1-1/4 Inch
  • Material: Low Carbon Steel
  • Measurement: Inch
  • Origin: Imported
  • Point Type: #3
  • Specification: ASME/ANSI B18.6.4 SAE J78 SAE J933
  • Threads Per Inch: 14
  • Washer Diameter: 0.480 - 0.520 Inch
  • Washer Thickness: 0.030 - 0.050 Inch
  • Width Across Corner: 0.409 Inch

Photographs are representational and may not be size accurate.
