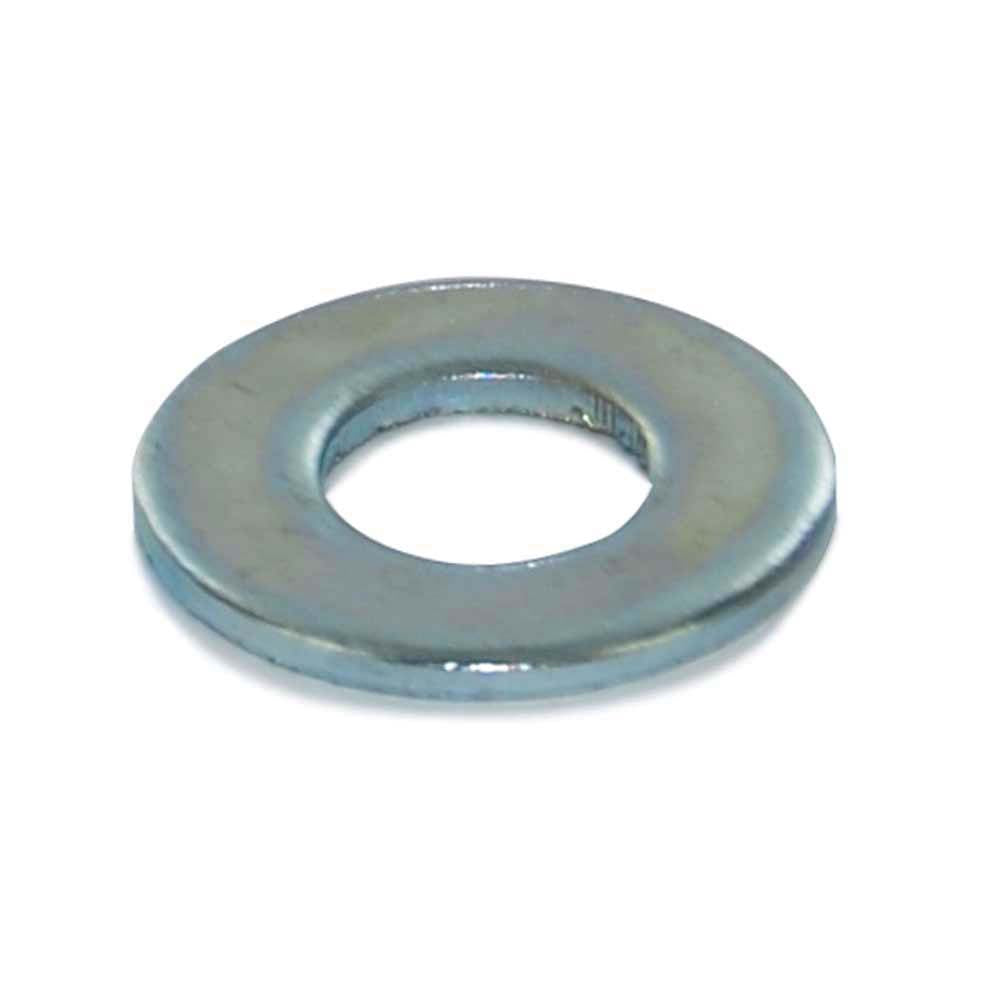

14 Gauge 2-3/8 Inch X 3-3/8 Inch Astm F844 Clear Zinc Carbon Steel Narrow Rim Machine Bushing
Item E96.14.17
Machine bushings are made of rugged carbon steel for maximum corrosion resistance
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Material | Carbon Steel |
| Finish | Zinc |
| Retainer Type | Narrow Machine Bushing |
Description
Description
Finish: Zinc
- Hardness RC 30 max.
- Machine bushings are made of rugged carbon steel for maximum corrosion resistance
- Installed axially these round shims are used to take up slack on shafts
- Typical applications include industrial and farm machinery electronic equipment and power transmission assemblies
- Industry Standard: ASTM F844
- Inside Diameter: 2-3/8 Inch
- Inside Diameter Maximum: 2.400 Inch
- Inside Diameter Minimum: 0.885 Inch
- Item: Machine Bushing
- Material: Carbon Steel
- Measurement: Inch
- Origin: Imported
- Outside Diameter: 3-3/8 Inch
- Outside Diameter Maximum: 3.385 Inch
- Outside Diameter Minimum: 3.368 Inch
- Specification: ASTM F844
- Thickness: 14 Gauge
- Thickness Maximum: 0.082 Inch
- Thickness Minimum: 0.068 Inch
- Type: Narrow Rim
Specifications
General
- Finish
- Zinc
- Material
- Carbon Steel
- Measurement System
- Inch
- Type
- Narrow Rim
- Origin
- Imported
Dimensions
- Thickness
- 14 Gauge
- Outside Diameter
- 3-3/8 Inch
- Inside Diameter
- 2-3/8 Inch
- Outside Diameter Maximum
- 3.385 Inch
- Thickness Maximum
- 0.082 Inch
- Thickness Minimum
- 0.068 Inch
- Outside Diameter Minimum
- 3.368 Inch
- Inside Diameter Maximum
- 2.400 Inch
- Inside Diameter Minimum
- 0.885 Inch
Features
- Retainer Type
- Narrow Machine Bushing
Certifications & Standards
- Standards
- ASTM F844
