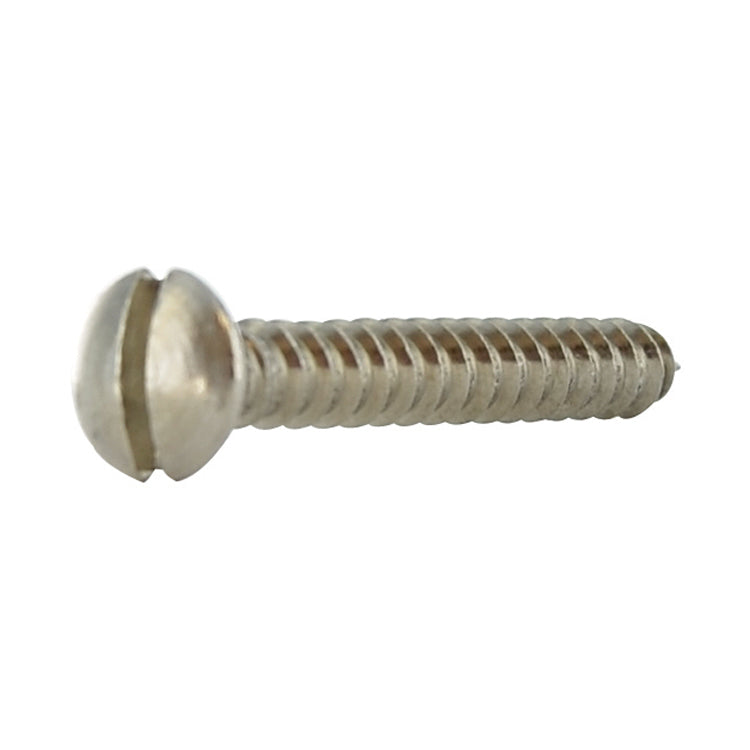

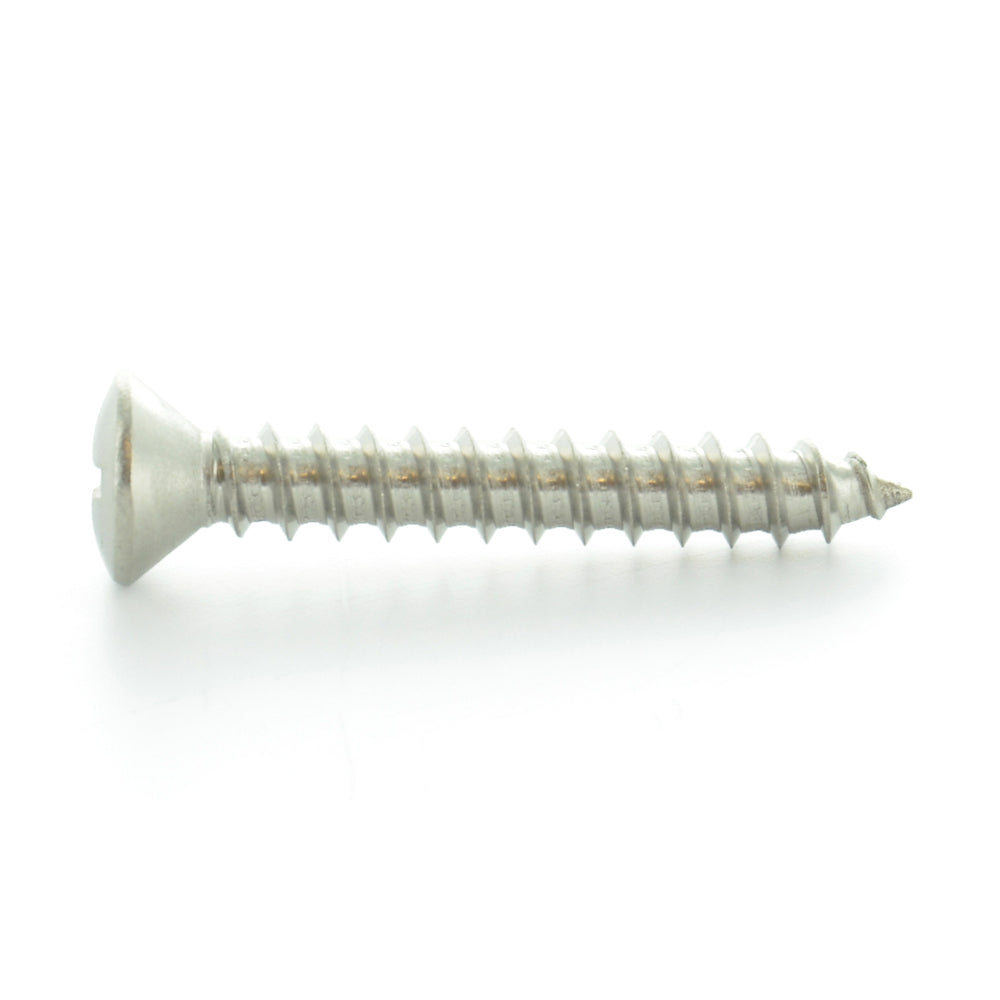

#14 x 2 Inch Plain 18-8 (A2) Stainless Steel Oval Slotted Type-A Self-Tapping Sheet Metal Screw
Item B16.1.14.2
Oval-head sheet metal screws are self-tapping with a rounded top and are partly countersunk with about half of the screw head above the surface. Used on thin materials like sheet metal or wood veneer their coarse threads allow them to be continually fastened and unfastened for maintenance tasks.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | #14 |
| Drive Type | Slotted |
| Head Style | Oval |
| Length | 2 Inch |
| Material | 18-8 Stainless Steel |
| Measurement | Inch |
| Point Type | Type A |
Description
Description
Oval-head sheet metal screws are self-tapping with a rounded top and are partly countersunk with about half of the screw head above the surface. Used on thin materials like sheet metal or wood veneer their coarse threads allow them to be continually fastened and unfastened for maintenance tasks.
- Diameter: #14
- Drive Type: Slotted
- Finish: Plain
- Head Diameter: 0.427 - 0.462 Inch
- Head Height: 0.224 Inch
- Head Style: Oval
- Industry Standard: ASME/ANSI B18.6.4 SAE J78
- Item: Self-Tapping Sheet Metal Screw
- Length: 2 Inch
- Material: 18-8 (A2) Stainless Steel
- Measurement: Inch
- Point Type: Type-A
- Slot Depth: 0.108 - 0.132 Inch
- Slot Width: 0.064 - 0.075 Inch
- Specification: ASME/ANSI B18.6.4 SAE J78
