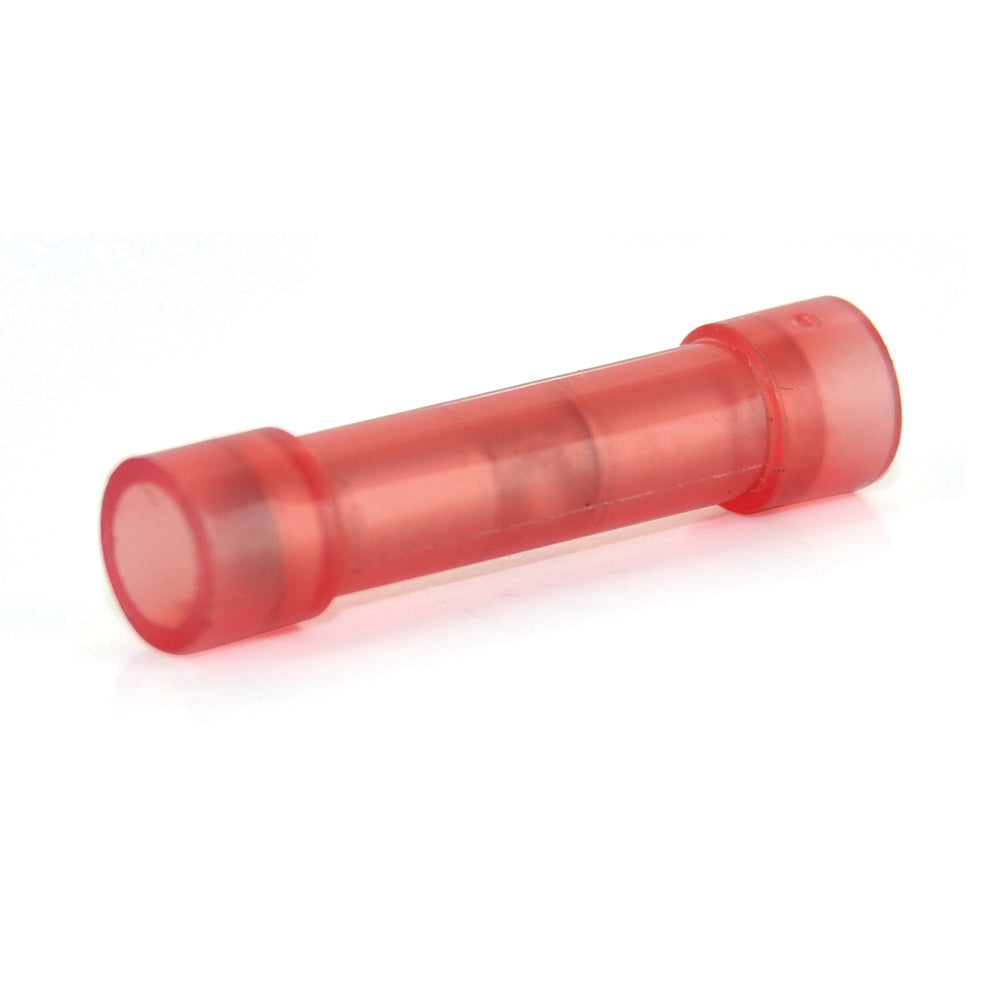

22-18 Gauge Button Connector Nylon Insulated Moisture Resistant Red
Item F59.50.061
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
Terminals are made from electrolytic copper from high conductivity and annealed for free flow under crimping pressure electroplated tin coated for corrosion resistance. Filled with dielectric grease to keep moisture dust and other contaminates out of the connection.
- The terminals are made from electrolytic copper for high conductivity & annealed for free flow under crimping pressure. Electroplated tin coated for corrosion resistance. Meets UL CSA and MIL-T-10727 requirements.
- Wire range is stamped on the metal surfaces.
- Serrated barrel or dimples for improved gripping power.
- Funnel Entry-A built-in metal Sleeve-that guides the wire into the crimp area.
- Strain Relief/Double Crimping Sleeve-The metal sleeve is crimped around the wire?s insulation to give strain relief against vibration.
- Nylon Insulation with Strain Relief Extension-The sturdy nylon insulation extends beyond the metal sleeve to insure complete insulation.
- Sturdy gussets reinforce the terminal where the flat tongue is formed into the barrel.
- Open-end design permits quick visual inspections before & after crimping.
