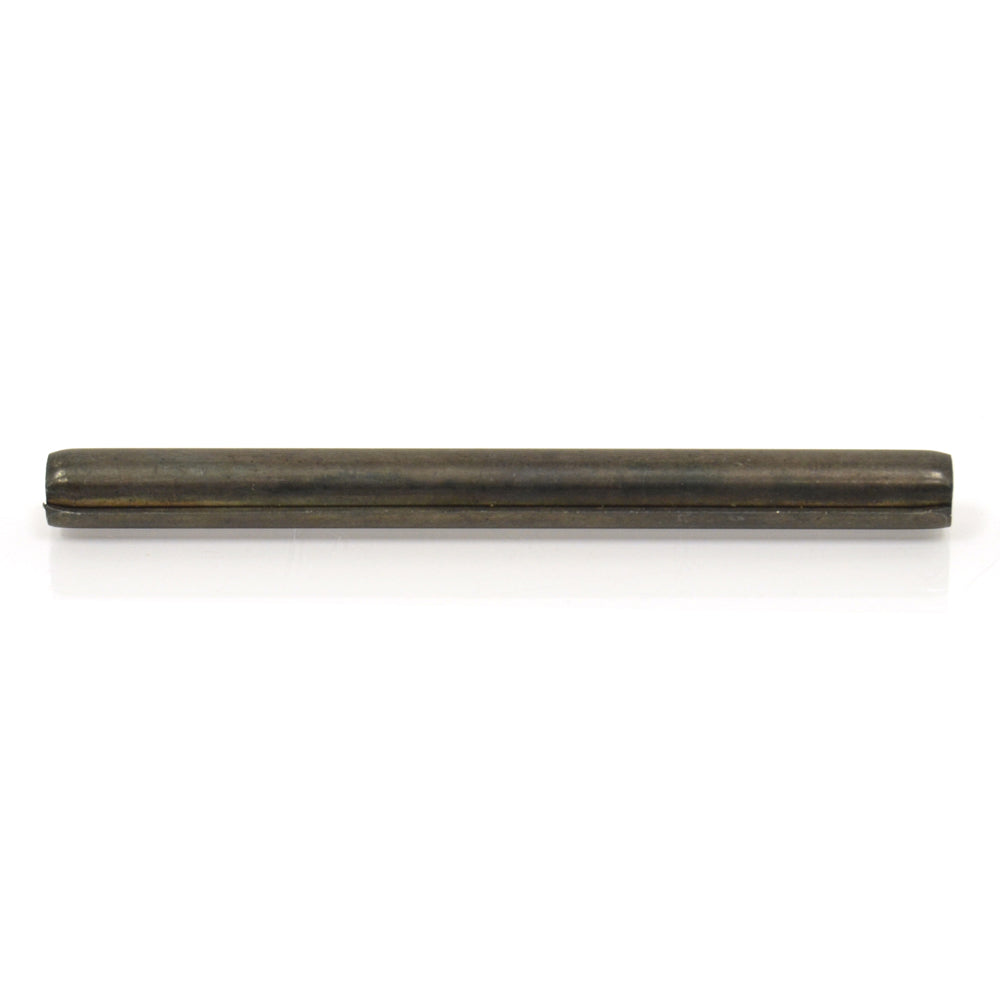

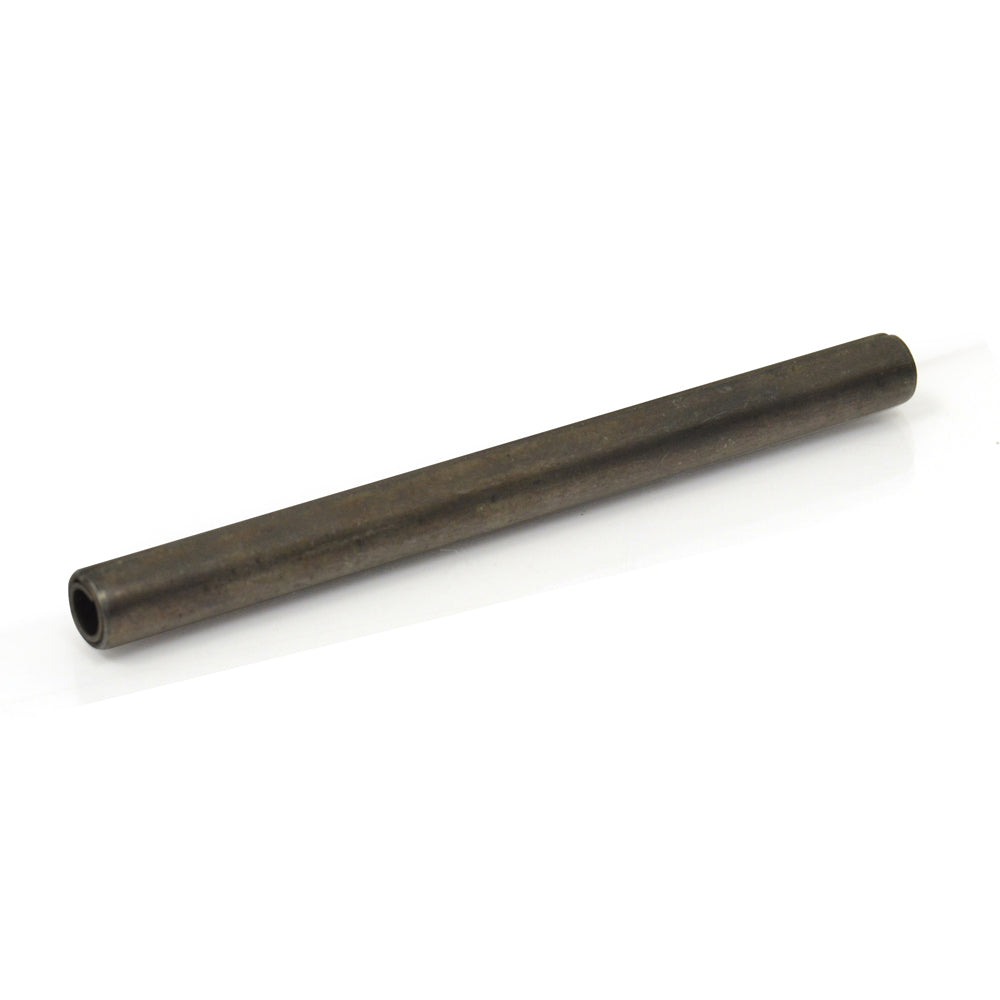

3/16 Inch X 1-1/4 Inch Plain SAE 1070-1095 High Carbon Steel Coiled Spring Pin
Item E77.316.114
Coiled pins are rolled forms made with 2-1/4 turns of steel. the wound design allows stress to be evenly distributed throughout the pins cross section.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | 3/16 inch |
| Length | 1-1/4 Inch |
| Material | Spring Steel |
| Finish | Plain |
| Retainer Type | Coiled Spring Pin |
Description
Description
Coiled pins are rolled forms made with 2-1/4 turns of steel. the wound design allows stress to be evenly distributed throughout the pins cross section.
- HV 420 to 545 hardness
- Item: Coiled Spring Pin
Specifications
General
- Finish
- Plain
- Material
- Spring Steel
- Measurement System
- Inch
- Type
- Standard Duty
Dimensions
- Diameter
- 3/16 inch
- Length
- 1-1/4 Inch
- Hole Size
- 0.185 – 0.192 Inch
Features
- Retainer Type
- Coiled Spring Pin
Certifications & Standards
- Standards
- ASME B 18.8.2 - ASME B 18.8.3M - ISO 8750
