• 3/4-10 x 2-1/2 Inch Coarse Plain 18-8/A2 Stainless Steel Hex Head Cap Screw
1 2

Photographs are representational and may not be size accurate.

OneSource

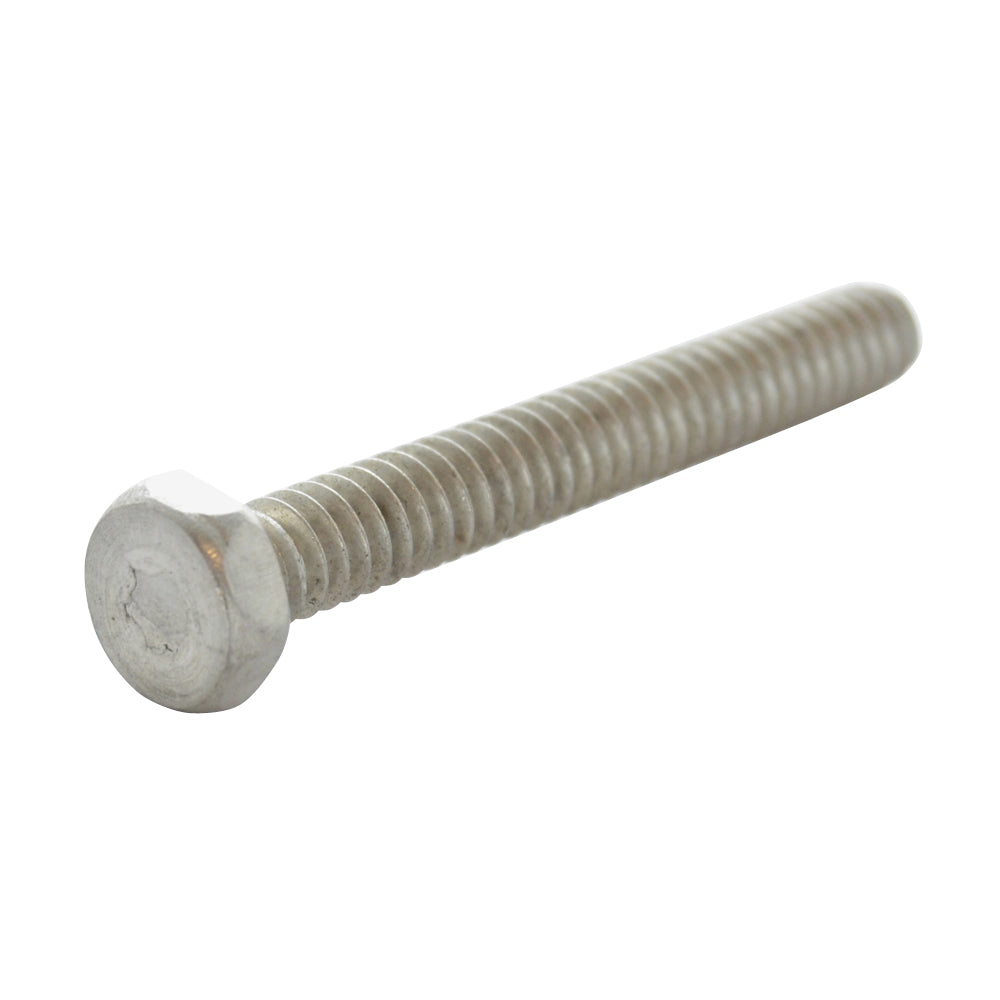

3/4-10 x 2-1/2 Inch Coarse Plain 18-8/A2 Stainless Steel Hex Head Cap Screw

Item A78.34.212

$5.45
$5.45
/ Each

Please note that this product is sold in multiples of 1
Ships in 1 day
Free shipping

Free Shipping On All Orders Over $15

We Stand Behind Our Products

with our 100% quality assurance guarantee.

Description

Cap Screws are proportioned and toleranced to assure full and proper loading when assembled into a tapped hole. A washer face is provided under the head to provide a bearing surface when tightened. this feature ensures proper fit-up into tapped holes without counterboring. Cap screws feature a chamfered end to aid in inserting into a tapped hole. Hex head cap screws are available in a variety of material grades including: Grade 2 Grade 5 Grade 8 and stainless steels. Additionally these fasteners are available in plated and plain varieties. Hex head caps screws are a common fastener used in a variety of industrial construction automotive and manufacturing applications.

  • Origin: Imported
  • Diameter: 3/4 Inch
  • Diameter Thread Size: 3/4-10
  • Finish: Plain
  • Grade: 18-8
  • Head Height Max: 15/32 Inch
  • Head Style: 0.019 Inch
  • Head Type: Hex
  • Item: Cap Screw
  • Length: 2-1/2 Inch
  • Material: 18-8/A2 Stainless Steel
  • Measurement: Inch
  • Origin: Imported
  • Proof Load: 65000 psi
  • Specification: ANSI B18.2.1 - 1981
  • Tensile Strength : 100000 - 150000 psi
  • Thread Length: 2-1/2 Inch
  • Thread Type: Coarse
  • Threads Per Inch: 10
  • Type: Full Threaded
  • Width Across Corner: 1.254 - 1.299 Inch

Photographs are representational and may not be size accurate.
