Description
Description

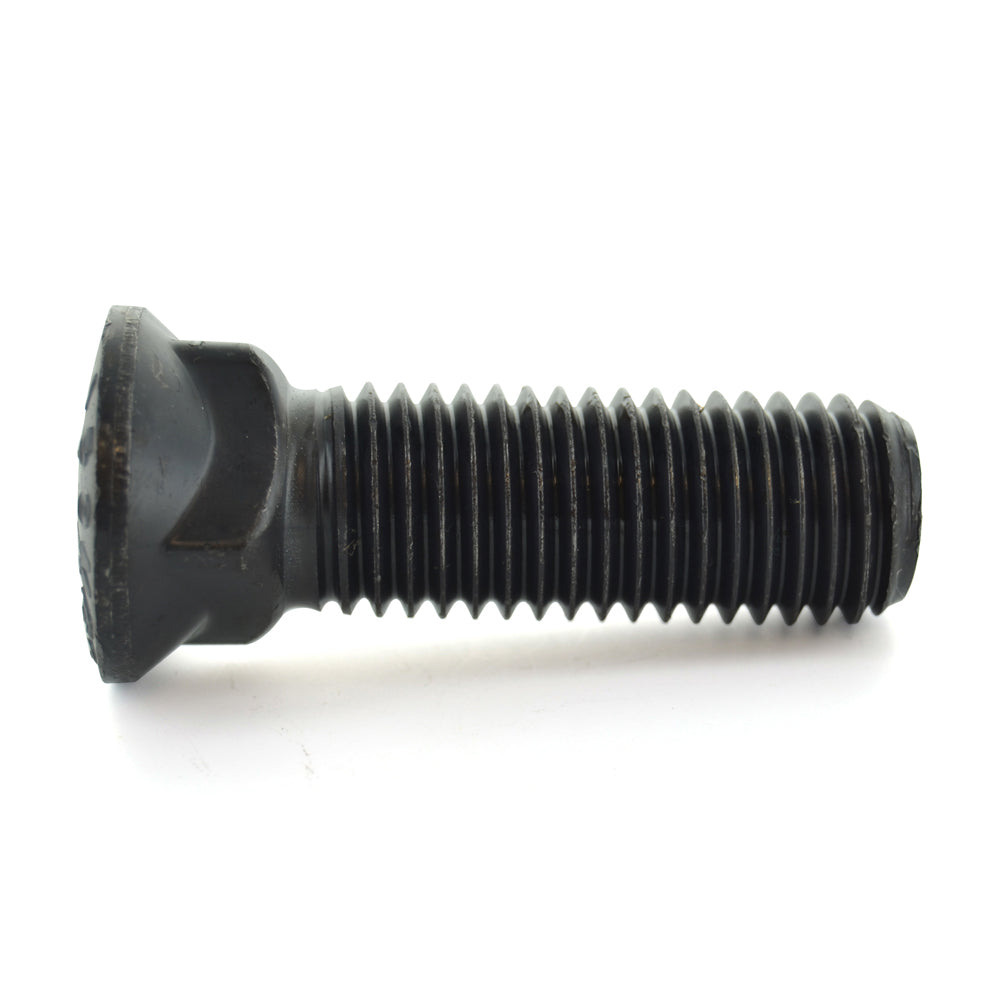

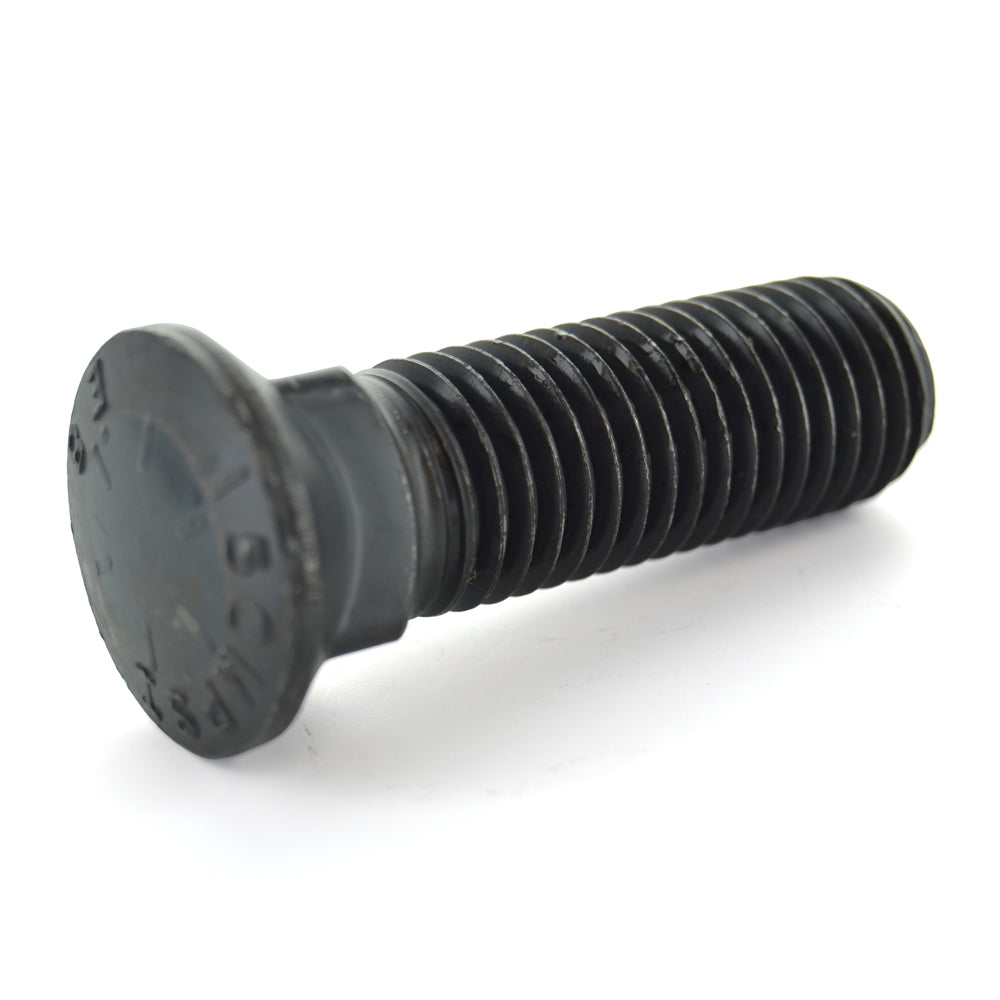

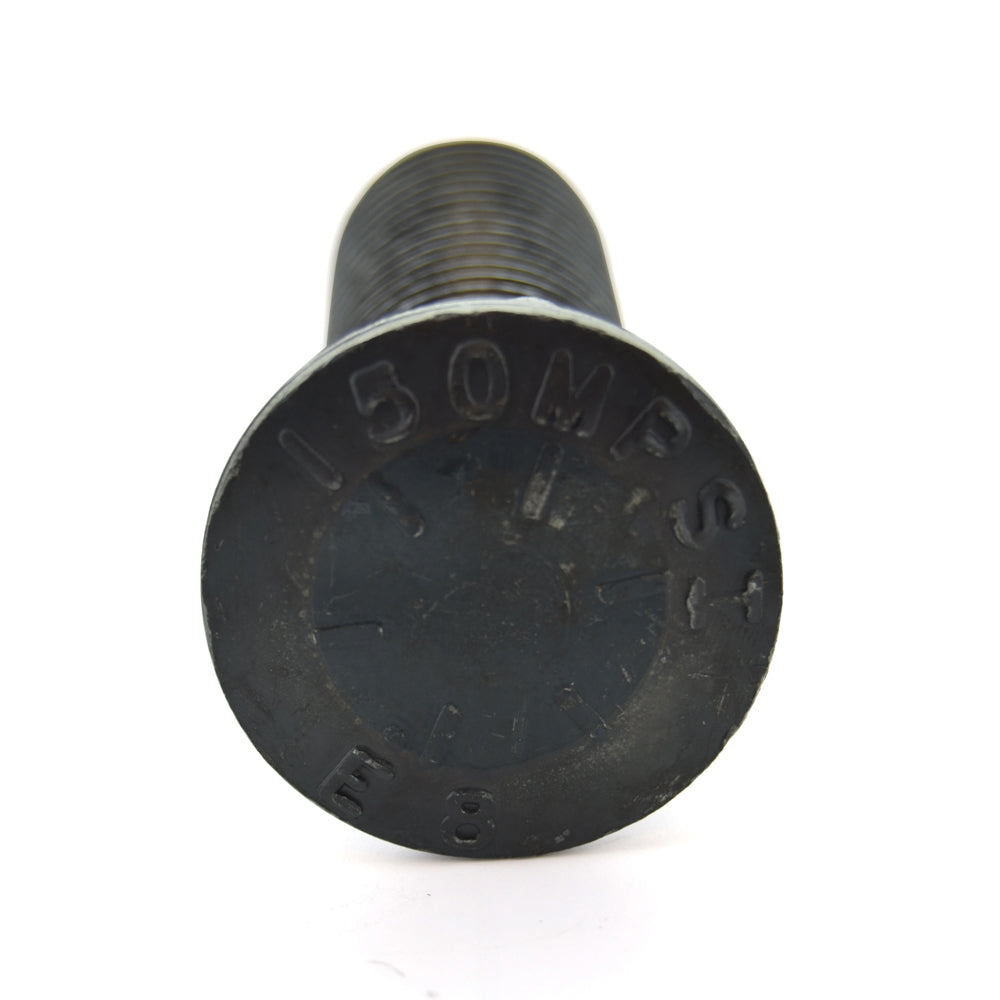

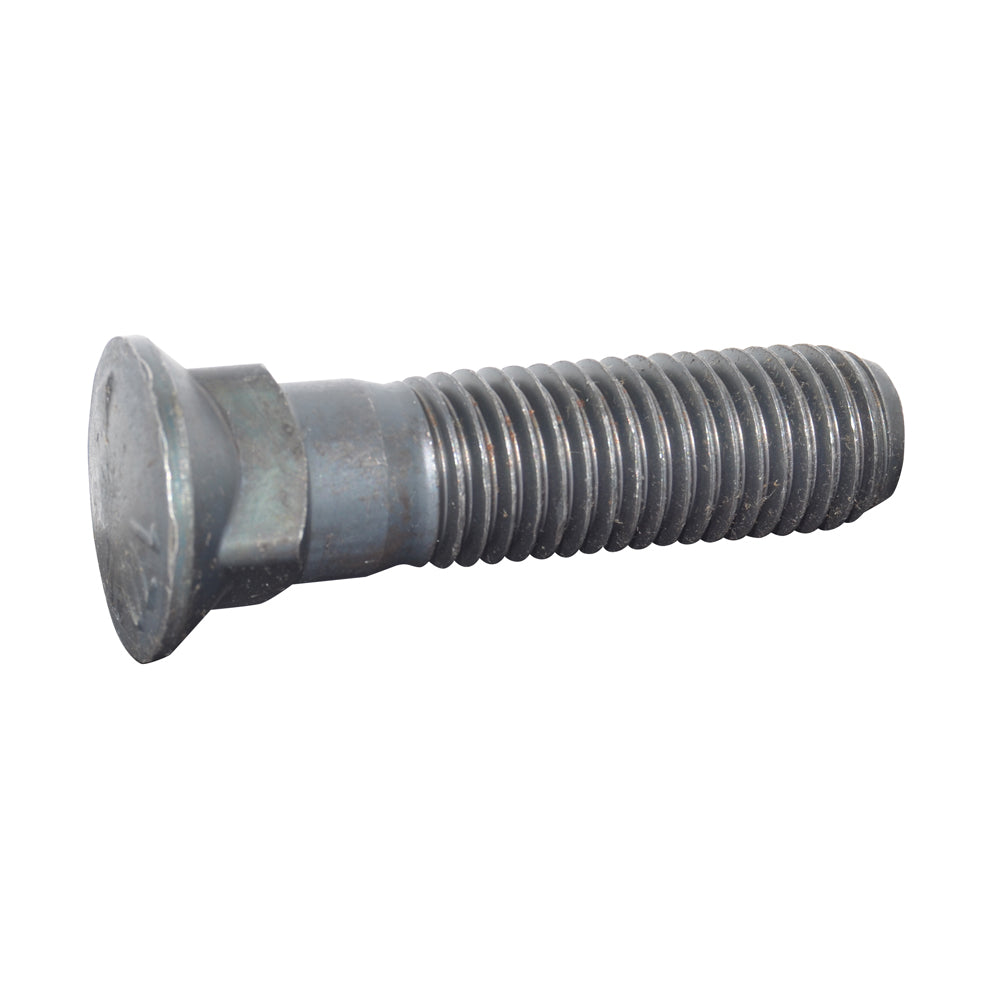

These Grade 8 plow bucket-tooth bolts have a locking key that holds the bolt as the nut is fastened. Used to secure heavy equipment parts these bolts have smooth angled heads to sit flush within their countersunk holes. The hole must first be countersunk with the chamfered edge in order to sit flush. These bolts come in a black oxide finish which is corrosion resistant in dry environments.
- Item: Plow Bolt
Specifications
General
- Finish
- Plain
- Measurement System
- Inch
- Type
- Partial Threaded
- Material
- Medium Carbon Steel
- Plating
- Zinc
- Origin
- Imported
Dimensions
- Diameter
- 3/4 Inch
- Length
- 3 Inch
- Thread Type
- Coarse
- Threads Per Inch
- 10
- Thread Length
- 1-3/4 Inch
- Head Diameter
- 1.250 – 1.303 Inch
- Body Diameter
- 0.729 – 0.782 Inch
- Square Width
- 0.750 – 0.765 Inch
- Square Depth
- 0.491 – 0.541 Inch
Features
- Head Style
- Dome
- Grade
- Grade 8
- Tensile Strength
- 150.000
- Proof Load
- 120,000 psi
- Proof Load PSI
- 120,000
Certifications & Standards
- Standards
- ASME/ANSI B18.9 - SAE J429
