OneSource

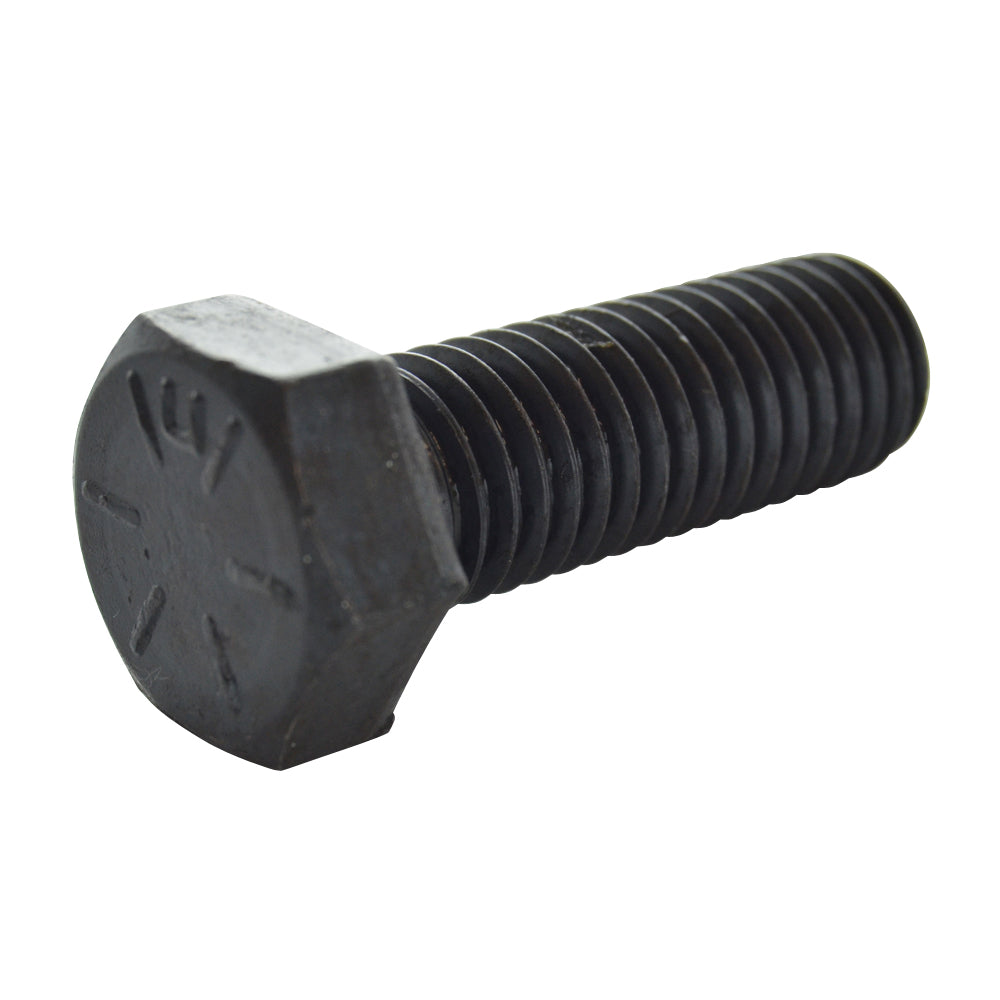

3/4-10 x 4-1/2 Inch Coarse Grade 8 Plain Steel Hex Head Cap Screw

Item A77.9.34.412

Cap Screws are proportioned and toleranced to assure full and proper loading when assembled into a tapped hole. A washer face is provided under the head to provide a bearing surface when tightened. this feature ensures proper fit-up into tapped holes without counterboring. Cap screws feature a chamfered end to aid in inserting into a tapped hole. Hex head cap screws are available in a variety of material grades including: Grade 2 Grade 5 Grade 8 and stainless steels. Additionally these fasteners are available in plated and plain varieties. Hex head caps screws are a common fastener used in a variety of industrial construction automotive and manufacturing applications.

Regular price $3.99
Sale price $3.99 Regular price
/ each

Delivering to

Estimated delivery: 3–7 business days

Order by 2pm CT

Please note that this product is sold in multiples of 1

Photographs are representational and may not be size accurate.

Key Specifications

Diameter 3/4 Inch
Length 4-1/2 Inch
Thread Type Coarse
Finish Plain
See all specifications

Description

Cap Screws are proportioned and toleranced to assure full and proper loading when assembled into a tapped hole. A washer face is provided under the head to provide a bearing surface when tightened. this feature ensures proper fit-up into tapped holes without counterboring. Cap screws feature a chamfered end to aid in inserting into a tapped hole. Hex head cap screws are available in a variety of material grades including: Grade 2 Grade 5 Grade 8 and stainless steels. Additionally these fasteners are available in plated and plain varieties. Hex head caps screws are a common fastener used in a variety of industrial construction automotive and manufacturing applications.

  • Cap Screws are proportioned and toleranced to assure full and proper loading when assembled into a tapped hole
  • Washer face is provided under the head to provide a bearing surface when tightened
  • It ensures fit-up into tapped holes without counterboring
  • End is chamfered to aid in inserting into a tapped hole
  • Cap Screws can be used in tapped holes or with a wide range of nut bolted connections and in the applications for vehicles and structures
  • Item: Cap Screw

Specifications

General

Finish
Plain
Measurement System
Inch
Origin
Imported
Type
Partial Threaded
Material
Steel

Dimensions

Diameter
3/4 Inch
Length
4-1/2 Inch
Thread Type
Coarse
Threads Per Inch
10
Thread Length
1-3/4 Inch
Width Across Corner
1.254 – 1.299 Inch
Head Height
15/32 Inch
Body Diameter
0.741 – 0.750 Inch

Features

Head Style
Hex
Grade
Grade 8
Tensile Strength
50,100 psi
Proof Load
40,100 psi

Certifications & Standards

Standards
#21
