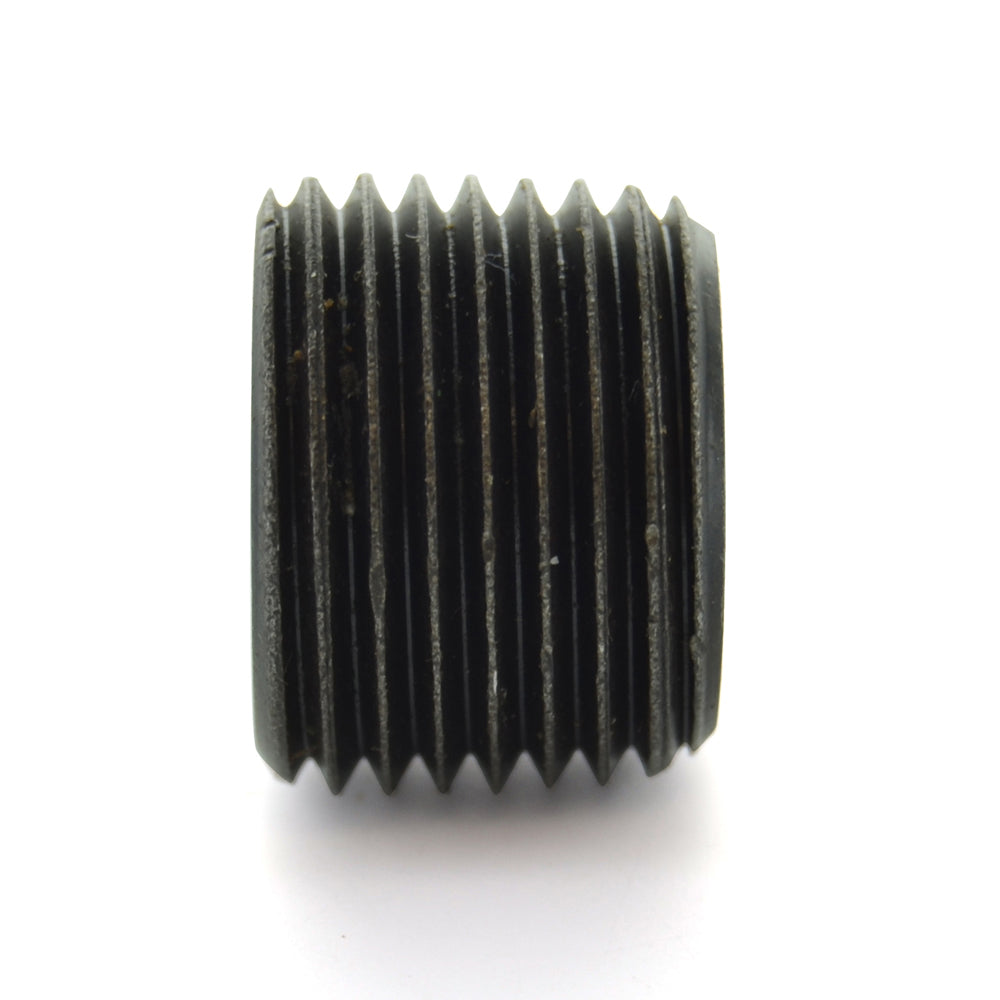

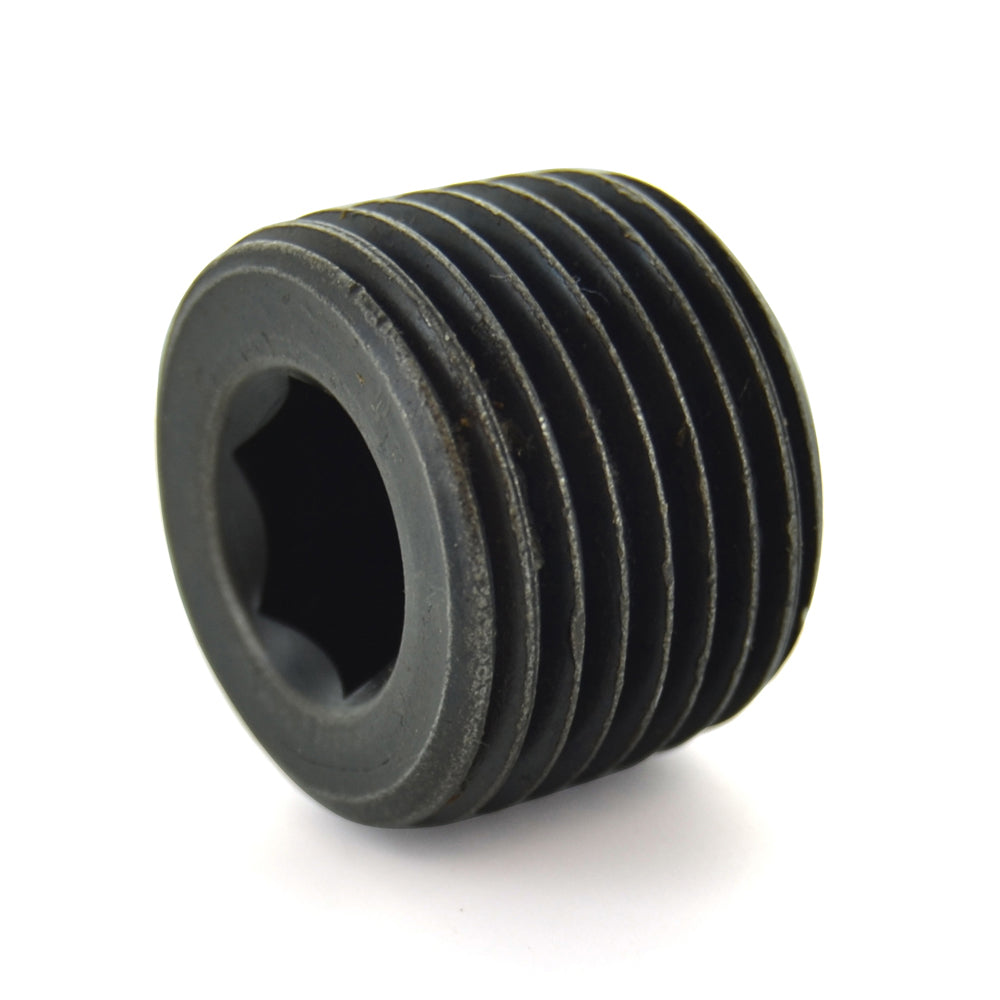

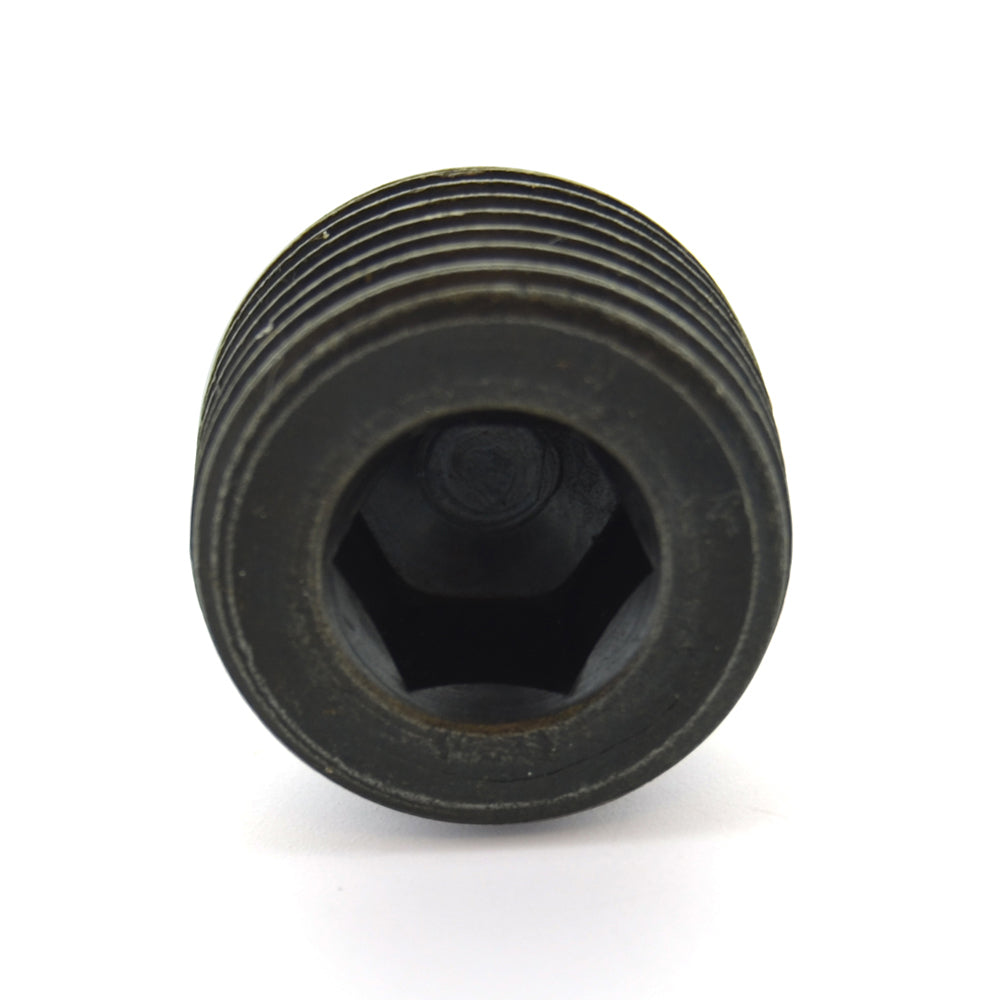

3/4-14 NPTF (National Pipe Taper Fuel) Black Oxide Alloy Steel 3/4 Inch Taper Dry Seal Socket Pipe Plug
Item B48.0.34
3/4-14 Nptf Black Oxide Alloy Steel 3/4 Inch Taper Dry Seal Socket Pipe Plug
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | 3/4 Inch |
| Length | 0.620 Inch |
| Material | Alloy Steel |
| Finish | Black Oxide |
Description
Description
3/4-14 Nptf Black Oxide Alloy Steel 3/4 Inch Taper Dry Seal Socket Pipe Plug
- Made in USA
- Pipe Thread (NPT) tapped holes but for fullest protection against leakage should be used in dryseal tapped holes which are taper reamed before tapping
- The thread truncation is closely controlled at root and crest to assure metal to metal contact preventing spiral leakage and forming a positive seal without the use of sealing compounds
- Dry seal plugs can be used in American Standard Taper Dryseal
- A dry seal plug is one having a tapered (0.750 diametral per 12) thread extending its entire length and designed to have its threads mesh tightly with those of a taper-threaded hole
- Both ends of the plug shall be flat and chamfered approximately 4
Specifications
General
- Finish
- Black Oxide
- Material
- Alloy Steel
- Measurement System
- Inch
Dimensions
- Diameter
- 3/4 Inch
- Length
- 0.620 Inch
