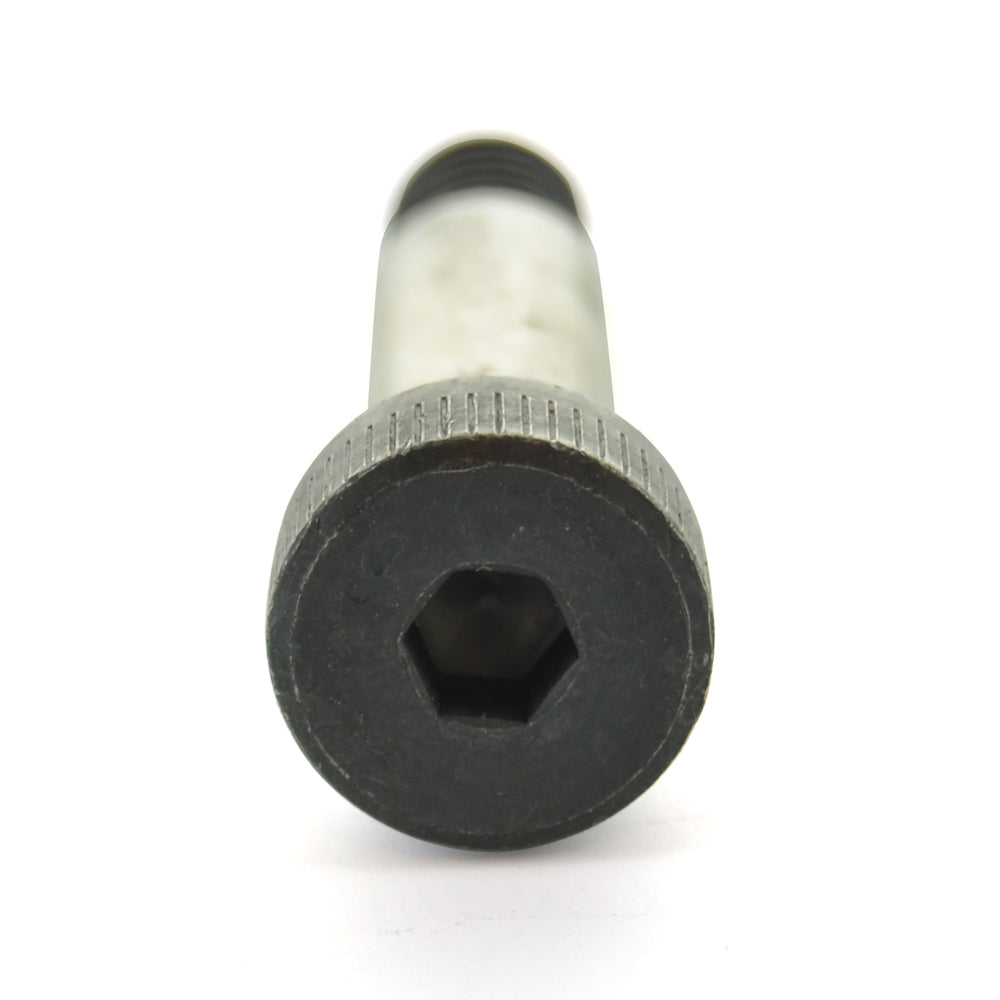

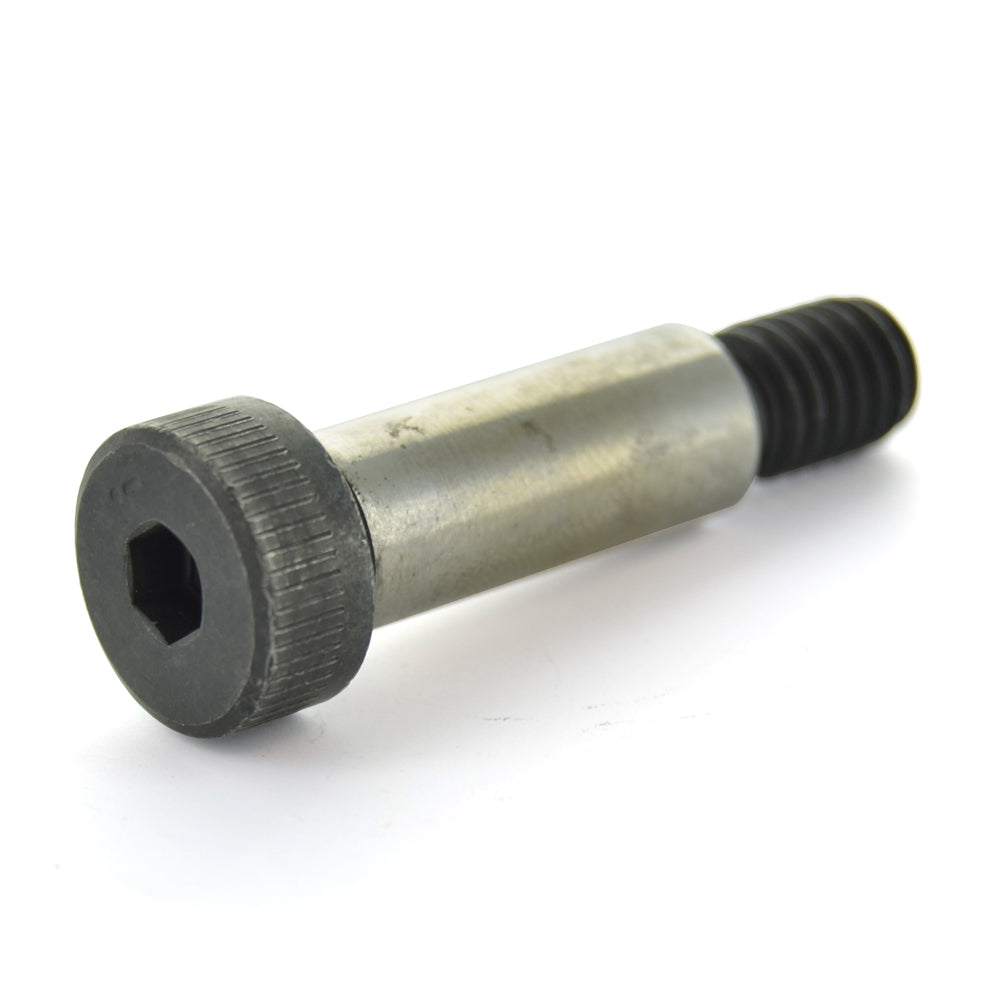

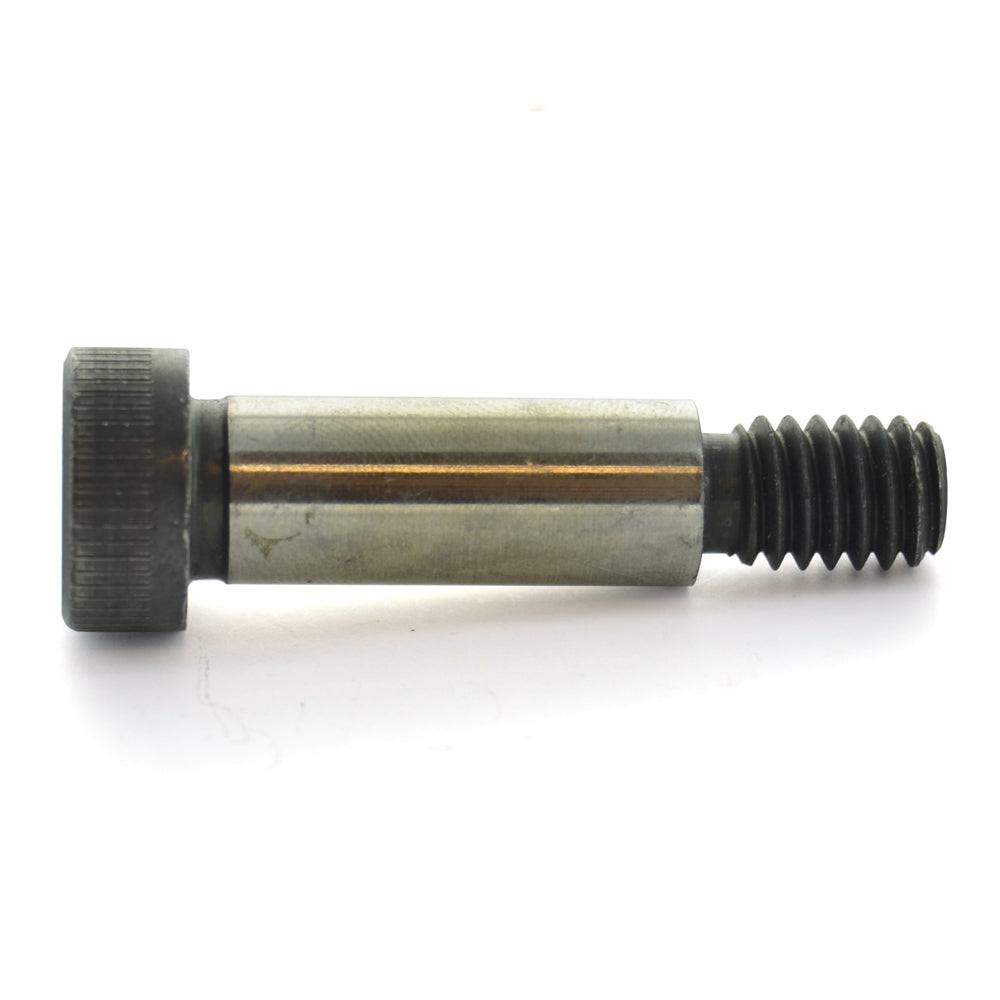

3/4 Inch X 2-1/4 Inch Black Oxide Astm A574 Socket Head Shoulder Screw USA
Item B65.34.214
Shoulder screws also called shoulder bolts allow for rotation of pulleys linkages and other moving parts in engines and mechanical applications.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | 3/4 Inch |
| Drive Type | Internal Hex |
| Finish | Black Oxide |
| Head Style | Socket |
| Length | 2-1/4 Inch |
| Measurement | Inch |
| Origin | USA |
| Thread Type | Coarse |
Description
Description
Shoulder screws also called shoulder bolts allow for rotation of pulleys linkages and other moving parts in engines and mechanical applications.
- Made in USA
- DFAR Compliant
- Drive Size: 3/8
- Drive Type: Internal Hex
- Finish: Black Oxide
- Head Diameter: 0.977 - 1.000 Inch
- Head Height: 0.490 - 0.500 Inch
- Head Style: Socket
- Industry Standard: ASME/ANSI B18.3
- Item: Shoulder Screw
- Key Size: 3/8 Inch
- Length: 2.25
- Material: Heat-Treated Alloy Steel
- Measurement: Inch
- Origin: USA
- Proof Load: 140000 psi
- Shoulder Diameter: 3/4 Inch
- Shoulder Length: 2-1/4 Inch
- Specification: ASME/ANSI B18.3 ASTM A574
- Tensile Strength : 180000 psi
- Thread Diameter: 5/8 Inch
- Thread Length: 7/8 Inch
- Thread Type: Coarse
- Threads Per Inch: 11
