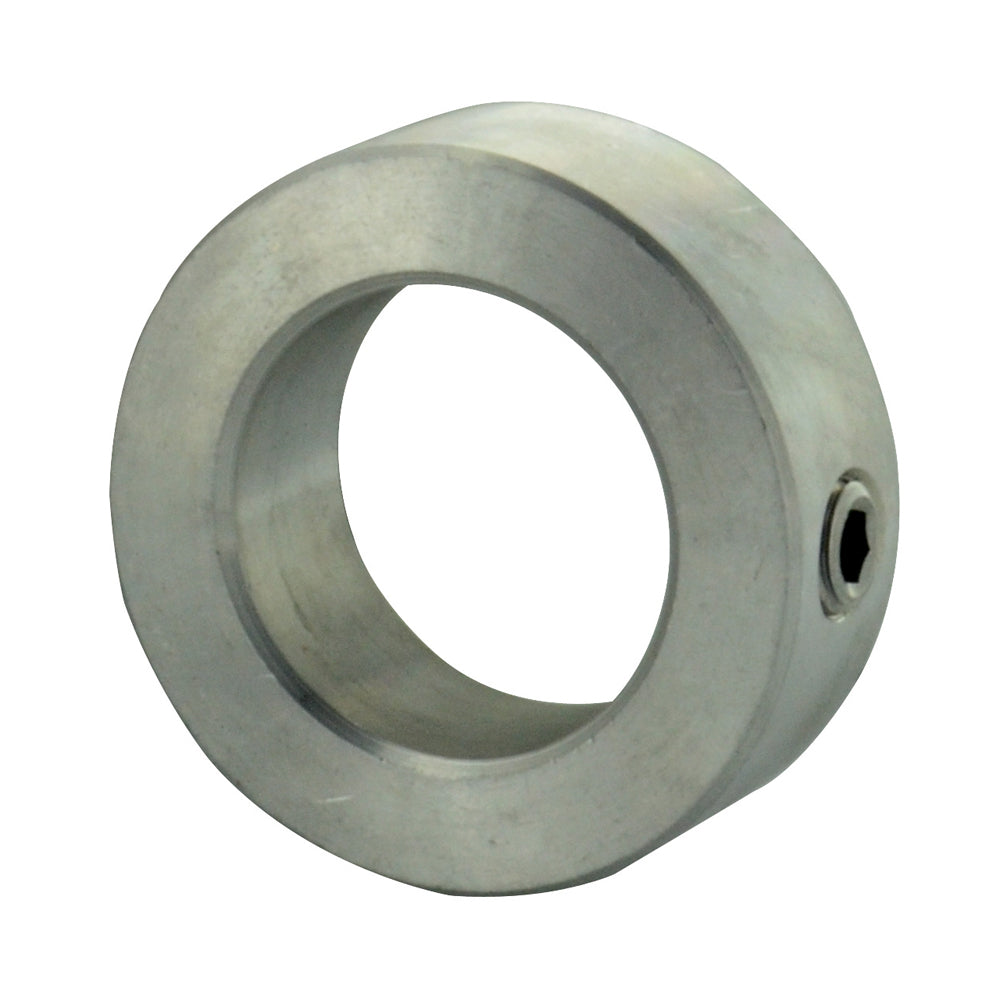

3/4 Inch Zinc Clear Low Carbon Steel Solid Shaft Collar
Item E96.01.34
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
Standard style (SC) shaft collars use a hardened set screw to penetrate the shaft so as to achieve grip This penetration yeilds light-duty benefits for applications like thrust collars abor spacers sprockets hubs bearing holders and shaft protectors SC collars do not work well when th shaft is harder than set screw or when penetration marks on the shaft are not desirable Black oxide coating will slightly increase friction and holding power in some applications Finish: Zinc Inside Diameter: 3/4 Inch Inside Diameter Maximum: 0.7540 Inch Inside Diameter Minimum: 0.7510 Inch Item: Shaft Collar Material: Low Carbon Steel Measurement: Inch Origin: Imported Outside Diameter: 1-1/4 Inch Outside Diameter Maximum: 1.2580 Inch Outside Diameter Minimum: 1.2420 Inch Set Screw Size: 5/16-18 Style: Solid Set Thickness: 9/16 Inch Thickness Maximum: 0.5675 Inch Thickness Minimum: 0.5575 Inch Type: Round Bore
- Standard style (SC) shaft collars use a hardened set screw to penetrate the shaft so as to achieve grip
- This penetration yeilds light-duty benefits for applications like thrust collars abor spacers sprockets hubs bearing holders and shaft protectors
- SC collars do not work well when th shaft is harder than set screw or when penetration marks on the shaft are not desirable
- Black oxide coating will slightly increase friction and holding power in some applications
- Inside Diameter: 3/4 Inch
- Inside Diameter Maximum: 0.7540 Inch
- Inside Diameter Minimum: 0.7510 Inch
- Item: Shaft Collar
- Material: Low Carbon Steel
- Measurement: Inch
- Origin: Imported
- Outside Diameter: 1-1/4 Inch
- Outside Diameter Maximum: 1.2580 Inch
- Outside Diameter Minimum: 1.2420 Inch
- Set Screw Size: 5/16-18
- Style: Solid Set
- Thickness: 9/16 Inch
- Thickness Maximum: 0.5675 Inch
- Thickness Minimum: 0.5575 Inch
- Type: Round Bore
