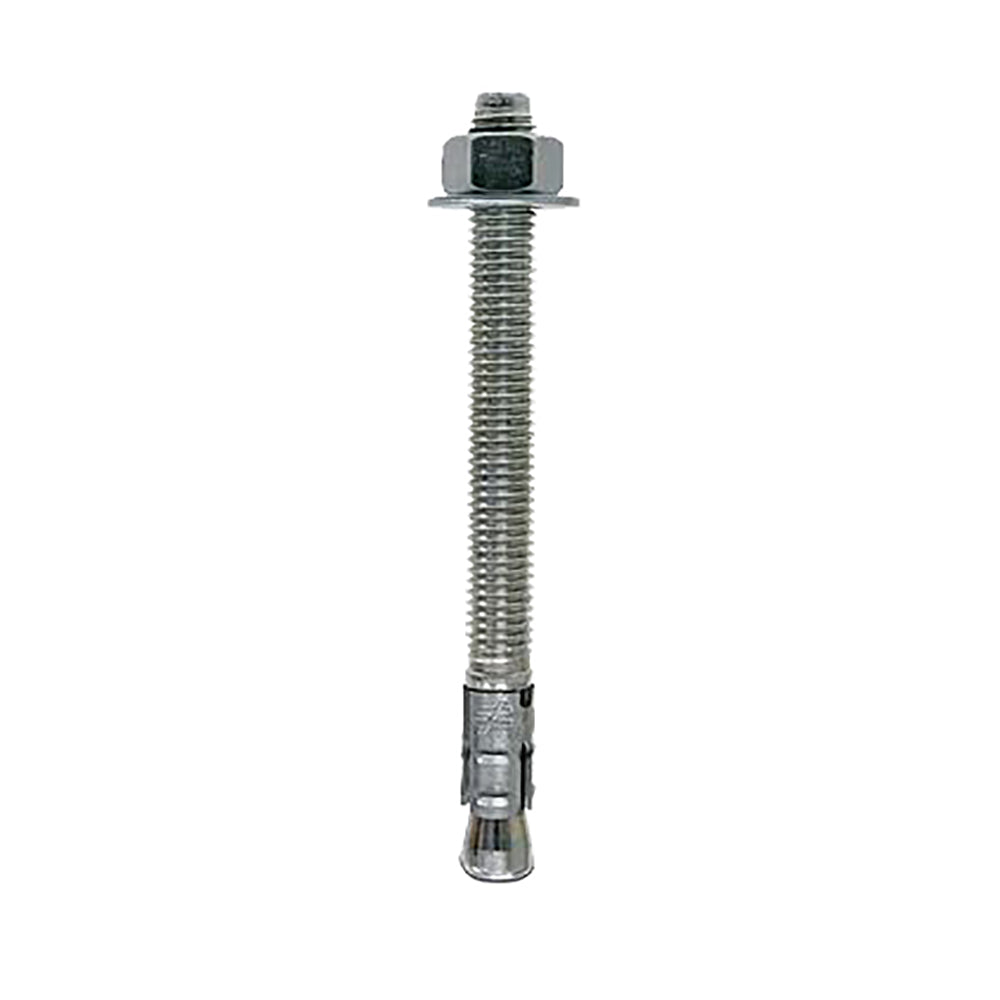

3/4 x 8-1/2 Strong Bolt 2 Wedge Style Expansion Anchor Zinc Plated Carbon Steel
Item K00.01.34.812
The Strong-Bolt® 2 Wedge Anchor is the next-generation solution for cracked and uncracked concrete. Following rigorous testing according to ICC-ES acceptance criteria the Strong-Bolt® 2 anchor received classification as a Category 1 anchor the highest attainable anchor category for performance in cracked concrete under static and seismic loading. It is code-listed by ICC-ES under the 2009 IBC requirements for post-installed anchors in cracked and uncracked concrete. Use hammer drill mansonry bits.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | 3/4 Inch |
| Drive Type | External Hex |
| Finish | Zinc |
| Length | 8-1/2 Inch |
| Material | Steel |
| Measurement | Inch |
| Thread Size | 3/4-10 |
Description
Description
The Strong-Bolt® 2 Wedge Anchor is the next-generation solution for cracked and uncracked concrete. Following rigorous testing according to ICC-ES acceptance criteria the Strong-Bolt® 2 anchor received classification as a Category 1 anchor the highest attainable anchor category for performance in cracked concrete under static and seismic loading. It is code-listed by ICC-ES under the 2009 IBC requirements for post-installed anchors in cracked and uncracked concrete. Use hammer drill mansonry bits.
- Material: Carbon-steel stud with special alloy clip
- Finish: Zinc-plated
- Tri-segmented clip: Each segment adjusts independently increasing follow-up expansion should the hole increase in size as a result of a crack.
- Dual embossments on each clip segment: Enables clip to undercut into the concrete thereby increasing follow-up expansion should a crack occur.
- Standard (ANSI) fractional anchor: Fits most fixtures and installs with common drill bit sizes and tools.
