• 3/8-16 x 1-1/2 Inch Coarse Zinc Plated Grade 2 Flat Head Elevator Bolt
1 2

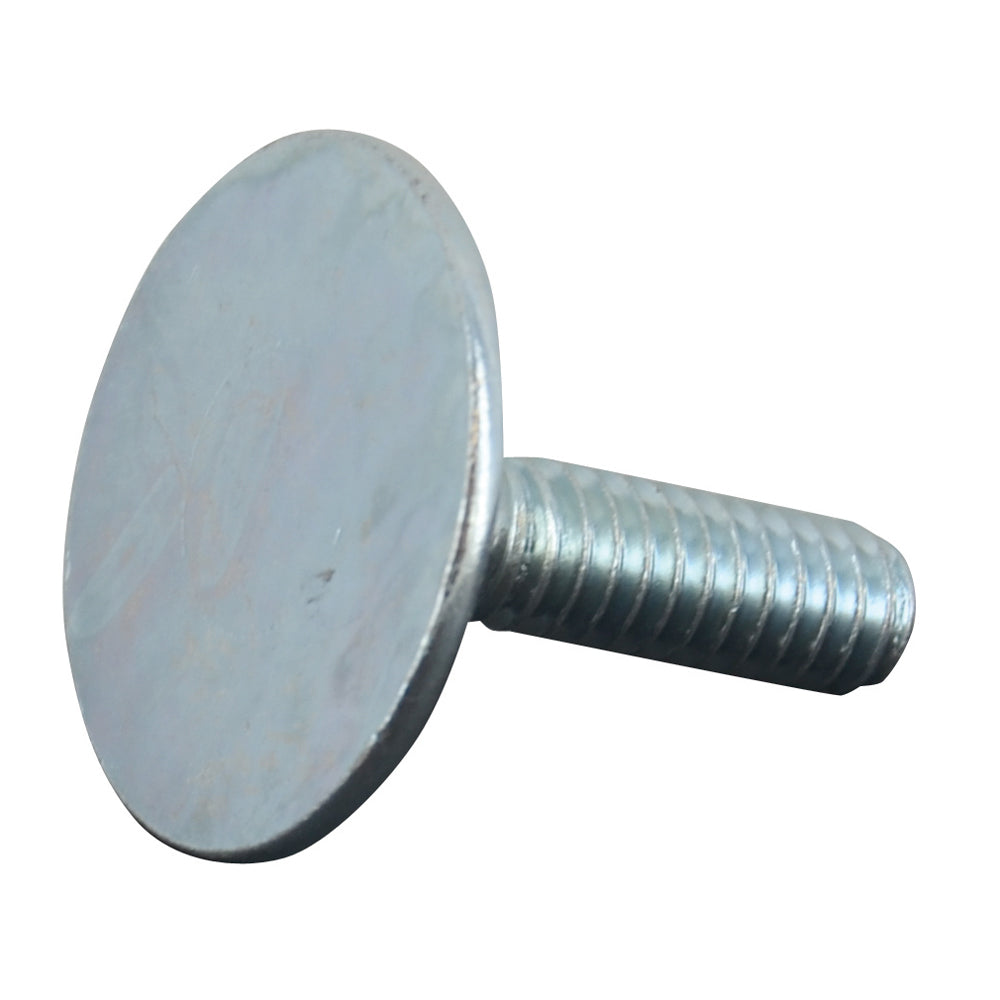

Photographs are representational and may not be size accurate.

OneSource

3/8-16 x 1-1/2 Inch Coarse Zinc Plated Grade 2 Flat Head Elevator Bolt

Item C37.38.112

$1.28
$1.28
/ Each

Please note that this product is sold in multiples of 1
Ships in 1 day
Free shipping

Free Shipping On All Orders Over $15

We Stand Behind Our Products

with our 100% quality assurance guarantee.

Description

Elevator bolts are threaded fasteners with a thin body and round head. These bolts may have either a square or ribbed neck to stop bolts from turning when a nut is tightened. They are used in tight spaces with moving parts such as in elevators and conveyor belts. With a thin head they fit flush against the connection surface and don’t interfere in small or confined operational systems.

  • Plating : Zinc
  • Material : Steel
  • ANSI B18.5Body Diameter: 0.360 - 0.388 Inch
  • Diameter: 3/8 Inch
  • Finish: Zinc
  • Flat on Minimum Diameter Head: 0.040 Inch
  • Grade: 2
  • Head Diameter: 1.312 - 1.352 Inch
  • Head Diameter Max: 1.352
  • Head Height: 0.125 - 0.145 Inch
  • Head Height Max: .040
  • Head Style: Flat - Countersunk
  • Industry Standard: ASME/ANSI B18.5
  • Item: Elevator Bolt
  • Length: 1-1/2 Inch
  • Material: Low Carbon Steel
  • Measurement: Inch
  • Origin: Imported
  • Specification: ASME/ANSI B18.5 SAE J429
  • Square Depth: 0.219 - 0.250 Inch
  • Square Width: 0.368 - 0.405 Inch
  • Thread Length: 1 Inch
  • Thread Type: Coarse
  • Threads Per Inch: 16
  • Type: Partial Threaded

Photographs are representational and may not be size accurate.
