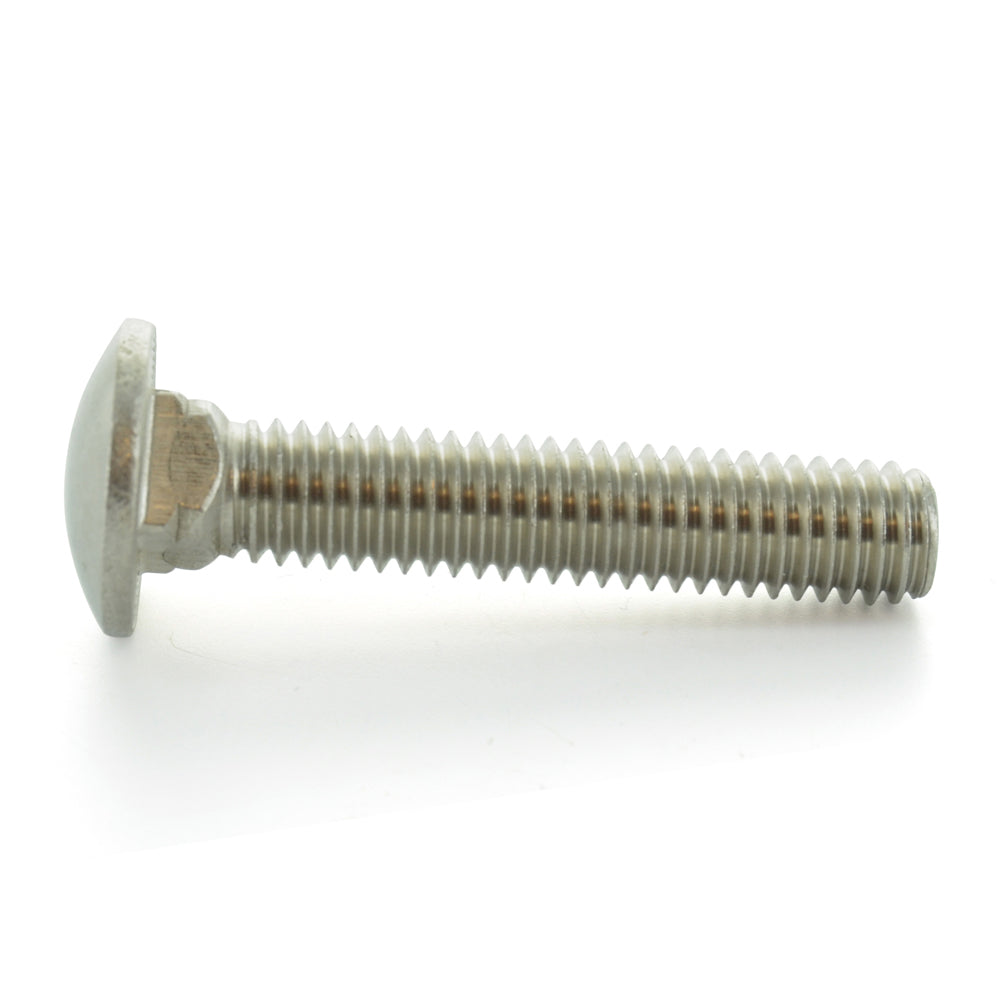

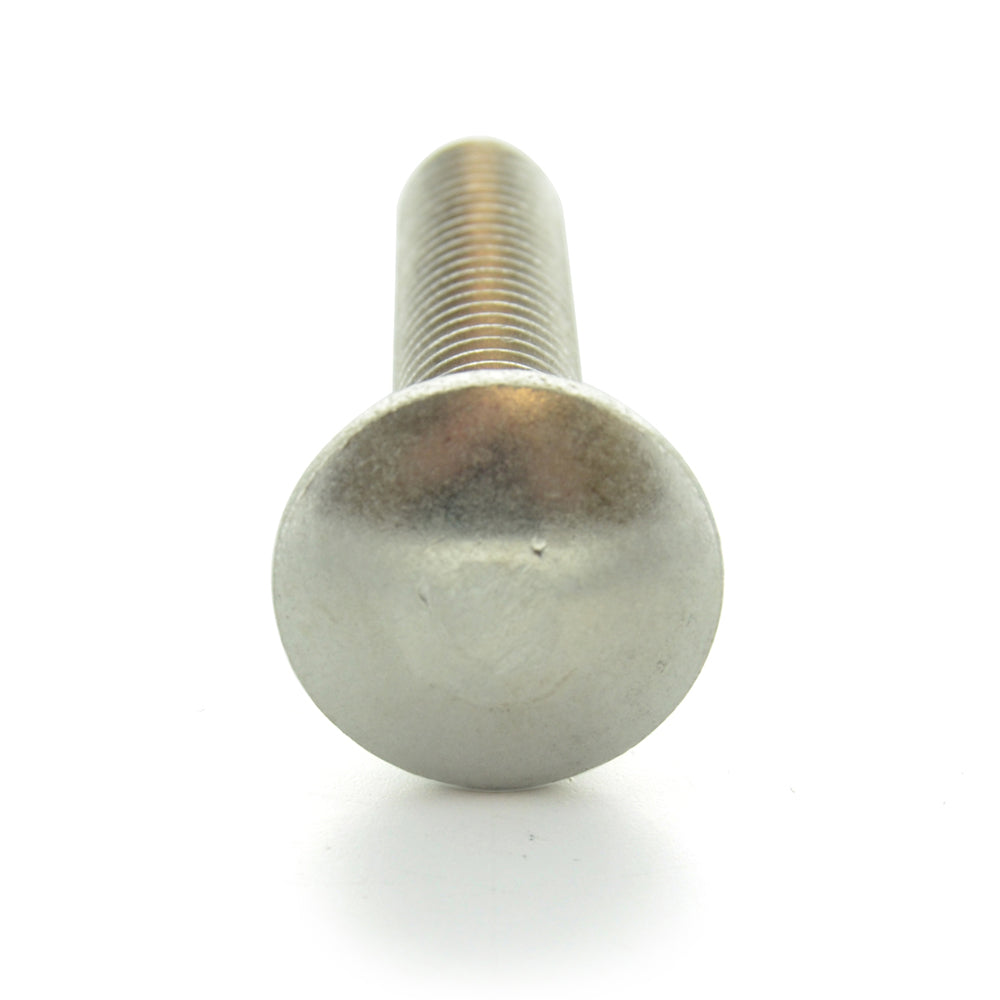

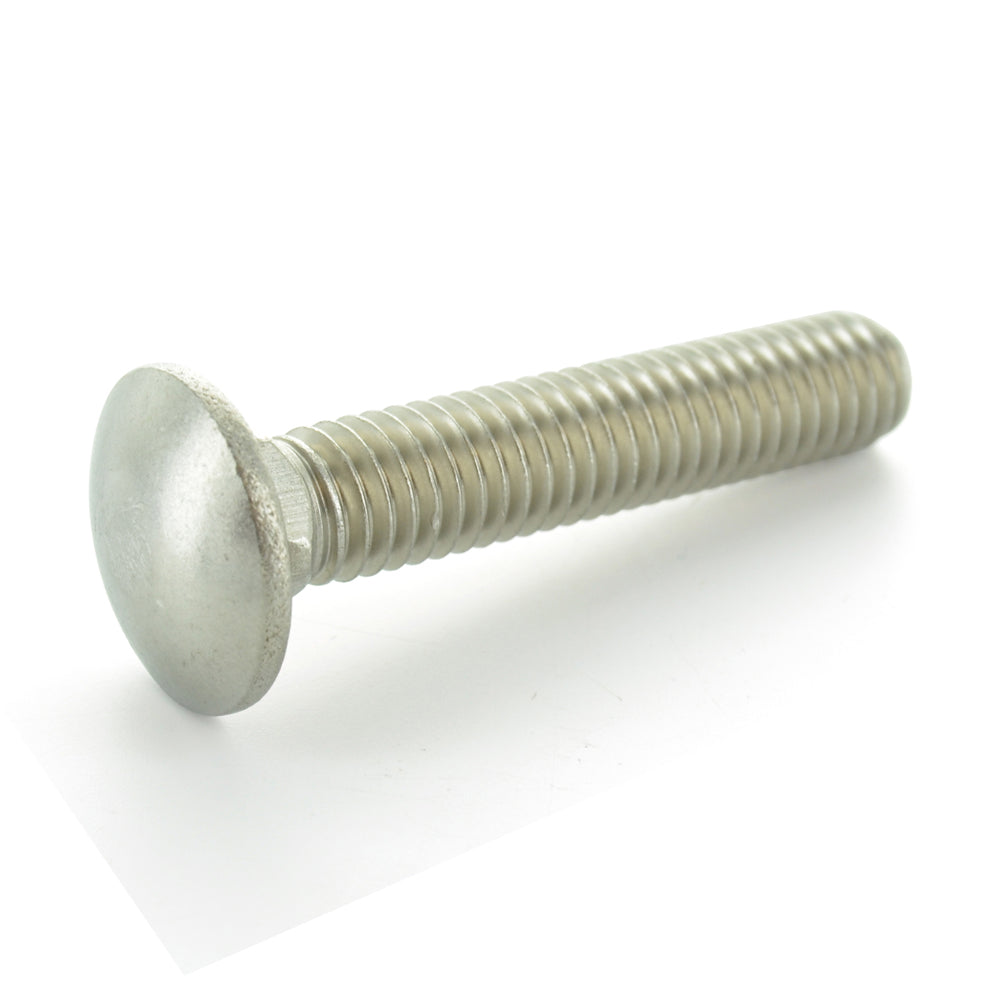

Photographs are representational and may not be size accurate.

OneSource

3/8-16 x 1-3/4 Inch Coarse Plain 18-8 Stainless Steel Round Head Carriage Bolt

Item C39.38.134

Body Diameter: 0.329 - 0.388 Inch

$1.44
$1.44
/ Each

Please note that this product is sold in multiples of 1
Ships in 1 day
Free shipping

Free Shipping On All Orders Over $15

We Stand Behind Our Products

with our 100% quality assurance guarantee.

Photographs are representational and may not be size accurate.

Key Specifications

Diameter 3/8 Inch
Head Style Round
Length 1-3/4 Inch
Material 18-8 Stainless Steel
Measurement Inch
Thread Type Coarse

Description

Body Diameter: 0.329 - 0.388 Inch

  • Origin: Imported
  • Also know as a coach bolt or round head square neck bolt carriage bolts are intended for use through iron strengthening plates on either side of a wooden beam
  • It is commonplace to use them into bare timber
  • Carriage bolts have a squared section under their round head that grip to prevent rotation
  • Diameter: 3/8 Inch
  • Finish: Plain
  • Grade: 18-8
  • Head Diameter: 0.782 - 0.844 Inch
  • Head Height: 0.188 - 0.208 Inch
  • Head Height Max: .2080Square Width Max
  • Head Style: Round
  • Item: Carriage Bolt
  • Length: 1-3/4 Inch
  • Material: 18-8 (A2) Stainless Steel
  • Measurement: Inch
  • Origin: Imported
  • Specification: ASME/ANSI B18.5 ASTM F593
  • Square Depth: 0.188 - 0.219 Inch
  • Square Width: 0.368 - 0.388 Inch
  • Tensile Strength : 100000 psi
  • Thread Length: 1-3/4 Inch
  • Thread Type: Coarse
  • Threads Per Inch: 16
  • Type: Full Threaded
