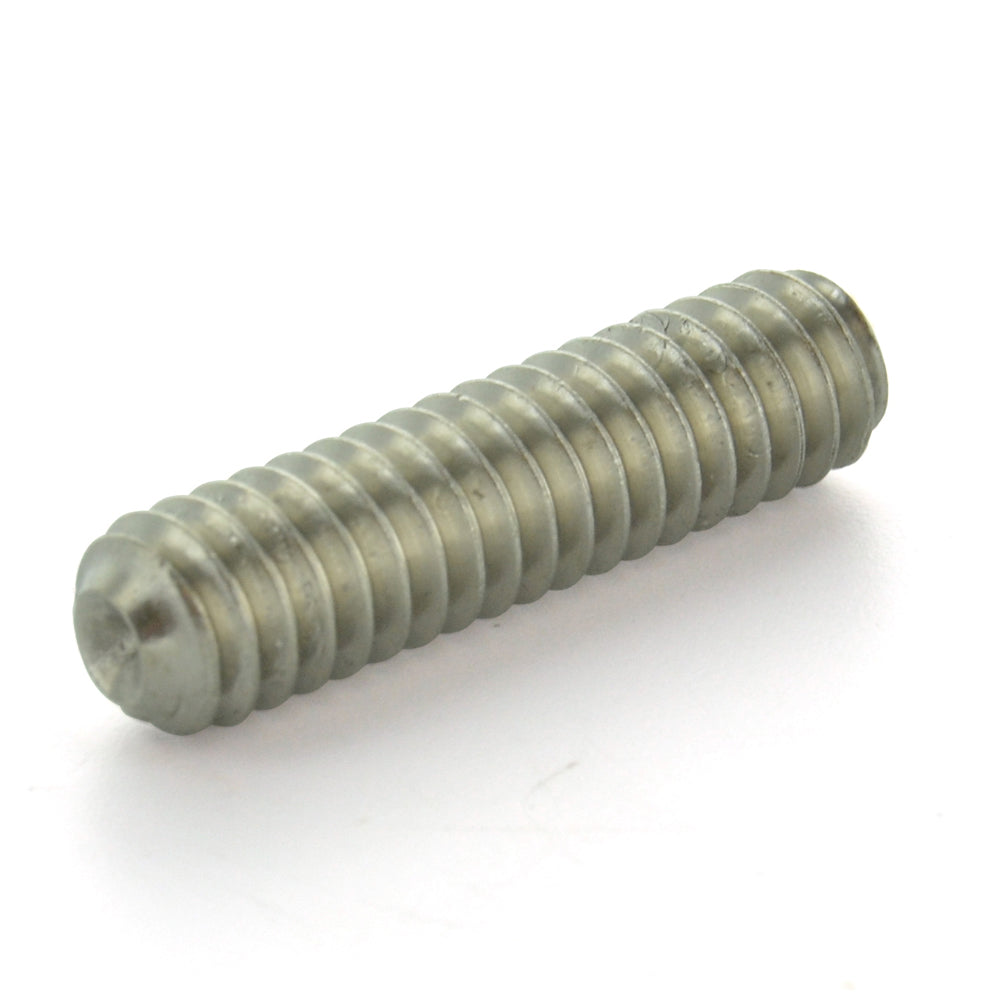

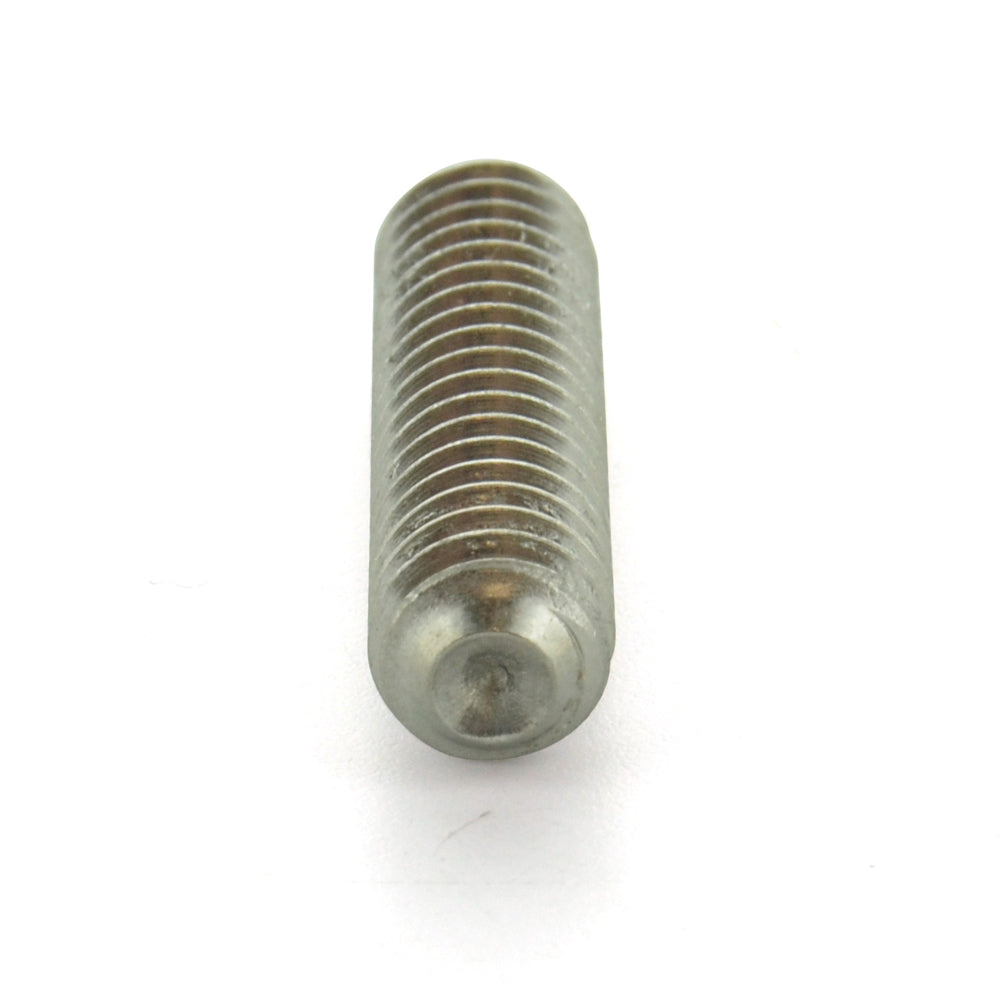

3/8-24 x 1/4 Inch Fine Plain 18-8 (A2) Stainless Steel Cup Point Socket Head Set Screw
Item B28.3824.14
Cup point set screws feature a hex drive at one end and a cup-shaped indentation at the other. The most commonly used set screw head style the thin edge of the cup end digs into the contact surface for high holding power. It is useful for fast permanent and semi-permanent placement in applications where some indentation left by the cup end is acceptable.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | 3/8 Inch |
| Length | 1/4 Inch |
| Thread Type | Fine |
| Drive Type | Internal Hex |
| Material | Stainless Steel 18-8 (A2) |
| Point Type | Cup |
Description
Description
Cup point set screws feature a hex drive at one end and a cup-shaped indentation at the other. The most commonly used set screw head style the thin edge of the cup end digs into the contact surface for high holding power. It is useful for fast permanent and semi-permanent placement in applications where some indentation left by the cup end is acceptable.
- Origin: Imported
- Drive Size: 3/16 Inch
- Drive Type: Internal Hex
- Finish: Plain
- Grade: 18-8
- Head Style: Socket
- Industry Standard: ASME/ANSI B18.3
- Item: Set Screw
- Key Engagement: 0.188 Inch
- Length: 1/4 Inch
- Material: 18-8 (A2) Stainless Steel
- Measurement: Inch
- Origin: Imported
- Point Diameter: 0.194 - 0.212 Inch
- Point Type: Cup
- Specification: ASME/ANSI B18.3 ASTM F880
- Tensile Strength : 145000 psi
- Thread Type: Fine
- Threads Per Inch: 24
- Type: Full Threaded
Specifications
General
- Material
- Stainless Steel 18-8 (A2)
- Measurement System
- Inch
- Type
- Full Threaded
- Finish
- Plain
- Origin
- Imported
Dimensions
- Diameter
- 3/8 Inch
- Length
- 1/4 Inch
- Thread Type
- Fine
- Threads Per Inch
- 24
- Drive Size
- 3/16 Inch
- Point Diameter
- 0.194 – 0.212 Inch
- Key Engagement
- 0.188 Inch
Features
- Drive Type
- Internal Hex
- Point Type
- Cup
- Head Style
- Socket Cap
- Grade
- 18-8
- Tensile Strength
- 145,000 psi
Certifications & Standards
- Standards
- ASME/ANSI B18.3 - ASTM F880
