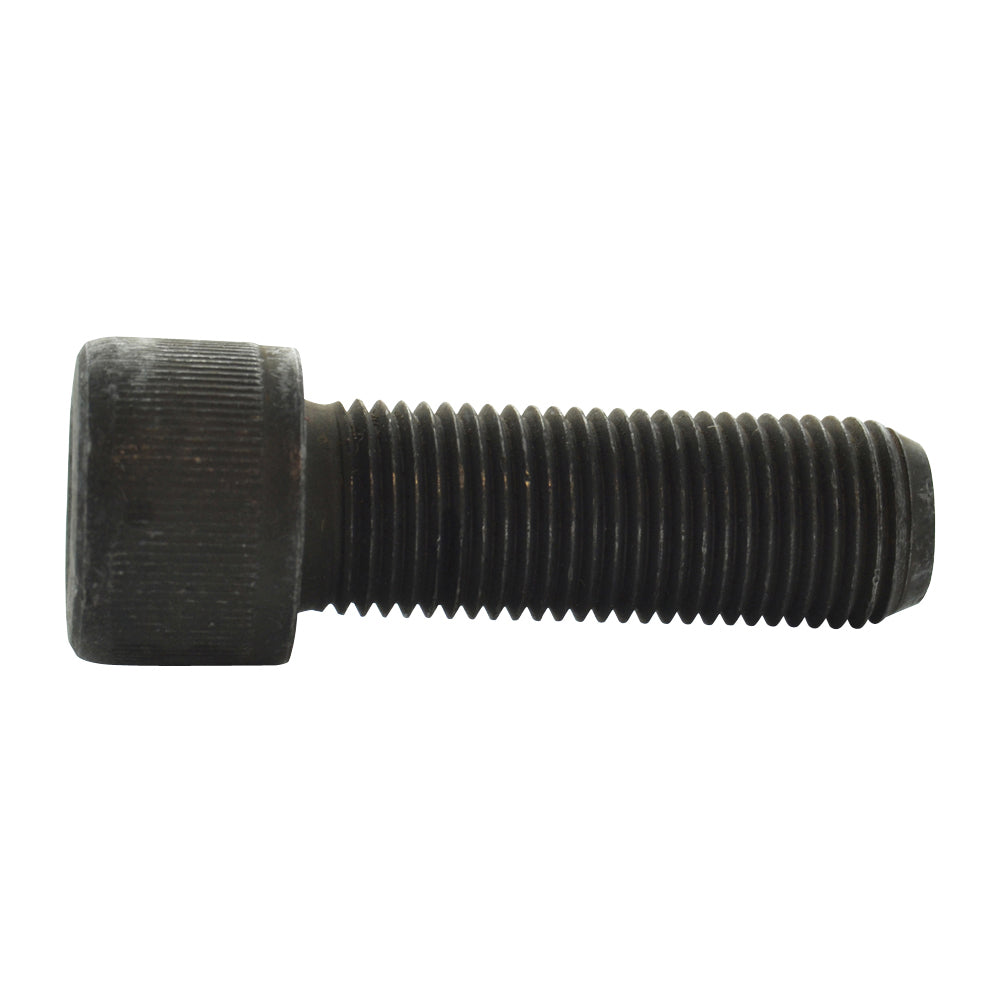

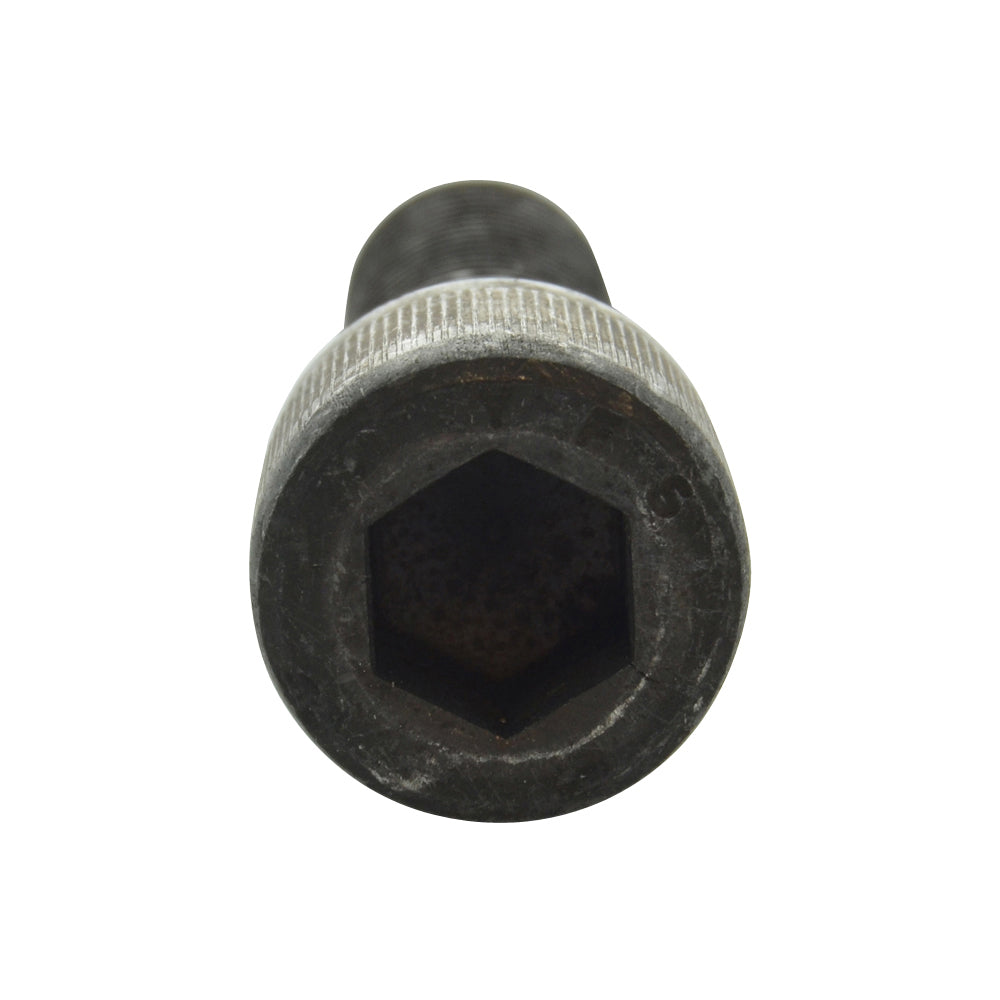

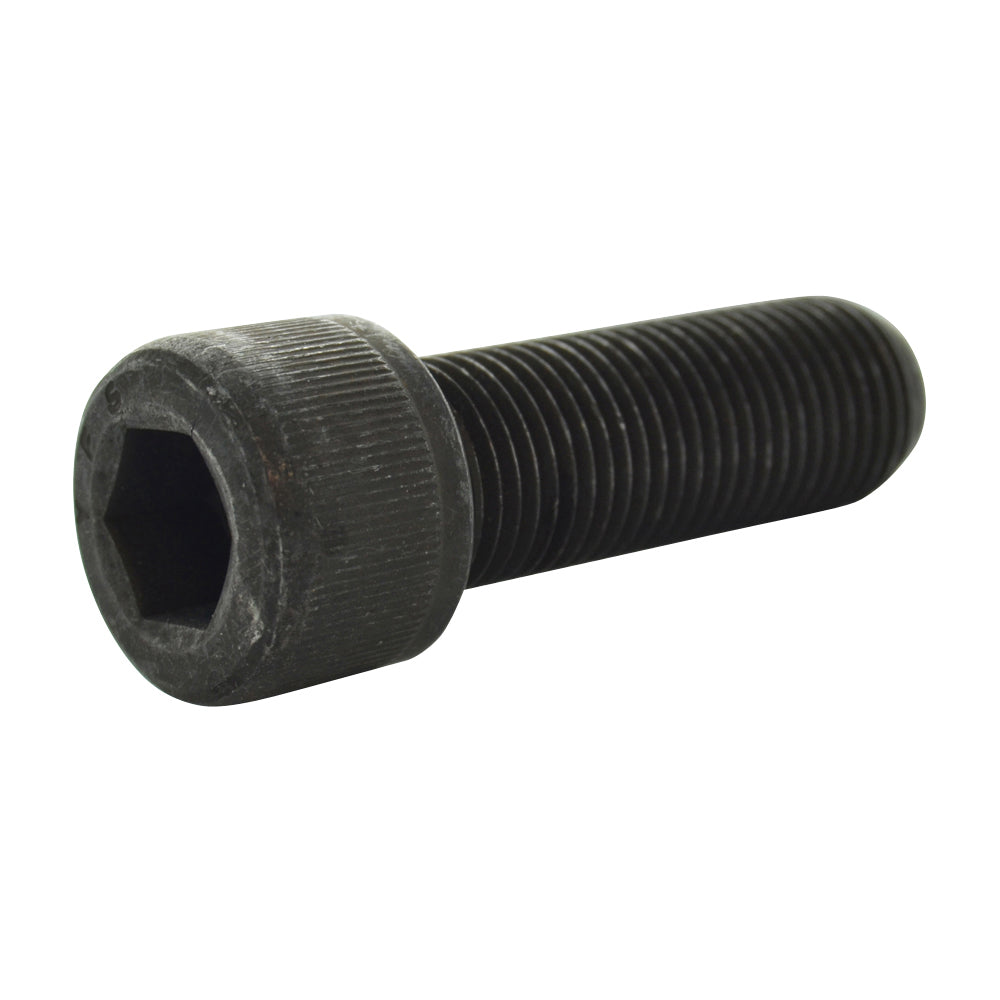

3/8-24 x 1 Inch Fine Black Oxide Heat-Treated Alloy Steel Socket Head Cap Screw
Item A90.38.1
Socket head cap screws are commonly used in machine assembly for removable panels and parts. They have a round cap with a hex head and are tightened with a socket wrench drive. Longer caps are easier to see when fastened while button and flat head caps are less likely to snag clothing or linkages. Cap screws with a black oxide or armor coat finish resist corrosion.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | 3/8 Inch |
| Length | 1 Inch |
| Thread Type | Fine |
| Head Style | Socket Cap |
| Drive Type | Internal Hex |
| Finish | Black Oxide |
Description
Description
Socket head cap screws are commonly used in machine assembly for removable panels and parts. They have a round cap with a hex head and are tightened with a socket wrench drive. Longer caps are easier to see when fastened while button and flat head caps are less likely to snag clothing or linkages. Cap screws with a black oxide or armor coat finish resist corrosion.
- Origin: Imported
- Drive Type: Internal Hex
- Finish: Black Oxide
- Head Diameter: 0.550 - 0.562 Inch
- Head Height: 0.368 - 0.375 Inch
- Head Style: Socket
- Industry Standard: ASME/ANSI B18.3
- Item: Socket Cap Screw
- Key Size: 5/16 Inch
- Length: 1 Inch
- Material: Heat-Treated Alloy Steel
- Measurement: Inch
- Origin: Imported
- Specification: ASME/ANSI B18.3 ASTM A574
- Tensile Strength : 180000 psi
- Thread Length: 1 Inch
- Thread Type: Fine
- Threads Per Inch: 24
- Type: Full Threaded
Specifications
General
- Finish
- Black Oxide
- Measurement System
- Inch
- Origin
- Imported
- Type
- Full Threaded
- Material
- Heat-Treated Alloy Steel
Dimensions
- Diameter
- 3/8 Inch
- Length
- 1 Inch
- Thread Type
- Fine
- Threads Per Inch
- 24
- Thread Length
- 1 Inch
- Head Diameter
- 0.550 – 0.562 Inch
- Head Height
- 0.368 – 0.375 Inch
- Key Size
- 5/16 Inch
Features
- Drive Type
- Internal Hex
- Head Style
- Socket Cap
- Tensile Strength
- 180,000 psi
Certifications & Standards
- Standards
- ASME/ANSI B18.3 - ASTM A574
