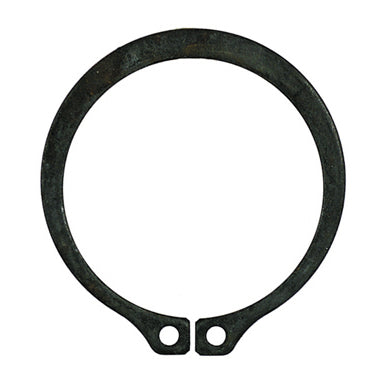

3/8 Inch Black Phosphate Carbon Spring Steel External Snap Ring
Item E36.38
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
From cap screws to hitch pins we are a master distributor for fasteners of all types. Available in inch and metric sizes we are your single source solution. Additionally we offer both domestic and imported options for most fastener types.
- Plating; Phosphate
- Material: Carbon Spring SteelAllowable Corner Chamfers: 0.016 Inch
- Allowable Corner Radii: 0.026 Inch
- Clearance Diameter Released in Groove: 0.590 Inch
- Edge Margin: 0.036 Inch
- Finish: Black Phosphate
- Gaging Diameter: 0.433 Inch
- Groove Depth: 0.012 Inch
- Groove Diameter: 0.352 Inch
- Groove Diameter to Shaft Concentricity: 0.002 Inch
- Groove Diameter Tolerance: +/-0.002
- Groove Width: 0.029 Inch
- Groove Width Tolerance: +0.003/-0.000
- Hardness: HR30N 69.5-73
- Hole Diameter: 0.041 Inch
- Hole Diameter Tolerance: +0.010/-0.002
- Item: External Snap Ring
- Lug Height: 0.088 Inch
- Lug Height Tolerance: +/-0.003
- Material: Carbon Spring Steel
- Maximum Section: 0.050 Inch
- Maximum Section Tolerance: +/-0.003
- Measurement: Inch
- Minimum Section: 0.031 Inch
- Minimum Section Tolerance: +/-0.003
- Radial Wall Thickness: 0.030 - 0.050 Inch
- Ring Free Diameter: 0.338 Inch
- Ring Free Diameter Tolerance: +0.002/-0.005
- RPM Limits: 60000 RPM
- Shaft Diameter: 3/8 Inch
- Thickness: 0.025 Inch
- Thickness Tolerance: +/-0.002
- Type: Stamped Standard Duty
