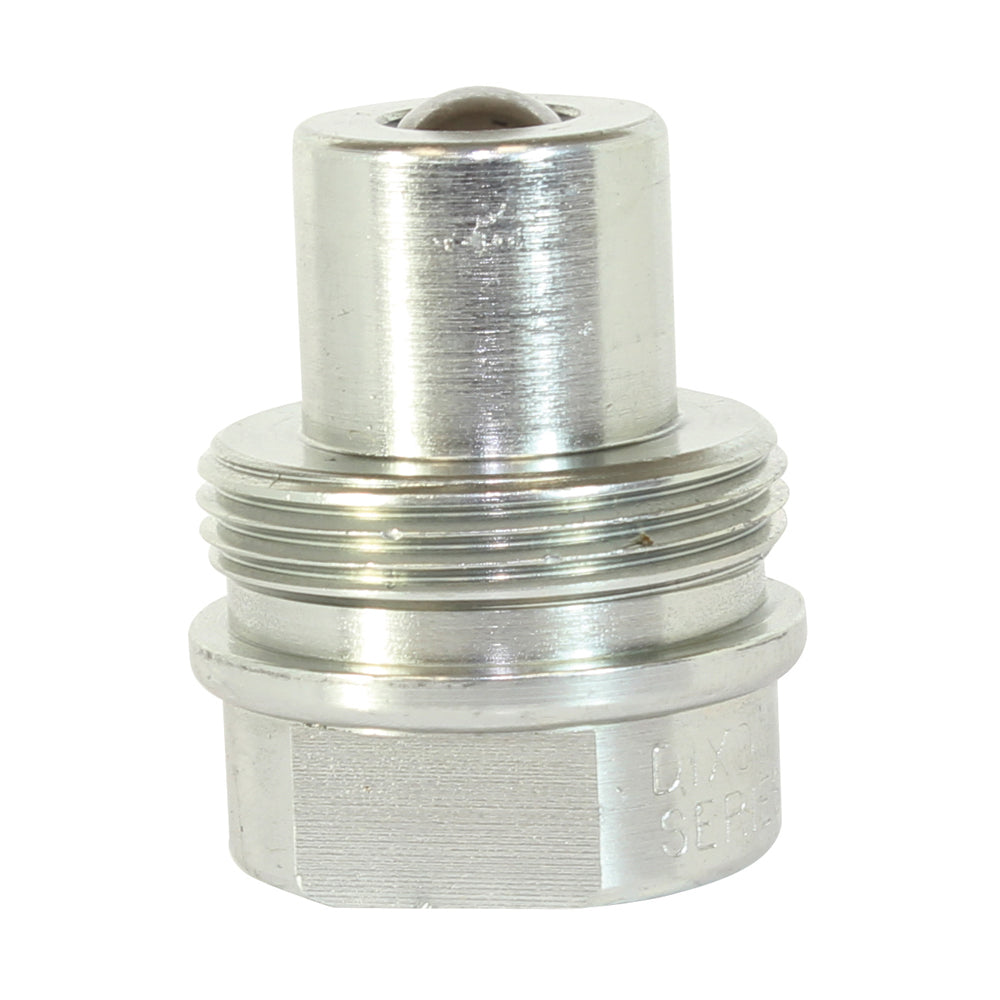

3/8 Inch Body X 3/8-18 Inch Female Pipe T-Series (Enerpac) Steel High Pressure Ball Style Hydraulic Service Plug
Item G88.460.6
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
Designed for high pressure applications including hydraulic rams and pumps where low flow and pressures up to 10 000 PSI are encountered. Hydraulic tools jacks hand pumps fire rescue tools crimping bolting and power units.
- Applications
- • Hydraulic tools jacks hand pumps fire rescue tools crimping
- bolting and power units
- Industries
- • Construction oil and gas fire and rescue utilities mining
- and manufacturing
- Market Buzz Words
- • Porta power jack hose and high-torque
- Interchange Data
- • 10 000 PSI thread-together interchange ISO 14540
- • Interchangeable with Parker 3000-Series Enerpac C604 Stucchi IVHP Hansen WS56000 DNP PVM
- Sizes
- • Body: 1/4″ and 3/8″
- Features
- • Chrome steel ball valve is mechanically seated to improve
- pressure sealing performance
- • Replacement O-ring and back up ring kit available
- Material
- • Nitrile O-ring with TPC-ET back-up ring
- • Available in steel and 316 stainless steel
- • Steel componentry is plated using RoHS-compliant trivalent chrome enhances corrosion resistance
- Specifications
- • Maximum working pressure: 10 000 PSI
- • Ball valve and poppet valve options
- • NPTF male and female threads available
Photographs are representational and may not be size accurate.
Key Specifications
| Connection Type | FNPT |
| Pipe Size | 3/8 Inch |
| Material | Steel |
