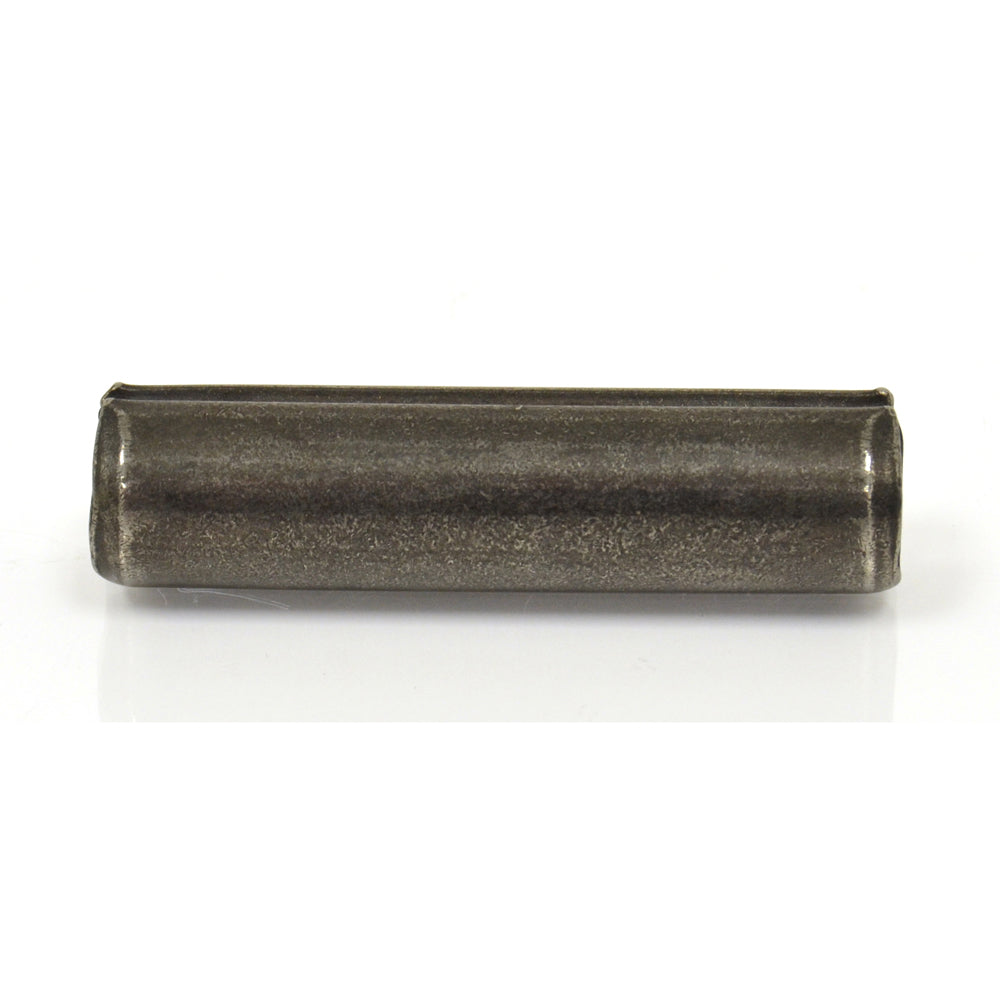

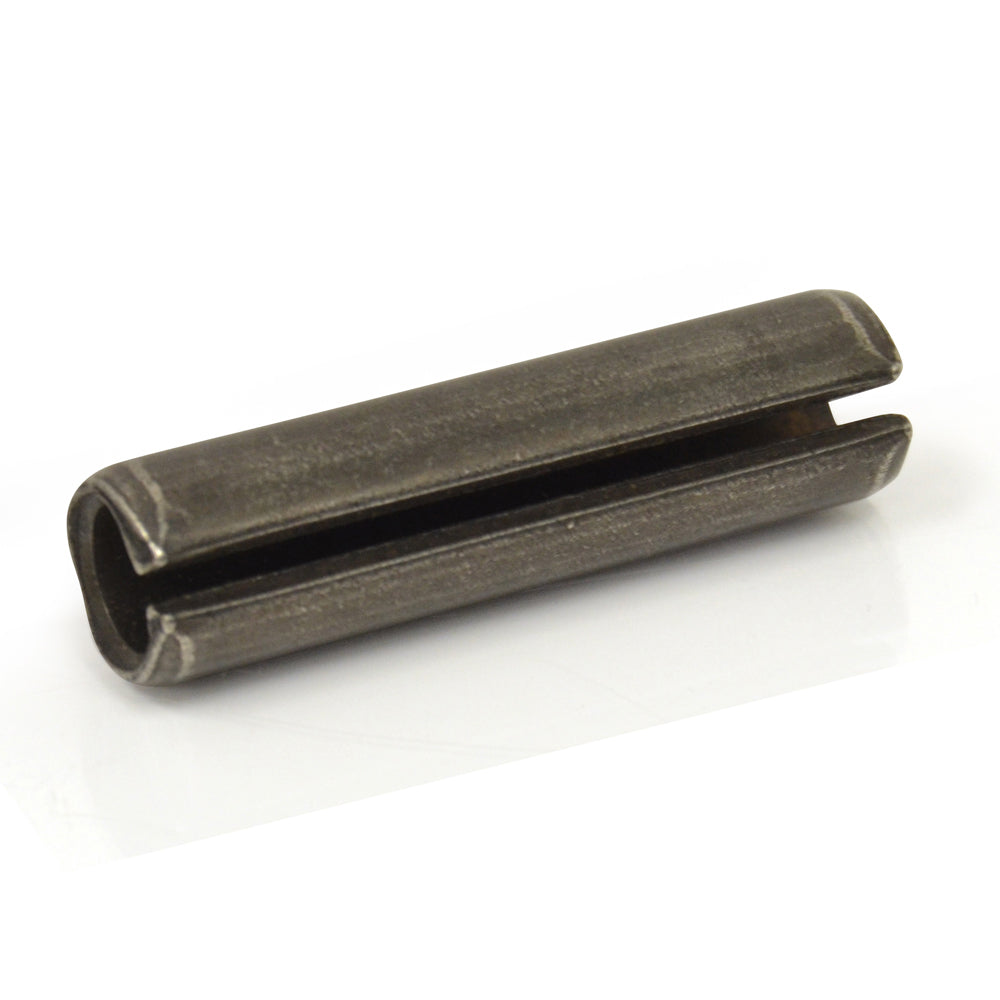

3/8 Inch X 1-1/4 Inch Plain Spring Steel Split Spring Pin
Item E76.1.38.114
A spring pin is a hollow split dowel pin that exerts uniform outward pressure when fitted into a nut or shaft hole. Also called a roll pin the spring pin withstands side loads and rotational friction making it ideal for securing shaft and axle connections. Spring pins are also easy to insert and remove. For higher load applications where vibration and shocks are a problem use a coiled spring pin.
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Photographs are representational and may not be size accurate.
Key Specifications
| Diameter | 3/8 Inch |
| Finish | Plain |
| Length | 1-1/4 Inch |
| Material | Spring Steel |
| Measurement | Inch |
| Retainer Type | Split Spring/Roll Pin |
Description
Description
A spring pin is a hollow split dowel pin that exerts uniform outward pressure when fitted into a nut or shaft hole. Also called a roll pin the spring pin withstands side loads and rotational friction making it ideal for securing shaft and axle connections. Spring pins are also easy to insert and remove. For higher load applications where vibration and shocks are a problem use a coiled spring pin.
- Plating: Unplated
- Material: SAE 1070 - 1095 Carbon Steel
- ANSI B18.18.1Diameter: 3/8 Inch
- Dimensional Standard: ANSI 18.18.1 1978
- Finish: Plain
- Item: Split Spring Pin
- Length: 1-1/4 Inch
- Material: Spring Steel
