Photographs are representational and may not be size accurate.
OneSource

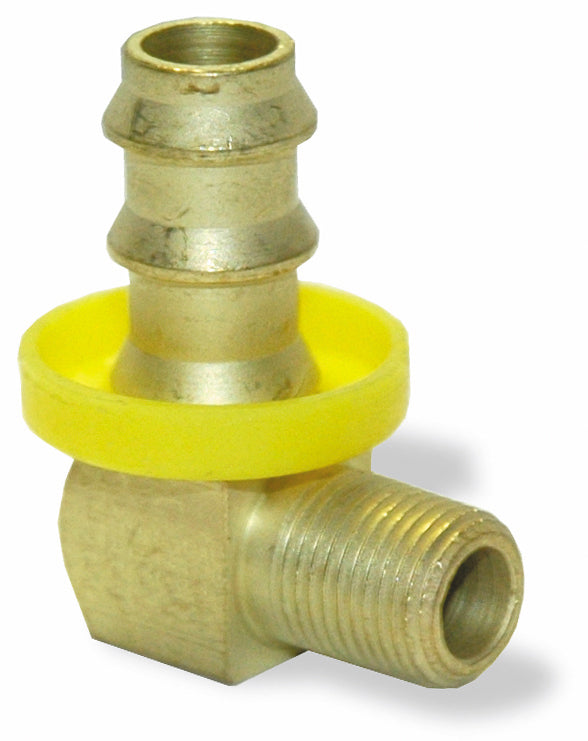

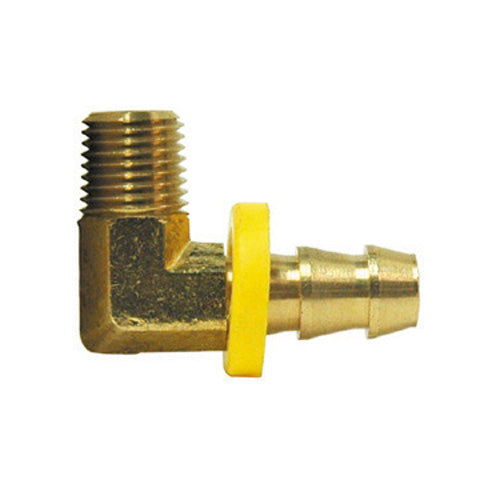

3/8 Inch X 1/4 Inch MPT X Barb Hose CA360 Brass Barb-Tite 90 Degree Male Pipe Rigid Elbow
Item G77.044.64
The Barb-Tite hose fittings are made of brass and can easily be assembled with no clamps needed.
Delivering to
Estimated delivery: 3–7 business days
Order by 2pm CT
Couldn't load pickup availability
-
Free Shipping for All Orders Above $15
Receive free standard ground shipping on single orders totaling $15 or more, after discounts are applied and before taxes.
This offer is only valid in the continental United States.
Excludes expedited shipping methods and orders shipped outside the continental U.S.
-
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of thirty (30) days from the date of delivery.
It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged.
Refunds will be issued in the form of an account credit or back to the original payment method.
-
Expert Customer Support
Our experts can help. Our experienced sales and support professionals are dedicated to helping you find the right parts for your projects.
Photographs are representational and may not be size accurate.
Key Specifications
| Material | Brass |
| Pipe Size | 1/4 Inch |
| Inside Diameter | 3/8 Inch |
Description
Description
The Barb-Tite hose fittings are made of brass and can easily be assembled with no clamps needed.
- Assembly Instructions: 1. Lubricate insert with a tire installation lube (optional step). 2. Hold the hose at an angle as shown and push on and up over the first barb. 3. Continue to push straight on until the hose is seated under the protective plastic cap. Keep hands back from the hose end area so that hose can expand or use the handy Barb-Tite assembly tool!
- Disassembly Instructions: 1. Split hose as shown above. Do not cut completely through the hose. The sealing edge of the barb could be damaged. 2. Bend hose and remove with a quick pull
Specifications
General
- Material
- Brass
Dimensions
- Pipe Size
- 1/4 Inch
- Inside Diameter
- 3/8 Inch
