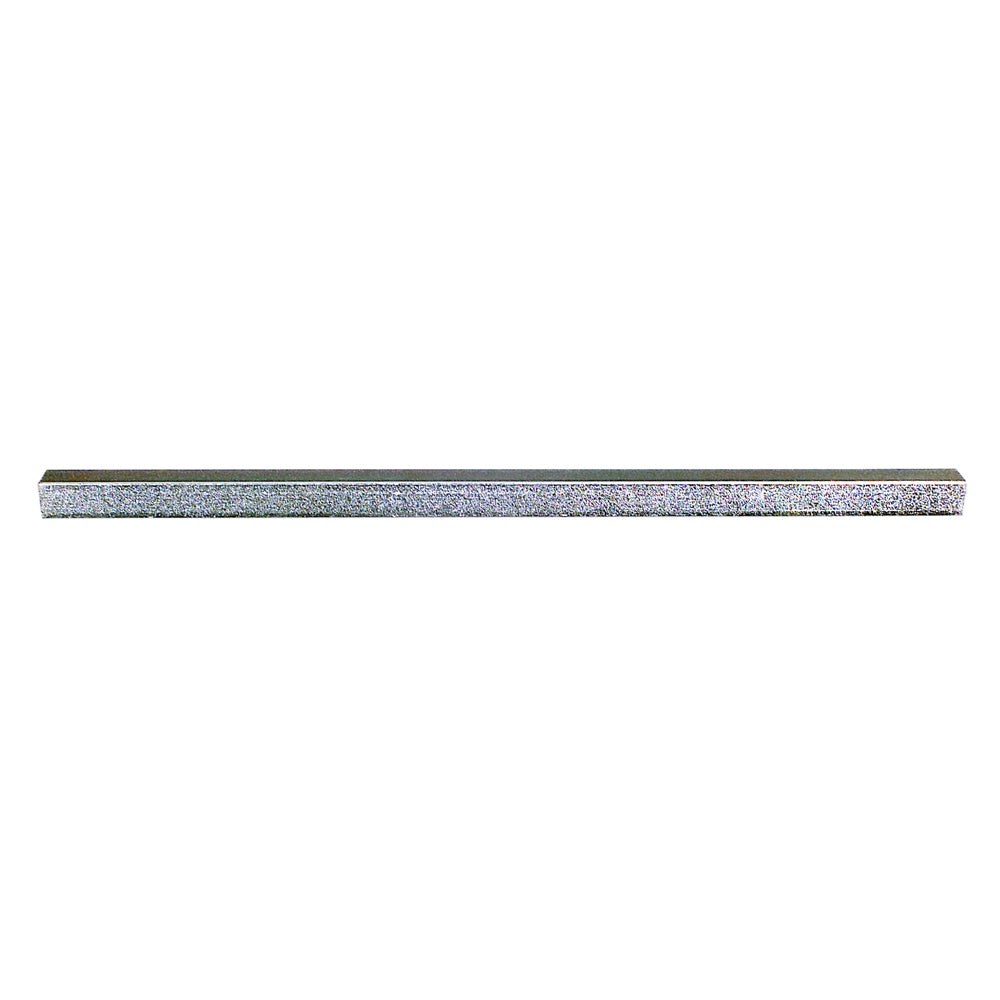

3/8 Inch X 3/8 Inch X 2.5 Inch Zinc Clear Cold Finished Carbon Steel Undersize Square Machine Key
Item E78.38.38.212
Not available to purchase
Couldn't load pickup availability
Free Shipping On All Orders Over $15
We Stand Behind Our Products
with our 100% quality assurance guarantee.
Quality Assurance Guarantee
OneSource warrants that products delivered by OneSource to customers will be free from defects in material or workmanship under normal use for a period of ninety (90) days from the date of delivery. It is the responsibility of the customer to return defective products within the warranty period. If OneSource determines that the products returned for warranty refund are not defective within the terms of the warranty, the purchaser shall be responsible for all handling and transportation costs.
If an item is returned as defective and it is determined that the product is not, a restocking fee may be charged. Refunds will be issued in the form of an account credit or back to the original payment method.
Description
Description
Key stock is a small metal block or wedge inserted between a shaft and the hub of a pulley gear sprocket or other rotating power device. It provides driving torque and prevents movement. One part of the key fits into a precut slot in the shaft known as a key seat. The remainder slides into a groove in the hub called a keyway. Woodruff keys are flat semicircular keys that rock into place and adjust to an angular spine without coming unseated. Machine keys are elongated with either rounded ends square ends or tapered gib heads. Step keys also known as offset keys are precision-milled with steps notched at regular intervals for repairing sprockets gears and pulleys.
- Hardness RB 50 min.
- A stock of material that is one foot or greater in length and from which shaft keys are made
- Finish: Zinc
- Height: 3/8 Inch
- Height Maximum: 0.3750 Inch
- Height Minimum: 0.3730 Inch
- Industry Standard: ASME/ANSI B17.1
- Item: Square Machine key
- Length: 2.5 inch
- Material: Cold Finished Carbon Steel
- Measurement: Inch
- Origin: Domestic
- Specification: ASME/ANSI B17.1
- Type: Undersize
- Width: 3/8 Inch
- Width Maximum: 0.3750 Inch
- Width Minimum: 0.3730 Inch
